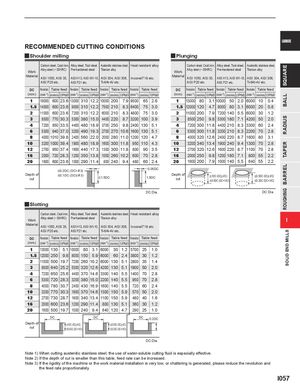

SQUAREBALLRADIUSTAPERBARRELROUGHINGSOLID END MILLS CARBIDE RECOMMENDED CUTTING CONDITIONS Shoulder milling Plunging Carbon steel, Cast iron, Alloy steel, Tool steel, Austenitic stainless steel, Heat resistant alloy Carbon steel, Cast iron, Alloy steel, Tool steel, Austenitic stainless steel, Work Alloy steel (─30HRC) Pre-hardened steel Titanium alloy Work Alloy steel (─30HRC) Pre-hardened steel Titanium alloy Material AISI 1050, AISI 35, AISI H13, AISI W1-10, AISI 304, AISI 306, Inconel718 etc. Material AISI 1050, AISI 35, AISI H13, AISI W1-10, AISI 304, AISI 306, AISI P20 etc. AISI P21 etc. Ti-6Al-4V etc. AISI P20 etc. AISI P21 etc. Ti-6Al-4V etc. DC Revolution Table feed Revolution Table feed Revolution Table feed Revolution Table feed DC Revolution Table feed Revolution Table feed Revolution Table feed (mm) (min-1) (mm/min) (IPM) (min-1) (mm/min) (IPM) (min-1) (mm/min) (IPM) (min-1) (mm/min) (IPM) (mm) (min-1) (mm/min) (IPM) (min-1) (mm/min) (IPM) (min-1) (mm/min) (IPM) 1 19000 600 23.6 13000 310 12.2 10000 200 7.9 9500 65 2.6 1 13000 80 3.1 10000 50 2.0 6000 10 0.4 1.5 14000 600 23.6 9000 310 12.2 7500 210 8.3 6400 75 3.0 1.5 12000 120 4.7 8000 80 3.1 6000 20 0.8 2 11000 600 23.6 7200 310 12.2 6000 210 8.3 4800 75 3.0 2 11000 200 7.9 7200 140 5.5 6000 30 1.2 3 8500 770 30.3 5300 380 15.0 4400 220 8.7 3200 100 3.9 3 8500 250 9.8 5300 180 7.1 4200 50 2.0 4 7200 850 33.5 4400 480 18.9 3700 250 9.8 2400 130 5.1 4 7200 300 11.8 4400 210 8.3 3300 60 2.4 6 5300 940 37.0 3200 490 19.3 2700 270 10.6 1600 130 5.1 6 5300 300 11.8 3200 210 8.3 2200 70 2.8 8 4000 1010 39.8 2400 560 22.0 2000 280 11.0 1200 120 4.7 8 4000 320 12.6 2400 220 8.7 1600 80 3.1 10 3200 1000 39.4 1900 480 18.9 1600 300 11.8 950 110 4.3 10 3200 340 13.4 1900 240 9.4 1300 70 2.8 12 2700 950 37.4 1600 440 17.3 1300 300 11.8 800 90 3.5 12 2700 320 12.6 1600 220 8.7 1100 70 2.8 16 2000 720 28.3 1200 350 13.8 1000 260 10.2 600 70 2.8 16 2000 250 9.8 1200 180 7.1 800 55 2.2 20 1600 600 23.6 1000 290 11.4 800 240 9.4 480 60 2.4 20 1600 200 7.9 1000 140 5.5 640 55 2.2 <0.2DC (DC> & 3) 0.05DC Depth ofcut <0.1DC (DC< & 3) <1.5DC Depth of1.5DCcut <1DC (DC>&2)<0.5DC (DC<&2) <0.5DC (DC>&2)<0.2DC (DC<&2) DC:Dia. DC:Dia. Slotting Carbon steel, Cast iron, Alloy steel, Tool steel, Austenitic stainless steel, Heat resistant alloy Work Alloy steel (─30HRC) Pre-hardened steel Titanium alloy I Material AISI 1050, AISI 35, AISI H13, AISI W1-10, AISI 304, AISI 306, Inconel718 etc. AISI P20 etc. AISI P21 etc. Ti-6Al-4V etc. DC Revolution Table feed Revolution Table feed Revolution Table feed Revolution Table feed (mm) (min-1) (mm/min) (IPM) (min-1) (mm/min) (IPM) (min-1) (mm/min) (IPM) (min-1) (mm/min) (IPM) 1 13000 130 5.1 10000 80 3.1 6000 30 1.2 5700 25 1.0 1.5 12000 250 9.8 8000 150 5.9 6000 60 2.4 3800 30 1.2 2 11000 500 19.7 7200 260 10.2 6000 130 5.1 2800 35 1.4 3 8500 640 25.2 5300 320 12.6 4200 130 5.1 1900 50 2.0 4 7200 650 25.6 4400 370 14.6 3300 140 5.5 1400 70 2.8 6 5300 720 28.3 3200 380 15.0 2200 140 5.5 950 70 2.8 8 4000 780 30.7 2400 430 16.9 1600 140 5.5 720 60 2.4 10 3200 770 30.3 1900 370 14.6 1300 150 5.9 570 50 2.0 12 2700 730 28.7 1600 340 13.4 1100 150 5.9 480 40 1.6 16 2000 600 23.6 1200 290 11.4 800 130 5.1 360 30 1.2 20 1600 500 19.7 1000 240 9.4 640 120 4.7 290 25 1.0 DC DC DC 0.2DC Depth of <1DC (DC>&2) <0.5DC (DC>&2) cut <0.5DC (DC<&2) <0.2DC (DC<&2) DC:Dia. Note 1) When cutting austenitic stainless steel, the use of water-soluble cutting fluid is especially effective. Note 2) If the depth of cut is smaller than this table, feed rate can be increased. Note 3) If the rigidity of the machine or the work material installation is very low, or chattering is generated, please reduce the revolution and the feed rate proportionately. I057
