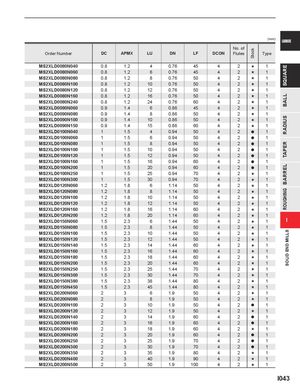

Stock SQUAREBALLRADIUSTAPERBARRELROUGHINGSOLID END MILLS (mm) CARBIDE No. of Order Number DC APMX LU DN LF DCON Flutes Type MS2XLD0080N040 0.8 1.2 4 0.76 45 4 2 s 1 MS2XLD0080N060 0.8 1.2 6 0.76 45 4 2 s 1 MS2XLD0080N080 0.8 1.2 8 0.76 50 4 2 s 1 MS2XLD0080N100 0.8 1.2 10 0.76 50 4 2 s 1 MS2XLD0080N120 0.8 1.2 12 0.76 50 4 2 s 1 MS2XLD0080N160 0.8 1.2 16 0.76 50 4 2 s 1 MS2XLD0080N240 0.8 1.2 24 0.76 60 4 2 s 1 MS2XLD0090N060 0.9 1.4 6 0.86 45 4 2 s 1 MS2XLD0090N080 0.9 1.4 8 0.86 50 4 2 s 1 MS2XLD0090N100 0.9 1.4 10 0.86 50 4 2 s 1 MS2XLD0090N150 0.9 1.4 15 0.86 60 4 2 s 1 MS2XLD0100N040 1 1.5 4 0.94 50 4 2 a 1 MS2XLD0100N060 1 1.5 6 0.94 50 4 2 a 1 MS2XLD0100N080 1 1.5 8 0.94 50 4 2 a 1 MS2XLD0100N100 1 1.5 10 0.94 50 4 2 a 1 MS2XLD0100N120 1 1.5 12 0.94 50 4 2 a 1 MS2XLD0100N160 1 1.5 16 0.94 60 4 2 a 1 MS2XLD0100N200 1 1.5 20 0.94 60 4 2 a 1 MS2XLD0100N250 1 1.5 25 0.94 70 4 2 s 1 MS2XLD0100N300 1 1.5 30 0.94 70 4 2 s 1 MS2XLD0120N060 1.2 1.8 6 1.14 50 4 2 s 1 MS2XLD0120N080 1.2 1.8 8 1.14 50 4 2 s 1 MS2XLD0120N100 1.2 1.8 10 1.14 50 4 2 s 1 MS2XLD0120N120 1.2 1.8 12 1.14 50 4 2 s 1 MS2XLD0120N160 1.2 1.8 16 1.14 60 4 2 s 1 MS2XLD0120N200 1.2 1.8 20 1.14 60 4 2 s 1 MS2XLD0150N060 1.5 2.3 6 1.44 50 4 2 s 1 I MS2XLD0150N080 1.5 2.3 8 1.44 50 4 2 s 1 MS2XLD0150N100 1.5 2.3 10 1.44 50 4 2 s 1 MS2XLD0150N120 1.5 2.3 12 1.44 50 4 2 s 1 MS2XLD0150N140 1.5 2.3 14 1.44 60 4 2 s 1 MS2XLD0150N160 1.5 2.3 16 1.44 60 4 2 s 1 MS2XLD0150N180 1.5 2.3 18 1.44 60 4 2 s 1 MS2XLD0150N200 1.5 2.3 20 1.44 60 4 2 s 1 MS2XLD0150N250 1.5 2.3 25 1.44 70 4 2 s 1 MS2XLD0150N300 1.5 2.3 30 1.44 70 4 2 s 1 MS2XLD0150N380 1.5 2.3 38 1.44 80 4 2 s 1 MS2XLD0150N450 1.5 2.3 45 1.44 80 4 2 s 1 MS2XLD0200N060 2 3 6 1.9 50 4 2 s 1 MS2XLD0200N080 2 3 8 1.9 50 4 2 s 1 MS2XLD0200N100 2 3 10 1.9 50 4 2 a 1 MS2XLD0200N120 2 3 12 1.9 50 4 2 s 1 MS2XLD0200N140 2 3 14 1.9 60 4 2 a 1 MS2XLD0200N160 2 3 16 1.9 60 4 2 a 1 MS2XLD0200N180 2 3 18 1.9 60 4 2 s 1 MS2XLD0200N200 2 3 20 1.9 60 4 2 a 1 MS2XLD0200N250 2 3 25 1.9 70 4 2 a 1 MS2XLD0200N300 2 3 30 1.9 70 4 2 a 1 MS2XLD0200N350 2 3 35 1.9 80 4 2 s 1 MS2XLD0200N400 2 3 40 1.9 90 4 2 s 1 MS2XLD0200N500 2 3 50 1.9 100 4 2 s 1 I043
