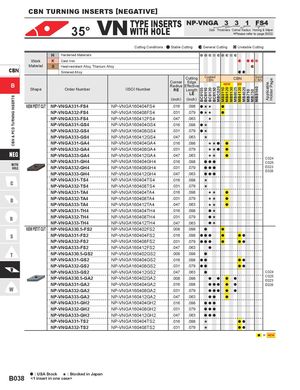

CBN & PCD TURNING INSERTS BC8105 BC8110 BC8120 BC8130 MBC020 MB8110 MB8120 MB8130 MB8025 MB4120 MB4020 MB710 MB730 MBS140 Applicable Holder Page CBN TURNING INSERTS [NEGATIVE] 35° VN TYPE WITH INSERTS HOLE NP-VNGA 3 3 1 FS4SizeThicknessCorner RadiusHoning & Wiper*Please refer to page B002. Cutting Conditions : Stable Cutting General Cutting Unstable Cutting H Hardened Materials Work K Cast Iron Material S Heat-resistant Alloy, Titanium Alloy CBN Sintered Alloy CuttingCornerEdgeCoatedCBN CBN SolidCBN B Shape Order Number (ISO) Number Radius EffectiveRELength LE (inch) (inch) NEW PETIT CUT NP-VNGA331-FS4 NP-VNGA160404FS4 .016 .098 ass a NP-VNGA332-FS4 NP-VNGA160408FS4 .031 .079 ass a NP-VNGA333-FS4 NP-VNGA160412FS4 .047 .063 s NP-VNGA331-GS4 NP-VNGA160404GS4 .016 .098 as NP-VNGA332-GS4 NP-VNGA160408GS4 .031 .079 as NP-VNGA333-GS4 NP-VNGA160412GS4 .047 .063 s NP-VNGA331-GA4 NP-VNGA160404GA4 .016 .098 ssa a NP-VNGA332-GA4 NP-VNGA160408GA4 .031 .079 ssa a NEG NP-VNGA333-GA4 NP-VNGA160412GA4 .047 .063 ss a C024 NP-VNGA331-GH4 NP-VNGA160404GH4 .016 .098 aaaWITHHOLENP-VNGA332-GH4NP-VNGA160408GH4.031.079aaa C025E023 NP-VNGA333-GH4 NP-VNGA160412GH4 .047 .063 aaa E026 NP-VNGA331-TS4 NP-VNGA160404TS4 .016 .098 s NP-VNGA332-TS4 NP-VNGA160408TS4 .031 .079 s NP-VNGA331-TA4 NP-VNGA160404TA4 .016 .098 ss a NP-VNGA332-TA4 NP-VNGA160408TA4 .031 .079 ss a NP-VNGA333-TA4 NP-VNGA160412TA4 .047 .063 ss a NP-VNGA331-TH4 NP-VNGA160404TH4 .016 .098 as NP-VNGA332-TH4 NP-VNGA160408TH4 .031 .079 as NP-VNGA333-TH4 NP-VNGA160412TH4 .047 .063 as NEW PETIT CUT NP-VNGA330.5-FS2 NP-VNGA160402FS2 .008 .098 a a NP-VNGA331-FS2 NP-VNGA160404FS2 .016 .098 aaa a aa NP-VNGA332-FS2 NP-VNGA160408FS2 .031 .079 aaa a aa NP-VNGA333-FS2 NP-VNGA160412FS2 .047 .063 a NP-VNGA330.5-GS2 NP-VNGA160402GS2 .008 .098 a NP-VNGA331-GS2 NP-VNGA160404GS2 .016 .098 aa aa NP-VNGA332-GS2 NP-VNGA160408GS2 .031 .079 aa aa NP-VNGA333-GS2 NP-VNGA160412GS2 .047 .063 a C024 NP-VNGA330.5-GA2 NP-VNGA160402GA2 .008 .098 a a a a C025E023 NP-VNGA331-GA2 NP-VNGA160404GA2 .016 .098 aaa a a E026 NP-VNGA332-GA2 NP-VNGA160408GA2 .031 .079 aaa a a NP-VNGA333-GA2 NP-VNGA160412GA2 .047 .063 aa a NP-VNGA331-GH2 NP-VNGA160404GH2 .016 .098 aaa NP-VNGA332-GH2 NP-VNGA160408GH2 .031 .079 aaa NP-VNGA333-GH2 NP-VNGA160412GH2 .047 .063 aaa NP-VNGA331-TS2 NP-VNGA160404TS2 .016 .098 s aa NP-VNGA332-TS2 NP-VNGA160408TS2 .031 .079 s aa a = a : USA Stock s : Stocked in Japan B038 <1 insert in one case>
