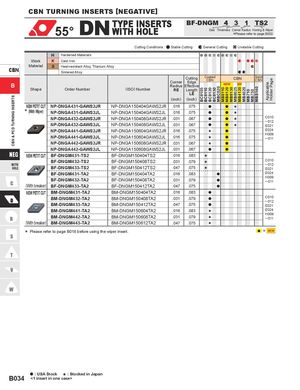

CBN & PCD TURNING INSERTS BC8105 BC8110 BC8120 BC8130 MBC020 MB8110 MB8120 MB8130 MB8025 MB4120 MB4020 MB710 MB730 MBS140 Applicable Holder Page CBN TURNING INSERTS [NEGATIVE] 55° DN TYPE WITH INSERTS HOLE BF-DNGM 4 3 1 TS2SizeThicknessCorner RadiusHoning & Wiper*Please refer to page B002. Cutting Conditions : Stable Cutting General Cutting Unstable Cutting H Hardened Materials Work K Cast Iron CBN Material S Heat-resistant Alloy, Titanium AlloySintered Alloy CuttingCornerEdgeCoatedCBN CBN SolidCBN B Shape Order Number (ISO) Number Radius EffectiveRELength LE (inch) (inch) NEW PETIT CUT NP-DNGA431-GAWS2JR NP-DNGA150404GAWS2JR .016 .075 a a s * (With Wiper) NP-DNGA431-GAWS2JL NP-DNGA150404GAWS2JL .016 .075 a a s NP-DNGA432-GAWS2JR NP-DNGA150408GAWS2JR .031 .067 a a s C010─ 012 NP-DNGA432-GAWS2JL NP-DNGA150408GAWS2JL .031 .067 a a s E021 NP-DNGA441-GAWS2JR NP-DNGA150604GAWS2JR .016 .075 s a E024 NP-DNGA441-GAWS2JL NP-DNGA150604GAWS2JL .016 .075 s a H009─ 011 NP-DNGA442-GAWS2JR NP-DNGA150608GAWS2JR .031 .067 s a NP-DNGA442-GAWS2JL NP-DNGA150608GAWS2JL .031 .067 a a NEG NEW PETIT CUT BF-DNGM431-TS2 BF-DNGM150404TS2 .016 .083 s BF-DNGM432-TS2 BF-DNGM150408TS2 .031 .079 sWITH C010─ 012 HOLE BF-DNGM433-TS2 BF-DNGM150412TS2 .047 .075 s E021 BF-DNGM431-TA2 BF-DNGM150404TA2 .016 .083 a E024 BF-DNGM432-TA2 BF-DNGM150408TA2 .031 .079 a H009─ 011 (With breaker) BF-DNGM433-TA2 BF-DNGM150412TA2 .047 .075 a NEW PETIT CUT BM-DNGM431-TA2 BM-DNGM150404TA2 .016 .083 a BM-DNGM432-TA2 BM-DNGM150408TA2 .031 .079 a C010─ 012 BM-DNGM433-TA2 BM-DNGM150412TA2 .047 .075 a E021 BM-DNGM441-TA2 BM-DNGM150604TA2 .016 .083 s E024 BM-DNGM442-TA2 BM-DNGM150608TA2 .031 .079 s H009─ 011 (With breaker) BM-DNGM443-TA2 BM-DNGM150612TA2 .047 .075 s * Please refer to page B018 before using the wiper insert. a = a : USA Stock s : Stocked in Japan B034 <1 insert in one case>
