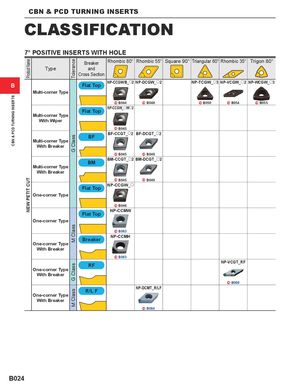

CBN & PCD TURNING INSERTS Product NameNEW PETIT CUT ToleranceG ClassM ClassG ClassM Class CBN & PCD TURNING INSERTS CLASSIFICATION 7° POSITIVE INSERTS WITH HOLE Breaker Rhombic 80° Rhombic 55° Square 90° Triangular 60° Rhombic 35° Trigon 80° Type and Cross Section B Flat Top NP-CCGW/B_o2 NP-DCGW_o2 NP-TCGW_o3 NP-VCGW_o2 NP-WCGW_o3 Multi-corner Type ^ B044 ^ B048 ^ B050 ^ B054 ^ B055 Flat Top NP-CCGW_oWo2 Multi-corner Type With Wiper ^ B045 BF BF-CCGT_o2 BF-DCGT_o2 Multi-corner Type With Breaker ^ B045 ^ B049 BM BM-CCGT_o2 BM-DCGT_o2 Multi-corner Type With Breaker ^ B045 ^ B049 Flat Top NP-CCGW_o One-corner Type ^ B046 Flat Top NP-CCMW One-corner Type ^ B063 Breaker NP-CCMH One-corner Type With Breaker ^ B063 RF NP-VCGT_RF One-corner Type With Breaker ^ B068 R/L F NP-DCMT_R/LF One-corner Type With Breaker ^ B064 B024
