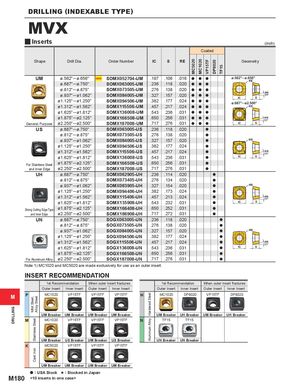

DRILLING Mild Steel, Alloy SteelStainless SteelCast Iron Hardened SteelAluminum Alloy MC5020 MC1020 VP15TF DP8020 TF15 DRILLING (INDEXABLE TYPE) MVX y Inserts (inch) Coated Shape Drill Dia. Order Number IC S RE Geometry UM ø.562" ─ ø.656" SOMX052704-UM .197 .106 .016 a a a ø.562"─ø.656" RE ø.687" ─ ø.750" SOMX063005-UM .236 .118 .020 a a a ø.812" ─ ø.875" SOMX073505-UM .276 .138 .020 a a a AN ø.937" ─ ø1.062" SOMX084005-UM .327 .157 .020 a a a 11°ICS ø1.125" ─ ø1.250" SOMX094506-UM .382 .177 .024 a a a ø.687"─ø2.500" ø1.312" ─ ø1.562" SOMX115506-UM .457 .217 .024 a a a RE ø1.625" ─ ø1.812" SOMX136008-UM .543 .236 .031 a a a ø1.875" ─ ø2.125" SOMX166508-UM .650 .256 .031 a a a AN11° General Purpose ø2.250" ─ ø2.500" SOMX187008-UM .717 .276 .031 a a a IC S US ø.687" ─ ø.750" SOMX063005-US .236 .118 .020 a ø.812" ─ ø.875" SOMX073505-US .276 .138 .020 a ø.937" ─ ø1.062" SOMX084005-US .327 .157 .020 a RE ø1.125" ─ ø1.250" SOMX094506-US .382 .177 .024 a ø1.312" ─ ø1.562" SOMX115506-US .457 .217 .024 a AN11° ø1.625" ─ ø1.812" SOMX136008-US .543 .236 .031 a IC S For Stainless Steel ø1.875" ─ ø2.125" SOMX166508-US .650 .256 .031 a and Inner Edge ø2.250" ─ ø2.500" SOMX187008-US .717 .276 .031 a UH ø.687" ─ ø.750" SOMX062905-UH .236 .114 .020 a ø.812" ─ ø.875" SOMX073405-UH .276 .134 .020 a ø.937" ─ ø1.062" SOMX083905-UH .327 .154 .020 a RE ø1.125" ─ ø1.250" SOMX094406-UH .382 .173 .024 a ø1.312" ─ ø1.562" SOMX115406-UH .457 .213 .024 a AN11° ø1.625" ─ ø1.812" SOMX135908-UH .543 .232 .031 a IC S Strong Cutting Edge Type ø1.875" ─ ø2.125" SOMX166408-UH .650 .252 .031 a and Inner Edge ø2.250" ─ ø2.500" SOMX186908-UH .717 .272 .031 a UN ø.687" ─ ø.750" SOGX063005-UN .236 .118 .020 a ø.812" ─ ø.875" SOGX073505-UN .276 .138 .020 a ø.937" ─ ø1.062" SOGX084005-UN .327 .157 .020 a RE ø1.125" ─ ø1.250" SOGX094506-UN .382 .177 .024 a ø1.312" ─ ø1.562" SOGX115506-UN .457 .217 .024 a AN11° ø1.625" ─ ø1.812" SOGX136008-UN .543 .236 .031 a IC S ø1.875" ─ ø2.125" SOGX166508-UN .650 .256 .031 a For Aluminum Alloy ø2.250" ─ ø2.500" SOGX187008-UN .717 .276 .031 a Note 1) MC1020 and MC5020 are made exclusively for use as an outer insert. INSERT RECOMMENDATION 1st Recommendation When outer insert fractures 1st Recommendation When outer insert fractures Outer Insert Inner Insert Outer Insert Inner Insert Outer Insert Inner Insert Outer Insert Inner Insert M P MC1020 VP15TF VP15TF VP15TF H MC1020 DP8020 VP15TF DP8020 UM Breaker UM Breaker UM Breaker UM Breaker UM Breaker UH Breaker UM Breaker UH Breaker M MC1020 VP15TF VP15TF VP15TF N TF15 TF15 UM Breaker US Breaker UM Breaker US Breaker UN Breaker UN Breaker K MC5020 VP15TF VP15TF VP15TF UM Breaker UM Breaker UM Breaker UM Breaker a : USA Stock s : Stocked in Japan M180 <10 inserts in one case>
