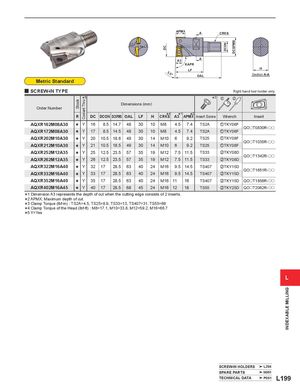

Общий каталог Mitsubishi 2020 - 2021 - страница 1374

• C009A_CUTTING TOOLS
• INDEX
• A_TURNING INSERTS
• B_CBN & PCD TURNING INSERTS
• C_EXTERNAL TURNING TOOLS
• D_SMALL TOOLS
• E_BORING BARS
• F_GROOVING/CUTTING OFF
• G_THREADING
• H_HSK-T TOOLS
• I_SOLID CARBIDE END MILLS
• J_EXCHANGEABLE HEAD END MILLS
• K_ROTATING TOOL INSERTS
• L_INDEXABLE MILLING
• M_DRILLING
• N_SPARE PARTS
• P_TECHNICAL DATA

Stock Coolant Thru DC DCON DCSFMS INDEXABLE MILLING APMX A CRKS A3 A KAPR 3.5° LF OAL HSection A-A Metric Standard y SCREW-IN TYPE Right hand tool holder only. *5 *3 z x Dimensions (mm) Order Number R DC DCON DCSFMS OAL LF H CRK*S4 A3*1 APM*X2 Insert Screw Wrench Insert AQXR162M08A30 s Y 16 8.5 14.7 48 30 10 M8 4.5 7.4 TS2A zTKY06F QOoT0830R-oo AQXR172M08A30 s Y 17 8.5 14.5 48 30 10 M8 4.5 7.4 TS2A zTKY06F AQXR202M10A30 s Y 20 10.5 18.6 49 30 14 M10 6 9.2 TS25 zTKY08F QOoT1035R-oo AQXR212M10A30 s Y 21 10.5 18.5 49 30 14 M10 6 9.2 TS25 zTKY08F AQXR252M12A35 s Y 25 12.5 23.5 57 35 19 M12 7.5 11.5 TS33 xTKY08D QOoT1342R-oo AQXR262M12A35 s Y 26 12.5 23.5 57 35 19 M12 7.5 11.5 TS33 xTKY08D AQXR322M16A40 s Y 32 17 28.5 63 40 24 M16 9.5 14.5 TS407 xTKY15D QOoT1651R-oo AQXR332M16A40 s Y 33 17 28.5 63 40 24 M16 9.5 14.5 TS407 xTKY15D AQXR352M16A40 s Y 35 17 28.5 63 40 24 M16 11 16 TS407 xTKY15D QOoT1856R-oo AQXR402M16A45 s Y 40 17 28.5 68 45 24 M16 12 18 TS55 xTKY25D QOoT2062R-oo *****12345 Dimension A3 represents the depth of cut when the cutting edge consists of 2 APMX: Maximum depth of cut. Clamp Torque (lbf-in) : TS2A=4.5, TS25=8.9, TS33=13, TS407=31, TS55=66 Clamp Torque of the Head (lbf-ft) : M8=17.1, M10=33.8, M12=59.2, M16=66.7 Y=Yes inserts. L SCREW-IN HOLDERS L294 SPARE PARTS N001 TECHNICAL DATA P001 L199
