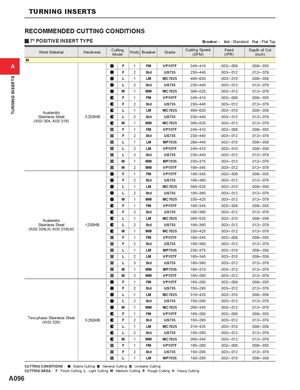

TURNING INSERTS TURNING INSERTS RECOMMENDED CUTTING CONDITIONS y 7° POSITIVE INSERT TYPE Breaker : Std : Standard Flat : Flat Top Work Material Hardness CuttingModePriorityBreaker Grade Cutting Speed(SFM) Feed(IPR) Depth of Cut(inch) M A F 1 FM VP15TF 245─410 .002─.008 .008─.035 F 2 Std US735 230─440 .003─.012 .012─.079 L 1 LM MC7025 460─620 .002─.010 .008─.039 L 2 Std US735 230─440 .003─.012 .012─.079 M 1 MM MC7025 395─525 .003─.012 .012─.079 F 1 FM VP15TF 245─410 .002─.008 .008─.035 F 2 Std US735 230─440 .003─.012 .012─.079 Austenitic L 1 LM MC7025 460─620 .002─.010 .008─.039 Stainless Steel < 200HB L 2 Std US735 230─440 .003─.012 .012─.079 (AISI 304, AISI 316) M 1 MM MC7025 395─525 .003─.012 .012─.079 F 1 FM VP15TF 245─410 .002─.008 .008─.035 F 2 Std US735 230─440 .003─.012 .012─.079 L 1 LM MP7035 280─440 .002─.010 .008─.039 L 2 LM VP15TF 245─410 .002─.010 .008─.039 L 3 Std US735 230─440 .003─.012 .012─.079 M 1 MM MP7035 230─375 .003─.012 .012─.079 M 2 MM VP15TF 195─345 .003─.012 .012─.079 F 1 FM VP15TF 195─345 .002─.008 .008─.035 F 2 Std US735 195─360 .003─.012 .012─.079 L 1 LM MC7025 395─525 .002─.010 .008─.039 L 2 Std US735 195─360 .003─.012 .012─.079 M 1 MM MC7025 330─425 .003─.012 .012─.079 F 1 FM VP15TF 195─345 .002─.008 .008─.035 F 2 Std US735 195─360 .003─.012 .012─.079 Austenitic L 1 LM MC7025 395─525 .002─.010 .008─.039 Stainless Steel >200HB L 2 Std US735 195─360 .003─.012 .012─.079 (AISI 304LN, AISI 316LN) M 1 MM MC7025 330─425 .003─.012 .012─.079 F 1 FM VP15TF 195─345 .002─.008 .008─.035 F 2 Std US735 195─360 .003─.012 .012─.079 L 1 LM MP7035 230─375 .002─.010 .008─.039 L 2 LM VP15TF 195─345 .002─.010 .008─.039 L 3 Std US735 195─360 .003─.012 .012─.079 M 1 MM MP7035 195─310 .003─.012 .012─.079 M 2 MM VP15TF 165─295 .003─.012 .012─.079 F 1 FM VP15TF 165─280 .002─.008 .008─.035 F 2 Std US735 150─295 .003─.012 .012─.079 L 1 LM MC7025 310─425 .002─.010 .008─.039 L 2 Std US735 150─295 .003─.012 .012─.079 M 1 MM MC7025 260─345 .003─.012 .012─.079 F 1 FM VP15TF 165─280 .002─.008 .008─.035 Two-phase Stainless Steel(AISI 329) < 280HB F 2 Std US735 150─295 .003─.012 .012─.079 L 1 LM MC7025 310─425 .002─.010 .008─.039 L 2 Std US735 150─295 .003─.012 .012─.079 M 1 MM MC7025 260─345 .003─.012 .012─.079 F 1 FM VP15TF 165─280 .002─.008 .008─.035 F 2 Std US735 150─295 .003─.012 .012─.079 L 1 LM MP7035 180─295 .002─.010 .008─.039 CUTTING CONDITIONS : : Stable Cutting : General Cutting : Unstable Cutting CUTTING AREA : F : Finish Cutting L : Light Cutting M : Medium Cutting R : Rough Cutting H : Heavy Cutting A096
