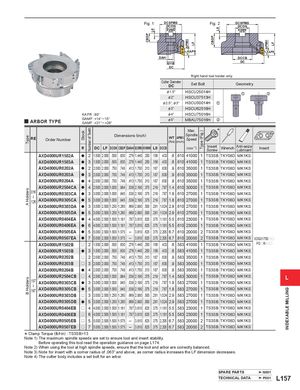

Общий каталог Mitsubishi 2020 - 2021 - страница 1332

Предыдущая страница Следующая страница

Навигация

TypeA HoldersB Holders ── Stock Number of Teeth CBDP L8 APMX LF Type (Fig.) CBDP L8 APMX LF INDEXABLE MILLING Fig. 1 DCSFMSDCON Fig. 2 DCSFMSDCON KWW KWW KAPR KAPR DAH DCCB DCCB DC DC Right hand tool holder only. Cutter DiameterDC Set Bolt Geometry & 1.5" HSCU25014H z x & 2" HSCU37513H &2.5", &3" HSCU50014H z & 3" HSCU62516H KAPR :90° & 4" HSCU75016H y ARBOR TYPE GAMP :+14°─ 15°GAMF :+21°─ +26° & 5" MBAU75016H x Max. * RE Order Number Dimensions (inch) SpindleWTAPMX(lbs) (inch)Speed R DC LF DCON CBDP DAH DCSFMS KWW L8 DCCB (min-1) InsertScrewWrench Anti-seize Lubricant Insert AXD4000UR1502A a 2 1.500 2.000 .500 .630 .276 1.440 .250 .156 .433 .6 .610 41000 1 TS3SB TKY08D MK1KS AXD4000UR1503A a 3 1.500 2.000 .500 .630 .276 1.440 .250 .156 .433 .6 .610 41000 1 TS3SB TKY08D MK1KS AXD4000UR0202A a 2 2.000 2.000 .750 .748 .413 1.750 .313 .187 .630 .9 .610 35000 1 TS3SB TKY08D MK1KS AXD4000UR0203A a 3 2.000 2.000 .750 .748 .413 1.750 .313 .187 .630 .9 .610 35000 1 TS3SB TKY08D MK1KS AXD4000UR0204A a 4 2.000 2.000 .750 .748 .413 1.750 .313 .187 .630 .9 .610 35000 1 TS3SB TKY08D MK1KS AXD4000UR2504CA a 4 2.500 2.000 1.000 .984 .539 2.190 .375 .219 .787 1.4 .610 30000 1 TS3SB TKY08D MK1KS .016 AXD4000UR0303CA a 3 3.000 2.000 1.000 .945 .539 2.190 .375 .219 .787 1.9 .610 27000 1 TS3SB TKY08D MK1KS .126 AXD4000UR0305CA a 5 3.000 2.000 1.000 .945 .539 2.190 .375 .219 .787 1.8 .610 27000 1 TS3SB TKY08D MK1KS AXD4000UR0303DA a 3 3.000 2.500 1.250 1.260 .669 2.880 .500 .281 1.024 2.9 .610 27000 1 TS3SB TKY08D MK1KS AXD4000UR0305DA a 5 3.000 2.500 1.250 1.260 .669 2.880 .500 .281 1.024 2.9 .610 27000 1 TS3SB TKY08D MK1KS AXD4000UR0404EA a 4 4.000 2.500 1.500 1.181 .787 3.810 .625 .375 1.181 5.5 .610 23000 1 TS3SB TKY08D MK1KS AXD4000UR0406EA a 6 4.000 2.500 1.500 1.181 .787 3.810 .625 .375 1.181 5.5 .610 23000 1 TS3SB TKY08D MK1KS AXD4000UR0505EA a 5 5.000 2.500 1.500 1.575 – 3.810 .625 .375 2.205 6.7 .610 20000 2 TS3SB TKY08D MK1KS AXD4000UR0507EA a 7 5.000 2.500 1.500 1.575 – 3.810 .625 .375 2.205 6.7 .610 20000 2 TS3SB TKY08D MK1KS XDGX1750pp AXD4000UR1502B r 2 1.500 2.000 .500 .630 .276 1.440 .250 .156 .433 .6 .583 41000 1 TS3SB TKY08D MK1KS PDpR-pp AXD4000UR1503B a 3 1.500 2.000 .500 .630 .276 1.440 .250 .156 .433 .6 .583 41000 1 TS3SB TKY08D MK1KS AXD4000UR0202B r 2 2.000 2.000 .750 .748 .413 1.750 .313 .187 .630 .9 .583 35000 1 TS3SB TKY08D MK1KS AXD4000UR0203B r 3 2.000 2.000 .750 .748 .413 1.750 .313 .187 .630 .9 .583 35000 1 TS3SB TKY08D MK1KS AXD4000UR0204B a 4 2.000 2.000 .750 .748 .413 1.750 .313 .187 .630 .9 .583 35000 1 TS3SB TKY08D MK1KS AXD4000UR2504CB r 4 2.500 2.000 1.000 .984 .539 2.190 .375 .219 .787 1.4 .583 30000 1 TS3SB TKY08D MK1KS.157AXD4000UR0303CBa33.000 2.000 1.000.945.539 2.190.375.219.7871.9.583270001TS3SBTKY08DMK1KSL .197 AXD4000UR0305CB a 5 3.000 2.000 1.000 .945 .539 2.190 .375 .219 .787 1.8 .583 27000 1 TS3SB TKY08D MK1KS AXD4000UR0303DB r 3 3.000 2.500 1.250 1.260 .669 2.880 .500 .281 1.024 2.9 .583 27000 1 TS3SB TKY08D MK1KS AXD4000UR0305DB a 5 3.000 2.500 1.250 1.260 .669 2.880 .500 .281 1.024 2.9 .583 27000 1 TS3SB TKY08D MK1KS AXD4000UR0404EB r 4 4.000 2.500 1.500 1.181 .787 3.810 .625 .375 1.181 5.5 .583 23000 1 TS3SB TKY08D MK1KS AXD4000UR0406EB r 6 4.000 2.500 1.500 1.181 .787 3.810 .625 .375 1.181 5.5 .583 23000 1 TS3SB TKY08D MK1KS AXD4000UR0505EB r 5 5.000 2.500 1.500 1.575 – 3.810 .625 .375 2.205 6.7 .583 20000 2 TS3SB TKY08D MK1KS AXD4000UR0507EB r 7 5.000 2.500 1.500 1.575 – 3.810 .625 .375 2.205 6.7 .583 20000 2 TS3SB TKY08D MK1KS * Clamp Torque (lbf-in) : TS3SB=13 Note 1) The maximum spindle speeds are set to ensure tool and insert stability. Before operating this tool read the operation guidance on page L174. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. Note 3) Note for insert with a corner radius of .063" and above, as corner radius increases the LF dimension decreases. Note 4) The cutter body includes a set bolt for an arbor. SPARE PARTS N001 TECHNICAL DATA P001 L157
