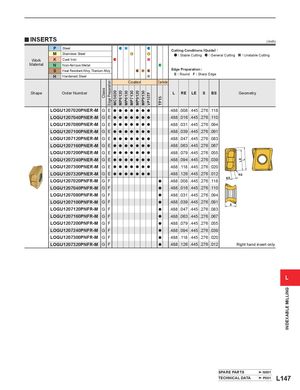

Class Edge Preparation MC5020 MP6120 MP6130 MP7130 MP9120 MP9130 VP15TF TF15 LE L INDEXABLE MILLING y INSERTS ( inch) P Steel Cutting Conditions (Guide) : M Stainless Steel : Stable Cutting : General Cutting : Unstable Cutting Work K Cast Iron Material N Non-ferrous Metal S Heat Resistant Alloy, Titanium Alloy Edge Preparation : H Hardened Steel E : Round F : Sharp Edge Coated Carbide Shape Order Number L RE LE S BS Geometry LOGU1207020PNER-M G E a a a a a a a .488 .008 .445 .276 .118 LOGU1207040PNER-M G E a a a a a a a .488 .016 .445 .276 .110 LOGU1207080PNER-M G E a a a a a a a .488 .031 .445 .276 .094 LOGU1207100PNER-M G E a a a a a a a .488 .039 .445 .276 .091 LOGU1207120PNER-M G E a a a a a a a .488 .047 .445 .276 .083 LOGU1207160PNER-M G E a a a a a a a .488 .063 .445 .276 .067 LOGU1207200PNER-M G E a a a a a a a .488 .079 .445 .276 .055 LOGU1207240PNER-M G E a a a a a a a .488 .094 .445 .276 .039 LOGU1207300PNER-M G E a a a a a a a .488 .118 .445 .276 .020 LOGU1207320PNER-M G E a a a a a a a .488 .126 .445 .276 .012 RE LOGU1207020PNFR-M G F a .488 .008 .445 .276 .118 BS LOGU1207040PNFR-M G F a .488 .016 .445 .276 .110 LOGU1207080PNFR-M G F a .488 .031 .445 .276 .094 LOGU1207100PNFR-M G F a .488 .039 .445 .276 .091 S LOGU1207120PNFR-M G F a .488 .047 .445 .276 .083 LOGU1207160PNFR-M G F a .488 .063 .445 .276 .067 LOGU1207200PNFR-M G F a .488 .079 .445 .276 .055 LOGU1207240PNFR-M G F a .488 .094 .445 .276 .039 LOGU1207300PNFR-M G F a .488 .118 .445 .276 .020 LOGU1207320PNFR-M G F a .488 .126 .445 .276 .012 Right hand insert only. L SPARE PARTS N001 TECHNICAL DATA P001 L147
