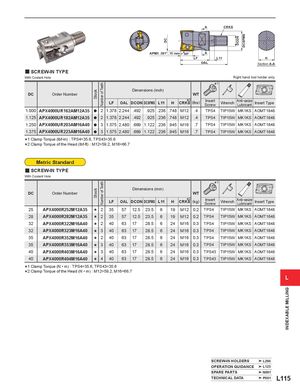

StockStock Number of TeethNumber of Teeth DC DCON DCSFMS INDEXABLE MILLING A CRKS APMX .591", 15 mm 90° A LF L11 H OAL Section A-A y SCREW-IN TYPE With Coolant Hole Right hand tool holder only. *1 Dimensions (inch) DC Order Number WT LF OAL DCON DCSFMS L11 H CRK*S2 (lbs) InsertScrewWrench Anti-seizeLubricantInsert Type 1.000 APX4000UR162AM12A35 a 2 1.378 2.244 .492 .925 .236 .748 M12 .4 TPS4 TIP15W MK1KS AOMT1848 1.125 APX4000UR182AM12A35 a 2 1.378 2.244 .492 .925 .236 .748 M12 .4 TPS4 TIP15W MK1KS AOMT1848 1.250 APX4000UR203AM16A40 a 3 1.575 2.480 .669 1.122 .236 .945 M16 .7 TPS4 TIP15W MK1KS AOMT1848 1.375 APX4000UR223AM16A40 a 3 1.575 2.480 .669 1.122 .236 .945 M16 .7 TPS4 TIP15W MK1KS AOMT1848 **12 Clamp Clamp Torque Torque (lbf-in) : TPS4=35.6, TPS43=35.6 of the Head (lbf-ft) : M12=59.2, M16=66.7 Metric Standard y SCREW-IN TYPE With Coolant Hole *1 Dimensions (mm) DC Order Number WT LF OAL DCON DCSFMS L11 H CRK*S2 (kg) InsertScrewWrench Anti-seizeLubricantInsert Type 25 APX4000R252M12A35 s 2 35 57 12.5 23.5 6 19 M12 0.2 TPS4 TIP15W MK1KS AOMT1848 28 APX4000R282M12A35 s 2 35 57 12.5 23.5 6 19 M12 0.2 TPS4 TIP15W MK1KS AOMT1848 32 APX4000R322M16A40 s 2 40 63 17 28.5 6 24 M16 0.3 TPS4 TIP15W MK1KS AOMT1848 32 APX4000R323M16A40 s 3 40 63 17 28.5 6 24 M16 0.3 TPS4 TIP15W MK1KS AOMT1848 35 APX4000R352M16A40 s 2 40 63 17 28.5 6 24 M16 0.3 TPS4 TIP15W MK1KS AOMT1848 35 APX4000R353M16A40 s 3 40 63 17 28.5 6 24 M16 0.3 TPS4 TIP15W MK1KS AOMT1848 40 APX4000R403M16A40 s 3 40 63 17 28.5 6 24 M16 0.3 TPS43 TIP15W MK1KS AOMT1848 40 APX4000R404M16A40 s 4 40 63 17 28.5 6 24 M16 0.3 TPS43 TIP15W MK1KS AOMT1848 **12 Clamp Clamp Torque Torque (N • m) : TPS4=35.6, of the Head (N • m) : TPS43=35.6 M12=59.2, M16=66.7 L SCREW-IN HOLDERS L294 OPERATION GUIDANCE L123 SPARE PARTS N001 TECHNICAL DATA P001 L115
