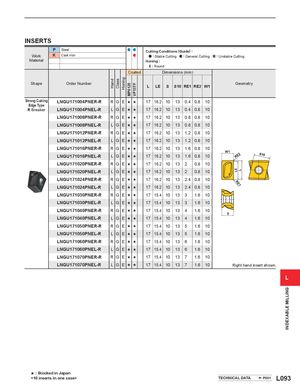

Общий каталог Mitsubishi 2020 - 2021 - страница 1268

• C009A_CUTTING TOOLS
• INDEX
• A_TURNING INSERTS
• B_CBN & PCD TURNING INSERTS
• C_EXTERNAL TURNING TOOLS
• D_SMALL TOOLS
• E_BORING BARS
• F_GROOVING/CUTTING OFF
• G_THREADING
• H_HSK-T TOOLS
• I_SOLID CARBIDE END MILLS
• J_EXCHANGEABLE HEAD END MILLS
• K_ROTATING TOOL INSERTS
• L_INDEXABLE MILLING
• M_DRILLING
• N_SPARE PARTS
• P_TECHNICAL DATA

Hand Class Honing MP6120 VP15TF LE L INDEXABLE MILLING RE1 INSERTS P Steel Cutting Conditions (Guide) : Work K Cast Iron : Stable Cutting : General Cutting : Unstable Cutting Material Honing : E : Round Coated Dimensions (mm) Shape Order Number L LE S S10 RE1 RE2 W1 Geometry Strong Cutting LNGU171004PNER-R R G E s s 17 16.2 10 13 0.4 0.8 10 Edge Type R Breaker LNGU171004PNEL-R L G E s s 17 16.2 10 13 0.4 0.8 10 LNGU171008PNER-R R G E s s 17 16.2 10 13 0.8 0.8 10 LNGU171008PNEL-R L G E s s 17 16.2 10 13 0.8 0.8 10 LNGU171012PNER-R R G E s s 17 16.2 10 13 1.2 0.8 10 LNGU171012PNEL-R L G E s s 17 16.2 10 13 1.2 0.8 10 LNGU171016PNER-R R G E s s 17 16.2 10 13 1.6 0.8 10 LNGU171016PNEL-R L G E s s 17 16.2 10 13 1.6 0.8 10 W1 RE2 S10 LNGU171020PNER-R R G E s s 17 16.2 10 13 2 0.8 10 LNGU171020PNEL-R L G E s s 17 16.2 10 13 2 0.8 10 LNGU171024PNER-R R G E s s 17 16.2 10 13 2.4 0.8 10 LNGU171024PNEL-R L G E s s 17 16.2 10 13 2.4 0.8 10 LNGU171030PNER-R R G E s s 17 15.4 10 13 3 1.6 10 LNGU171030PNEL-R L G E s s 17 15.4 10 13 3 1.6 10 LNGU171040PNER-R R G E s s 17 15.4 10 13 4 1.6 10 S LNGU171040PNEL-R L G E s s 17 15.4 10 13 4 1.6 10 LNGU171050PNER-R R G E s s 17 15.4 10 13 5 1.6 10 LNGU171050PNEL-R L G E s s 17 15.4 10 13 5 1.6 10 LNGU171060PNER-R R G E s s 17 15.4 10 13 6 1.6 10 LNGU171060PNEL-R L G E s s 17 15.4 10 13 6 1.6 10 LNGU171070PNER-R R G E s s 17 15.4 10 13 7 1.6 10 LNGU171070PNEL-R L G E s s 17 15.4 10 13 7 1.6 10 Right hand insert shown. L s : Stocked in Japan <10 inserts in one case> TECHNICAL DATA P001 L093
