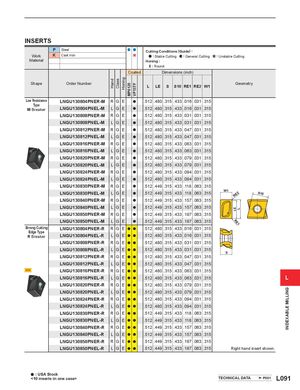

Hand Class Honing MP6120 VP15TF LE L INDEXABLE MILLING INSERTS P Steel Cutting Conditions (Guide) : Work K Cast Iron : Stable Cutting : General Cutting : Unstable Cutting Material Honing : E : Round Coated Dimensions (inch) Shape Order Number L LE S S10 RE1 RE2 W1 Geometry Low Resistance LNGU130804PNER-M R G E a .512 .480 .315 .433 .016 .031 .315 Type M Breaker LNGU130804PNEL-M L G E a .512 .480 .315 .433 .016 .031 .315 LNGU130808PNER-M R G E a .512 .480 .315 .433 .031 .031 .315 LNGU130808PNEL-M L G E a .512 .480 .315 .433 .031 .031 .315 LNGU130812PNER-M R G E a .512 .480 .315 .433 .047 .031 .315 LNGU130812PNEL-M L G E a .512 .480 .315 .433 .047 .031 .315 LNGU130816PNER-M R G E a .512 .480 .315 .433 .063 .031 .315 LNGU130816PNEL-M L G E a .512 .480 .315 .433 .063 .031 .315 LNGU130820PNER-M R G E a .512 .480 .315 .433 .079 .031 .315 LNGU130820PNEL-M L G E a .512 .480 .315 .433 .079 .031 .315 LNGU130824PNER-M R G E a .512 .480 .315 .433 .094 .031 .315 LNGU130824PNEL-M L G E a .512 .480 .315 .433 .094 .031 .315 LNGU130830PNER-M R G E a .512 .449 .315 .433 .118 .063 .315 LNGU130830PNEL-M L G E a .512 .449 .315 .433 .118 .063 .315 W1 RE2 S10 LNGU130840PNER-M R G E a .512 .449 .315 .433 .157 .063 .315 LNGU130840PNEL-M L G E a .512 .449 .315 .433 .157 .063 .315 LNGU130850PNER-M R G E a .512 .449 .315 .433 .197 .063 .315 LNGU130850PNEL-M L G E a .512 .449 .315 .433 .197 .063 .315 Strong Cutting LNGU130804PNER-R R G E a a .512 .480 .315 .433 .016 .031 .315 Edge Type R Breaker LNGU130804PNEL-R L G E a a .512 .480 .315 .433 .016 .031 .315 LNGU130808PNER-R R G E a a .512 .480 .315 .433 .031 .031 .315 LNGU130808PNEL-R L G E a a .512 .480 .315 .433 .031 .031 .315 S LNGU130812PNER-R R G E a a .512 .480 .315 .433 .047 .031 .315 LNGU130812PNEL-R L G E a a .512 .480 .315 .433 .047 .031 .315 LNGU130816PNER-R R G E a a .512 .480 .315 .433 .063 .031 .315 LNGU130816PNEL-R L G E a a .512 .480 .315 .433 .063 .031 .315 L LNGU130820PNER-R R G E a a .512 .480 .315 .433 .079 .031 .315 LNGU130820PNEL-R L G E a a .512 .480 .315 .433 .079 .031 .315 LNGU130824PNER-R R G E a a .512 .480 .315 .433 .094 .031 .315 LNGU130824PNEL-R L G E a a .512 .480 .315 .433 .094 .031 .315 LNGU130830PNER-R R G E a a .512 .449 .315 .433 .118 .063 .315 LNGU130830PNEL-R L G E a a .512 .449 .315 .433 .118 .063 .315 LNGU130840PNER-R R G E a a .512 .449 .315 .433 .157 .063 .315 LNGU130840PNEL-R L G E a a .512 .449 .315 .433 .157 .063 .315 LNGU130850PNER-R R G E a a .512 .449 .315 .433 .197 .063 .315 LNGU130850PNEL-R L G E a a .512 .449 .315 .433 .197 .063 .315 Right hand insert shown. a : USA Stock <10 inserts in one case> TECHNICAL DATA P001 L091 RE1
