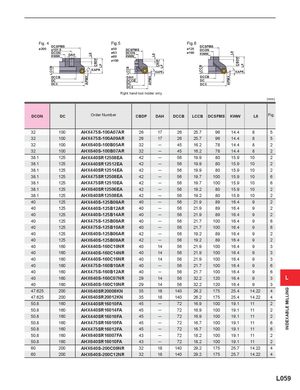

LCCB APMX L8 CBDP LF LCCB APMX L8 CBDP LF LCCB APMX L8 CBDP LF INDEXABLE MILLING Fig. 4 Fig.5 Fig.6 ø200 DCSFMSø101.6 ø50 DCSFMS ø125 DCSFMSDCON DCONKWW DAH ø63 DCONø80KWW ø160 KWW ø100 KAPR KAPR KAPR DCCB DAH DCCB DC DCCB DC DCX DC DCX DCX Right hand tool holder only. (mm) DCON DC Order Number CBDP DAH DCCB LCCB DCSFMS KWW L8 Fig. 32 100 AHX475S-100A07AR 26 17 26 25.7 96 14.4 8 5 32 100 AHX475S-100A09AR 26 17 26 25.7 96 14.4 8 5 32 100 AHX640S-100B05AR 32 ─ 45 16.2 78 14.4 8 2 32 100 AHX640S-100B07AR 32 ─ 45 16.2 78 14.4 8 2 38.1 125 AHX440SR12508EA 42 ─ 56 19.9 80 15.9 10 2 38.1 125 AHX440SR12512EA 42 ─ 56 19.9 80 15.9 10 2 38.1 125 AHX440SR12514EA 42 ─ 56 19.9 80 15.9 10 2 38.1 125 AHX475SR12508EA 42 ─ 56 19.7 100 15.9 10 6 38.1 125 AHX475SR12510EA 42 ─ 56 19.7 100 15.9 10 6 38.1 125 AHX640SR12506EA 42 ─ 56 19.2 80 15.9 10 2 38.1 125 AHX640SR12508EA 42 ─ 56 19.2 80 15.9 10 2 40 125 AHX440S-125B08AR 40 ─ 56 21.9 89 16.4 9 2 40 125 AHX440S-125B12AR 40 ─ 56 21.9 89 16.4 9 2 40 125 AHX440S-125B14AR 40 ─ 56 21.9 89 16.4 9 2 40 125 AHX475S-125B08AR 40 ─ 56 21.7 100 16.4 9 6 40 125 AHX475S-125B10AR 40 ─ 56 21.7 100 16.4 9 6 40 125 AHX640S-125B06AR 42 ─ 56 19.2 89 16.4 9 2 40 125 AHX640S-125B08AR 42 ─ 56 19.2 89 16.4 9 2 40 160 AHX440S-160C10NR 40 14 56 21.9 100 16.4 9 3 40 160 AHX440S-160C14NR 40 14 56 21.9 100 16.4 9 3 40 160 AHX440S-160C16NR 40 14 56 21.9 100 16.4 9 3 40 160 AHX475S-160B10AR 40 ─ 56 21.7 100 16.4 9 6 40 160 AHX475S-160B12AR 40 ─ 56 21.7 100 16.4 9 6 40 160 AHX640S-160C07NR 29 14 56 32.2 120 16.4 9 3 L 40 160 AHX640S-160C10NR 29 14 56 32.2 120 16.4 9 3 47.625 200 AHX640SR20008KN 35 18 140 26.2 175 25.4 14.22 4 47.625 200 AHX640SR20012KN 35 18 140 26.2 175 25.4 14.22 4 50.8 160 AHX440SR16010FA 45 ─ 72 16.9 100 19.1 11 2 50.8 160 AHX440SR16014FA 45 ─ 72 16.9 100 19.1 11 2 50.8 160 AHX440SR16016FA 45 ─ 72 16.9 100 19.1 11 2 50.8 160 AHX475SR16010FA 45 ─ 72 16.7 100 19.1 11 6 50.8 160 AHX475SR16012FA 45 ─ 72 16.7 100 19.1 11 6 50.8 160 AHX640SR16007FA 43 ─ 72 18.2 100 19.1 11 2 50.8 160 AHX640SR16010FA 43 ─ 72 18.2 100 19.1 11 2 60 200 AHX640S-200C08NR 32 18 140 29.2 175 25.7 14.22 4 60 200 AHX640S-200C12NR 32 18 140 29.2 175 25.7 14.22 4 L059
