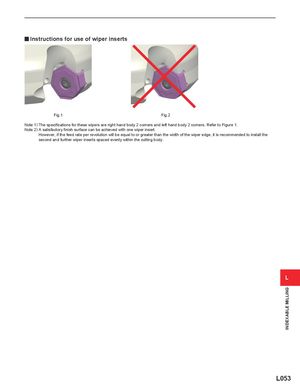

y Instructions for use of wiper inserts Fig.1 Fig.2 Note 1) The specifications for these wipers are right hand body 2 corners and left hand body 2 corners. Refer to Figure 1. Note 2) A satisfactory finish surface can be achieved with one wiper insert. However, if the feed rate per revolution will be equal to or greater than the width of the wiper edge, it is recommended to install the second and further wiper inserts spaced evenly within the cutting body. L L053 INDEXABLE MILLING
