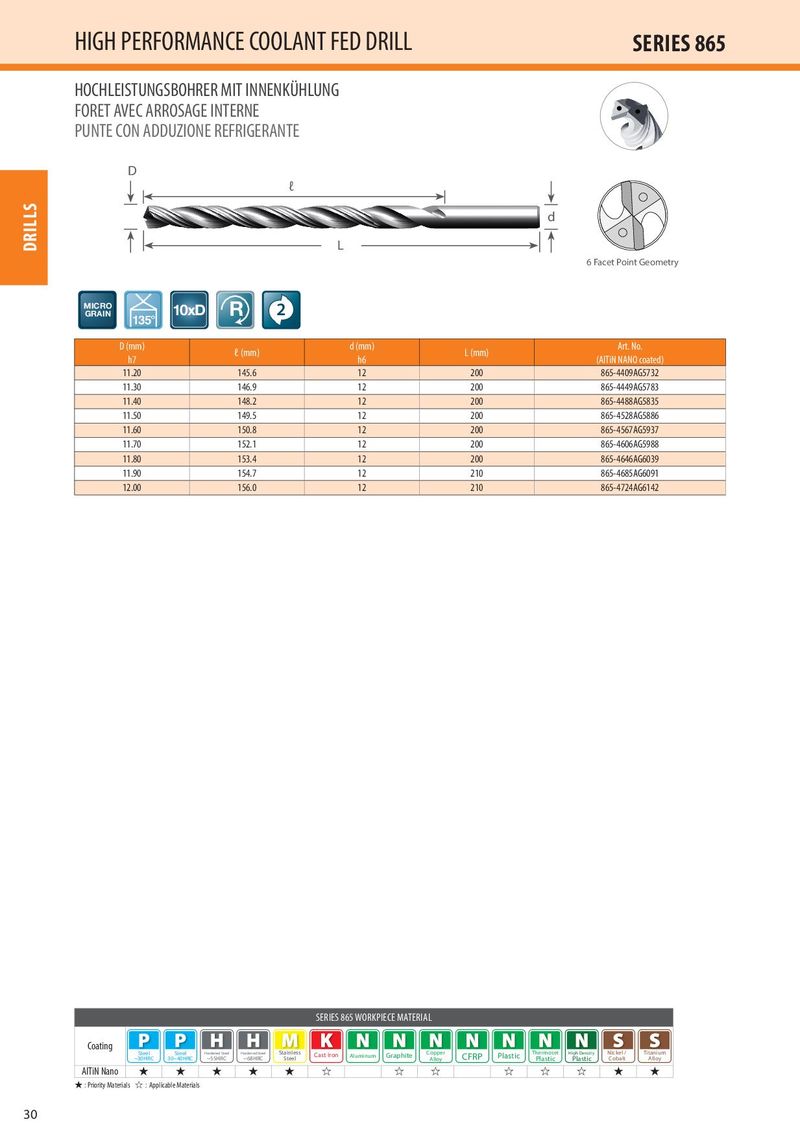

HIGH PERFORMANCE COOLANT FED DRILL SERIES 865 HOCHLEISTUNGSBOHRER MIT INNENKÜHLUNG FORET AVEC ARROSAGE INTERNE PUNTE CON ADDUZIONE REFRIGERANTE D ℓ d DRILLS L 6 Facet Point Geometry MICRO GRAIN 10xD R 2 135° D (mm) d (mm) Art. No. ℓ (mm) L (mm) h7 h6 (AlTiN NANO coated) 11.20 145.6 12 200 865-4409AG5732 11.30 146.9 12 200 865-4449AG5783 11.40 148.2 12 200 865-4488AG5835 11.50 149.5 12 200 865-4528AG5886 11.60 150.8 12 200 865-4567AG5937 11.70 152.1 12 200 865-4606AG5988 11.80 153.4 12 200 865-4646AG6039 11.90 154.7 12 210 865-4685AG6091 12.00 156.0 12 210 865-4724AG6142 SERIES 865 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy AlTiN Nano ★ ★ ★ ★ ★ ☆ ☆ ☆ ☆ ☆ ☆ ★ ★ ★ : Priority Materials ☆ : Applicable Materials 30 2015_KUTDE_MIT_Catalog_TZZ00058.indd 30 04.03.2016 07:52:22
