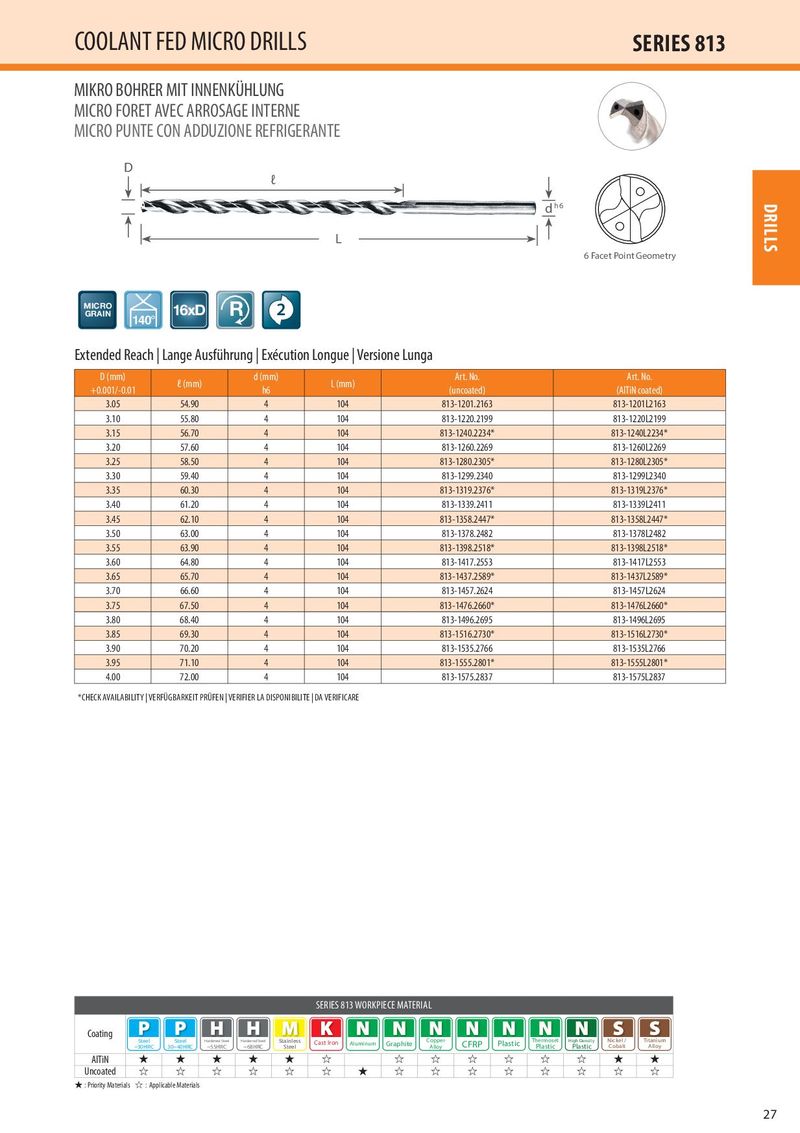

COOLANT FED MICRO DRILLS SERIES 813 MIKRO BOHRER MIT INNENKÜHLUNG MICRO FORET AVEC ARROSAGE INTERNE MICRO PUNTE CON ADDUZIONE REFRIGERANTE D ℓ DRILLS h6 d L 6 Facet Point Geometry MICRO GRAIN 16xD R 2 140° Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga D (mm) d (mm) Art. No. Art. No. ℓ (mm) L (mm) +0.001/-0.01 h6 (uncoated) (AlTiN coated) 3.05 54.90 4 104 813-1201.2163 813-1201L2163 3.10 55.80 4 104 813-1220.2199 813-1220L2199 3.15 56.70 4 104 813-1240.2234* 813-1240L2234* 3.20 57.60 4 104 813-1260.2269 813-1260L2269 3.25 58.50 4 104 813-1280.2305* 813-1280L2305* 3.30 59.40 4 104 813-1299.2340 813-1299L2340 3.35 60.30 4 104 813-1319.2376* 813-1319L2376* 3.40 61.20 4 104 813-1339.2411 813-1339L2411 3.45 62.10 4 104 813-1358.2447* 813-1358L2447* 3.50 63.00 4 104 813-1378.2482 813-1378L2482 3.55 63.90 4 104 813-1398.2518* 813-1398L2518* 3.60 64.80 4 104 813-1417.2553 813-1417L2553 3.65 65.70 4 104 813-1437.2589* 813-1437L2589* 3.70 66.60 4 104 813-1457.2624 813-1457L2624 3.75 67.50 4 104 813-1476.2660* 813-1476L2660* 3.80 68.40 4 104 813-1496.2695 813-1496L2695 3.85 69.30 4 104 813-1516.2730* 813-1516L2730* 3.90 70.20 4 104 813-1535.2766 813-1535L2766 3.95 71.10 4 104 813-1555.2801* 813-1555L2801* 4.00 72.00 4 104 813-1575.2837 813-1575L2837 *CHECK AVAILABILITY | VERFÜGBARKEIT PRÜFEN | VERIFIER LA DISPONIBILITE | DA VERIFICARE SERIES 813 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Thermoset High Density Nickel / Titanium Alloy CFRP Plastic Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ★ ★ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ ★ Uncoated ☆ ☆ ☆ ☆ ☆ ☆ ★ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 27 2015_KUTDE_MIT_Catalog_TZZ00058.indd 27 04.03.2016 07:52:11
