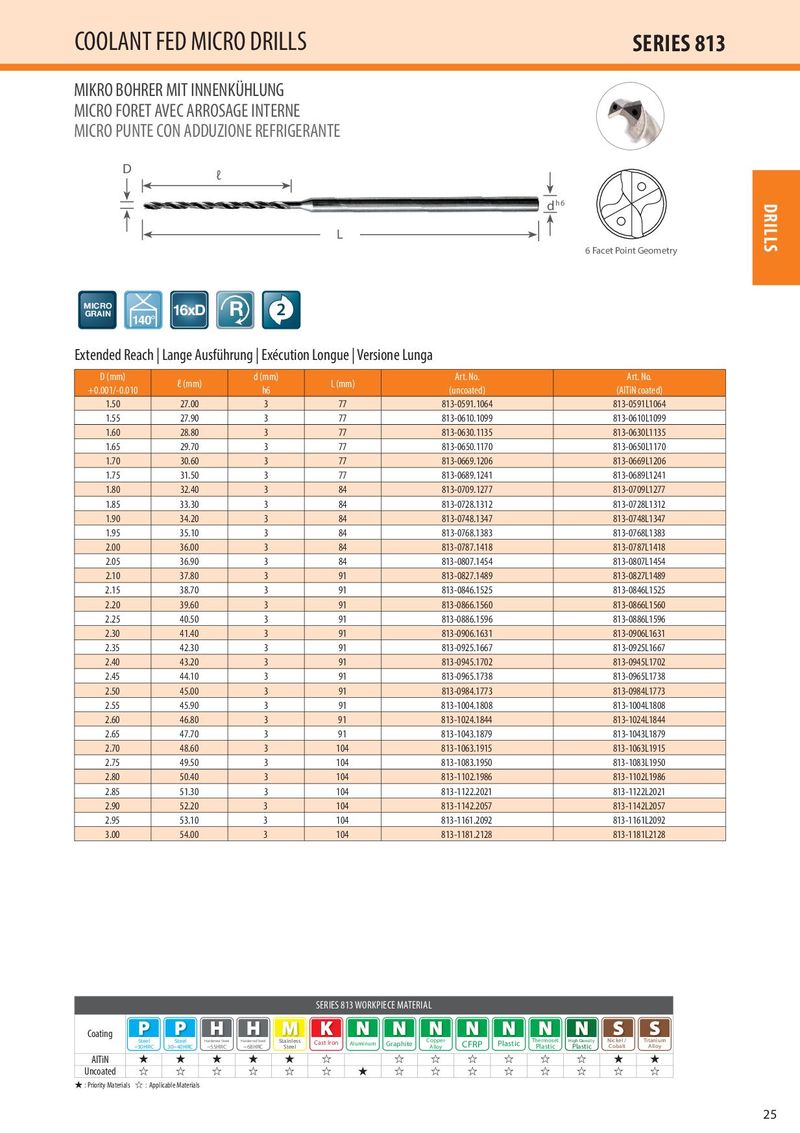

COOLANT FED MICRO DRILLS SERIES 813 MIKRO BOHRER MIT INNENKÜHLUNG MICRO FORET AVEC ARROSAGE INTERNE MICRO PUNTE CON ADDUZIONE REFRIGERANTE D ℓ h6 DRILLS d L 6 Facet Point Geometry MICRO GRAIN 16xD R 2 140° Extended Reach | Lange Ausführung | Exécution Longue | Versione Lunga D (mm) d (mm) Art. No. Art. No. ℓ (mm) L (mm) +0.001/-0.010 h6 (uncoated) (AlTiN coated) 1.50 27.00 3 77 813-0591.1064 813-0591L1064 1.55 27.90 3 77 813-0610.1099 813-0610L1099 1.60 28.80 3 77 813-0630.1135 813-0630L1135 1.65 29.70 3 77 813-0650.1170 813-0650L1170 1.70 30.60 3 77 813-0669.1206 813-0669L1206 1.75 31.50 3 77 813-0689.1241 813-0689L1241 1.80 32.40 3 84 813-0709.1277 813-0709L1277 1.85 33.30 3 84 813-0728.1312 813-0728L1312 1.90 34.20 3 84 813-0748.1347 813-0748L1347 1.95 35.10 3 84 813-0768.1383 813-0768L1383 2.00 36.00 3 84 813-0787.1418 813-0787L1418 2.05 36.90 3 84 813-0807.1454 813-0807L1454 2.10 37.80 3 91 813-0827.1489 813-0827L1489 2.15 38.70 3 91 813-0846.1525 813-0846L1525 2.20 39.60 3 91 813-0866.1560 813-0866L1560 2.25 40.50 3 91 813-0886.1596 813-0886L1596 2.30 41.40 3 91 813-0906.1631 813-0906L1631 2.35 42.30 3 91 813-0925.1667 813-0925L1667 2.40 43.20 3 91 813-0945.1702 813-0945L1702 2.45 44.10 3 91 813-0965.1738 813-0965L1738 2.50 45.00 3 91 813-0984.1773 813-0984L1773 2.55 45.90 3 91 813-1004.1808 813-1004L1808 2.60 46.80 3 91 813-1024.1844 813-1024L1844 2.65 47.70 3 91 813-1043.1879 813-1043L1879 2.70 48.60 3 104 813-1063.1915 813-1063L1915 2.75 49.50 3 104 813-1083.1950 813-1083L1950 2.80 50.40 3 104 813-1102.1986 813-1102L1986 2.85 51.30 3 104 813-1122.2021 813-1122L2021 2.90 52.20 3 104 813-1142.2057 813-1142L2057 2.95 53.10 3 104 813-1161.2092 813-1161L2092 3.00 54.00 3 104 813-1181.2128 813-1181L2128 SERIES 813 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ★ ★ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ ★ Uncoated ☆ ☆ ☆ ☆ ☆ ☆ ★ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 25 2015_KUTDE_MIT_Catalog_TZZ00058.indd 25 04.03.2016 07:52:04
