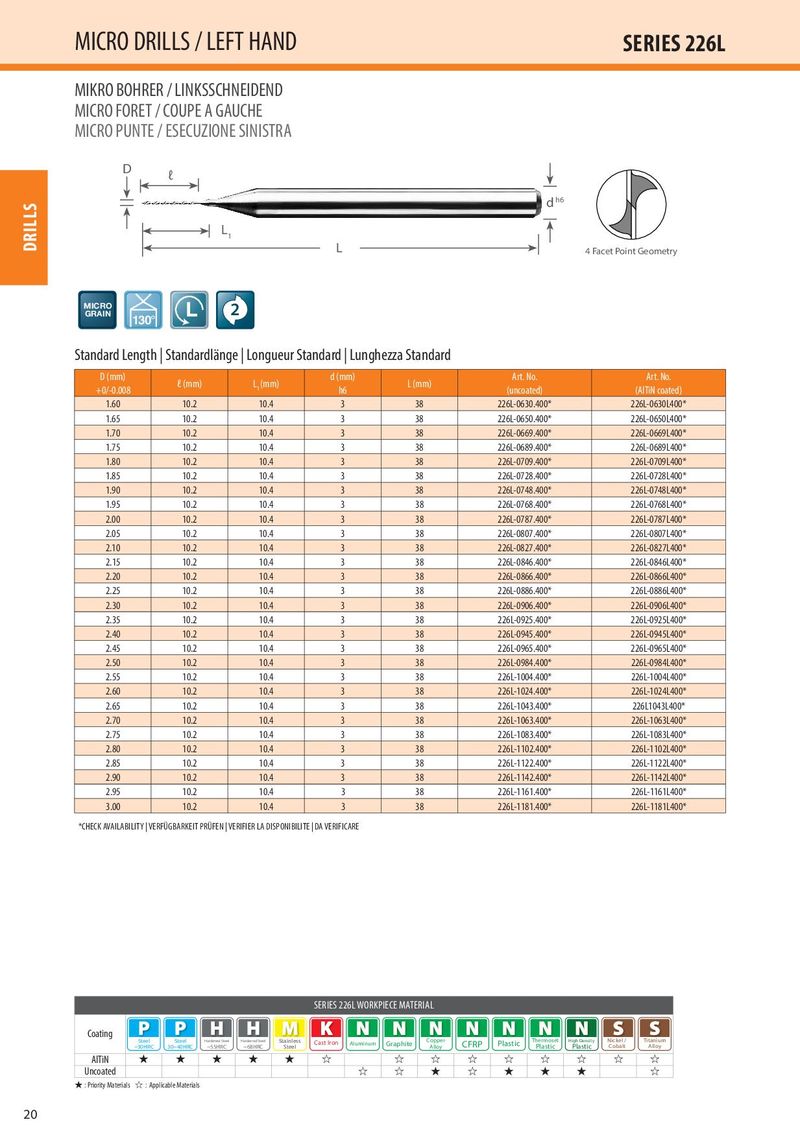

MICRO DRILLS / LEFT HAND SERIES 226L MIKRO BOHRER / LINKSSCHNEIDEND MICRO FORET / COUPE A GAUCHE MICRO PUNTE / ESECUZIONE SINISTRA D ℓ h6 d L 1 DRILLS L 4 Facet Point Geometry MICRO GRAIN L 2 130° Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard D (mm) d (mm) Art. No. Art. No. ℓ (mm) L (mm) L (mm) +0/-0.008 1 h6 (uncoated) (AlTiN coated) 1.60 10.2 10.4 3 38 226L-0630.400* 226L-0630L400* 1.65 10.2 10.4 3 38 226L-0650.400* 226L-0650L400* 1.70 10.2 10.4 3 38 226L-0669.400* 226L-0669L400* 1.75 10.2 10.4 3 38 226L-0689.400* 226L-0689L400* 1.80 10.2 10.4 3 38 226L-0709.400* 226L-0709L400* 1.85 10.2 10.4 3 38 226L-0728.400* 226L-0728L400* 1.90 10.2 10.4 3 38 226L-0748.400* 226L-0748L400* 1.95 10.2 10.4 3 38 226L-0768.400* 226L-0768L400* 2.00 10.2 10.4 3 38 226L-0787.400* 226L-0787L400* 2.05 10.2 10.4 3 38 226L-0807.400* 226L-0807L400* 2.10 10.2 10.4 3 38 226L-0827.400* 226L-0827L400* 2.15 10.2 10.4 3 38 226L-0846.400* 226L-0846L400* 2.20 10.2 10.4 3 38 226L-0866.400* 226L-0866L400* 2.25 10.2 10.4 3 38 226L-0886.400* 226L-0886L400* 2.30 10.2 10.4 3 38 226L-0906.400* 226L-0906L400* 2.35 10.2 10.4 3 38 226L-0925.400* 226L-0925L400* 2.40 10.2 10.4 3 38 226L-0945.400* 226L-0945L400* 2.45 10.2 10.4 3 38 226L-0965.400* 226L-0965L400* 2.50 10.2 10.4 3 38 226L-0984.400* 226L-0984L400* 2.55 10.2 10.4 3 38 226L-1004.400* 226L-1004L400* 2.60 10.2 10.4 3 38 226L-1024.400* 226L-1024L400* 2.65 10.2 10.4 3 38 226L-1043.400* 226L1043L400* 2.70 10.2 10.4 3 38 226L-1063.400* 226L-1063L400* 2.75 10.2 10.4 3 38 226L-1083.400* 226L-1083L400* 2.80 10.2 10.4 3 38 226L-1102.400* 226L-1102L400* 2.85 10.2 10.4 3 38 226L-1122.400* 226L-1122L400* 2.90 10.2 10.4 3 38 226L-1142.400* 226L-1142L400* 2.95 10.2 10.4 3 38 226L-1161.400* 226L-1161L400* 3.00 10.2 10.4 3 38 226L-1181.400* 226L-1181L400* *CHECK AVAILABILITY | VERFÜGBARKEIT PRÜFEN | VERIFIER LA DISPONIBILITE | DA VERIFICARE SERIES 226L WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ★ ★ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ Uncoated ☆ ☆ ★ ☆ ★ ★ ★ ☆ ★ : Priority Materials ☆ : Applicable Materials 20 2015_KUTDE_MIT_Catalog_TZZ00058.indd 20 04.03.2016 07:51:52
