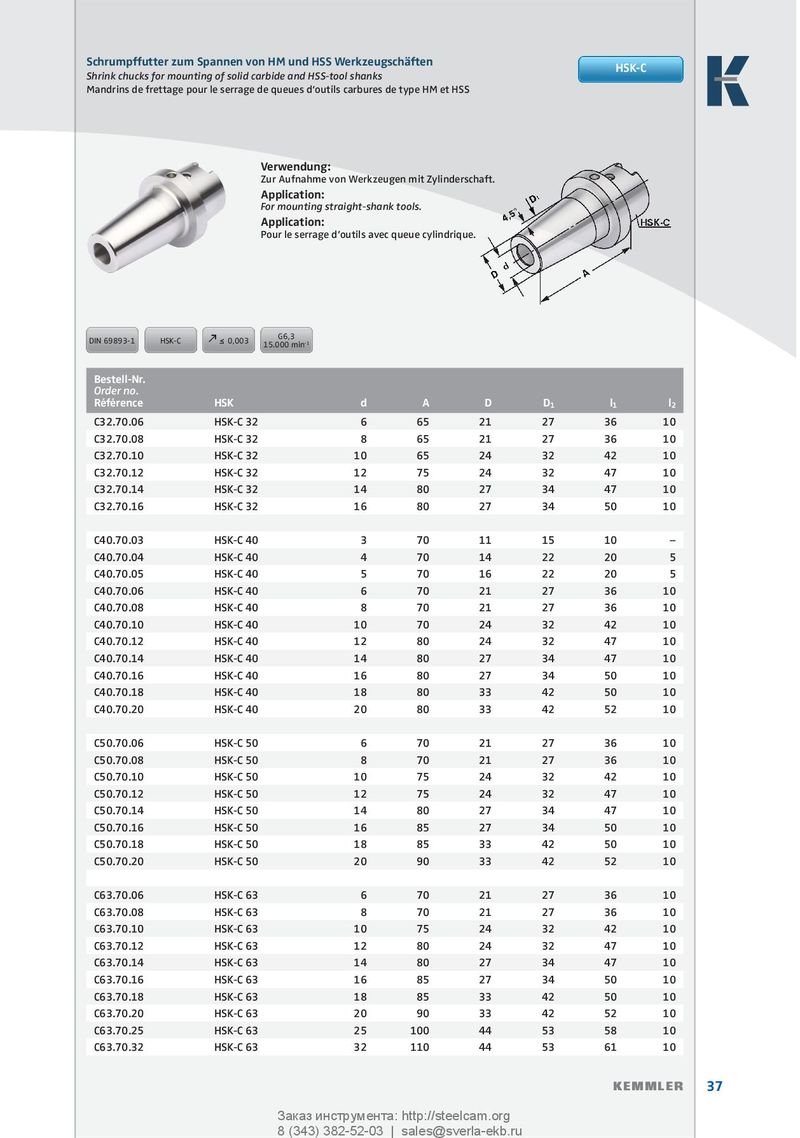

Каталог Kemmler усадочные патроны и усадочная техника - страница 37

Schrumpffutter zum Spannen von HM und HSS Werkzeugschäften HSK-C Shrink chucks for mounting of solid carbide and HSS-tool shanks Mandrins de frettage pour le serrage de queues d‘outils carbures de type HM et HSS Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft. Application: For mounting straight-shank tools. Application: Pour le serrage d’outils avec queue cylindrique. G6,3 DIN 69893-1 HSK-C k  ≤  0,003 15.000 min -1 Bestell-Nr. Order no. Référence HSK d A D D 1 l 1 l 2 C32.70.06 HSK-C 32 6 65 21 27 36 10 C32.70.08 HSK-C 32 8 65 21 27 36 10 C32.70.10 HSK-C 32 10 65 24 32 42 10 C32.70.12 HSK-C 32 12 75 24 32 47 10 C32.70.14 HSK-C 32 14 80 27 34 47 10 C32.70.16 HSK-C 32 16 80 27 34 50 10 C40.70.03 HSK-C 40 3 70 11 15 10 – C40.70.04 HSK-C 40 4 70 14 22 20 5 C40.70.05 HSK-C 40 5 70 16 22 20 5 C40.70.06 HSK-C 40 6 70 21 27 36 10 C40.70.08 HSK-C 40 8 70 21 27 36 10 C40.70.10 HSK-C 40 10 70 24 32 42 10 C40.70.12 HSK-C 40 12 80 24 32 47 10 C40.70.14 HSK-C 40 14 80 27 34 47 10 C40.70.16 HSK-C 40 16 80 27 34 50 10 C40.70.18 HSK-C 40 18 80 33 42 50 10 C40.70.20 HSK-C 40 20 80 33 42 52 10 C50.70.06 HSK-C 50 6 70 21 27 36 10 C50.70.08 HSK-C 50 8 70 21 27 36 10 C50.70.10 HSK-C 50 10 75 24 32 42 10 C50.70.12 HSK-C 50 12 75 24 32 47 10 C50.70.14 HSK-C 50 14 80 27 34 47 10 C50.70.16 HSK-C 50 16 85 27 34 50 10 C50.70.18 HSK-C 50 18 85 33 42 50 10 C50.70.20 HSK-C 50 20 90 33 42 52 10 C63.70.06 HSK-C 63 6 70 21 27 36 10 C63.70.08 HSK-C 63 8 70 21 27 36 10 C63.70.10 HSK-C 63 10 75 24 32 42 10 C63.70.12 HSK-C 63 12 80 24 32 47 10 C63.70.14 HSK-C 63 14 80 27 34 47 10 C63.70.16 HSK-C 63 16 85 27 34 50 10 C63.70.18 HSK-C 63 18 85 33 42 50 10 C63.70.20 HSK-C 63 20 90 33 42 52 10 C63.70.25 HSK-C 63 25 100 44 53 58 10 C63.70.32 HSK-C 63 32 110 44 53 61 10 KEMMLER 37 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
