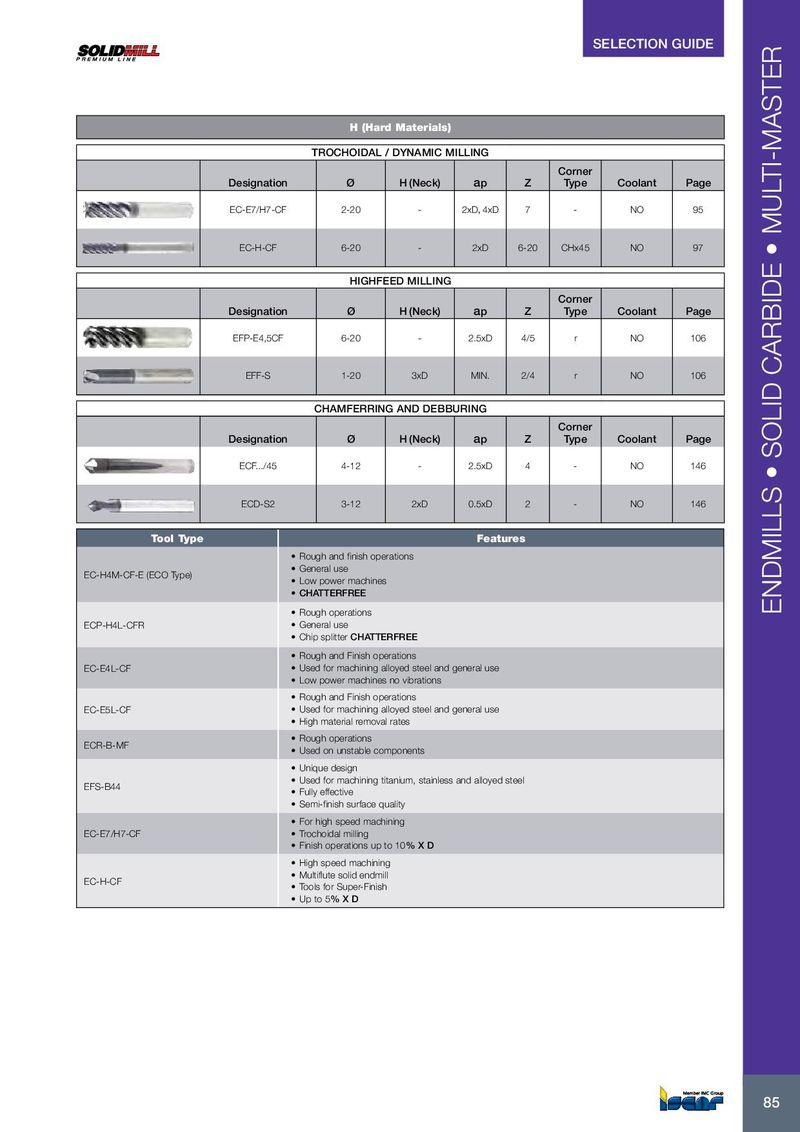

SELECTION GUIDE H (Hard Materials) TROCHOIDAL / DYNAMIC MILLING Corner Designation Ø H (Neck) ap Z Type Coolant Page EC-E7/H7-CF 2-20 - 2xD, 4xD 7 - NO 95 EC-H-CF 6-20 - 2xD 6-20 CHx45 NO 97 HIGHFEED MILLING Corner Designation Ø H (Neck) ap Z Type Coolant Page EFP-E4,5CF 6-20 - 2.5xD 4/5 r NO 106 EFF-S 1-20 3xD MIN. 2/4 r NO 106 CHAMFERRING AND DEBBURING Corner Designation Ø H (Neck) ap Z Type Coolant Page ECF.../45 4-12 - 2.5xD 4 - NO 146 ECD-S2 3-12 2xD 0.5xD 2 - NO 146 Tool Type Features • Rough and finish operations • General use EC-H4M-CF-E (ECO Type) • Low power machines • CHATTERFREE • Rough operations ENDMILLS • SOLID CARBIDE • MULTI-MASTER ECP-H4L-CFR • General use • Chip splitter CHATTERFREE • Rough and Finish operations EC-E4L-CF • Used for machining alloyed steel and general use • Low power machines no vibrations • Rough and Finish operations EC-E5L-CF • Used for machining alloyed steel and general use • High material removal rates • Rough operations ECR-B-MF • Used on unstable components • Unique design • Used for machining titanium, stainless and alloyed steel EFS-B44 • Fully effective • Semi-finish surface quality • For high speed machining EC-E7/H7-CF • Trochoidal milling • Finish operations up to 10% X D • High speed machining • Multiflute solid endmill EC-H-CF • Tools for Super-Finish • Up to 5% X D 85 85
