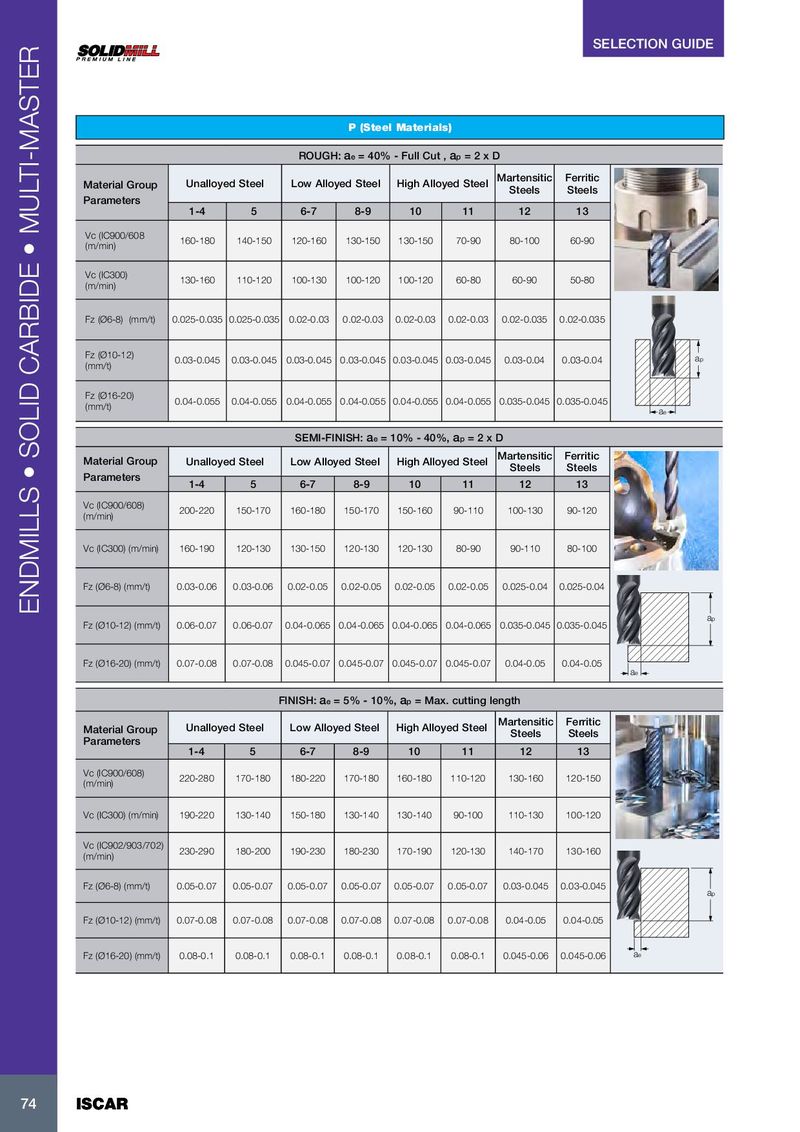

SELECTION GUIDE P (Steel Materials) ROUGH: a e = 40% - Full Cut , a p = 2 x D Martensitic Ferritic Material Group Unalloyed Steel Low Alloyed Steel High Alloyed Steel Steels Steels Parameters 1-4 5 6-7 8-9 10 11 12 13 Vc (IC900/608 160-180 140-150 120-160 130-150 130-150 70-90 80-100 60-90 (m/min) Vc (IC300) 130-160 110-120 100-130 100-120 100-120 60-80 60-90 50-80 (m/min) Fz (Ø6-8) (mm/t) 0.025-0.035 0.025-0.035 0.02-0.03 0.02-0.03 0.02-0.03 0.02-0.03 0.02-0.035 0.02-0.035 Fz (Ø10-12) 0.03-0.045 0.03-0.045 0.03-0.045 0.03-0.045 0.03-0.045 0.03-0.045 0.03-0.04 0.03-0.04 ap (mm/t) Fz (Ø16-20) 0.04-0.055 0.04-0.055 0.04-0.055 0.04-0.055 0.04-0.055 0.04-0.055 0.035-0.045 0.035-0.045 (mm/t) ae SEMI-FINISH: a e = 10% - 40%, a p = 2 x D Martensitic Ferritic Material Group Unalloyed Steel Low Alloyed Steel High Alloyed Steel Steels Steels Parameters 1-4 5 6-7 8-9 10 11 12 13 Vc (IC900/608) 200-220 150-170 160-180 150-170 150-160 90-110 100-130 90-120 (m/min) Vc (IC300) (m/min) 160-190 120-130 130-150 120-130 120-130 80-90 90-110 80-100 Fz (Ø6-8) (mm/t) 0.03-0.06 0.03-0.06 0.02-0.05 0.02-0.05 0.02-0.05 0.02-0.05 0.025-0.04 0.025-0.04 ENDMILLS • SOLID CARBIDE • MULTI-MASTER ap Fz (Ø10-12) (mm/t) 0.06-0.07 0.06-0.07 0.04-0.065 0.04-0.065 0.04-0.065 0.04-0.065 0.035-0.045 0.035-0.045 Fz (Ø16-20) (mm/t) 0.07-0.08 0.07-0.08 0.045-0.07 0.045-0.07 0.045-0.07 0.045-0.07 0.04-0.05 0.04-0.05 ae FINISH: a e = 5% - 10%, a p = Max. cutting length Martensitic Ferritic Material Group Unalloyed Steel Low Alloyed Steel High Alloyed Steel Steels Steels Parameters 1-4 5 6-7 8-9 10 11 12 13 Vc (IC900/608) 220-280 170-180 180-220 170-180 160-180 110-120 130-160 120-150 (m/min) Vc (IC300) (m/min) 190-220 130-140 150-180 130-140 130-140 90-100 110-130 100-120 Vc (IC902/903/702) 230-290 180-200 190-230 180-230 170-190 120-130 140-170 130-160 (m/min) Fz (Ø6-8) (mm/t) 0.05-0.07 0.05-0.07 0.05-0.07 0.05-0.07 0.05-0.07 0.05-0.07 0.03-0.045 0.03-0.045 ap Fz (Ø10-12) (mm/t) 0.07-0.08 0.07-0.08 0.07-0.08 0.07-0.08 0.07-0.08 0.07-0.08 0.04-0.05 0.04-0.05 Fz (Ø16-20) (mm/t) 0.08-0.1 0.08-0.1 0.08-0.1 0.08-0.1 0.08-0.1 0.08-0.1 0.045-0.06 0.045-0.06 ae 74 74 ISCAR ISCAR
