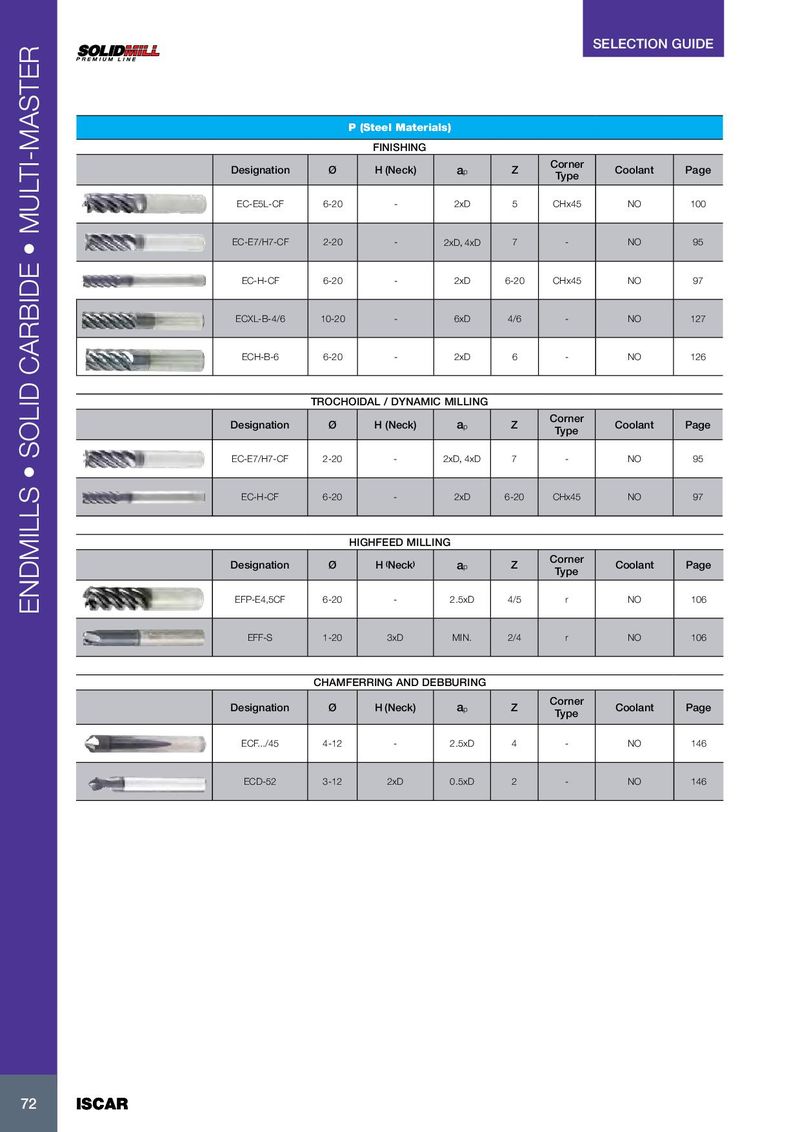

SELECTION GUIDE P (Steel Materials) FINISHING Corner Designation Ø H (Neck) a p Z Coolant Page Type EC-E5L-CF 6-20 - 2xD 5 CHx45 NO 100 EC-E7/H7-CF 2-20 - 2xD, 4xD 7 - NO 95 EC-H-CF 6-20 - 2xD 6-20 CHx45 NO 97 ECXL-B-4/6 10-20 - 6xD 4/6 - NO 127 ECH-B-6 6-20 - 2xD 6 - NO 126 TROCHOIDAL / DYNAMIC MILLING Corner Designation Ø H (Neck) a p Z Coolant Page Type EC-E7/H7-CF 2-20 - 2xD, 4xD 7 - NO 95 EC-H-CF 6-20 - 2xD 6-20 CHx45 NO 97 HIGHFEED MILLING Corner Designation Ø H ( Neck ) a p Z Coolant Page Type EFP-E4,5CF 6-20 - 2.5xD 4/5 r NO 106 ENDMILLS • SOLID CARBIDE • MULTI-MASTER EFF-S 1-20 3xD MIN. 2/4 r NO 106 CHAMFERRING AND DEBBURING Corner Designation Ø H (Neck) a p Z Coolant Page Type ECF.../45 4-12 - 2.5xD 4 - NO 146 ECD-52 3-12 2xD 0.5xD 2 - NO 146 72 72 ISCAR ISCAR
