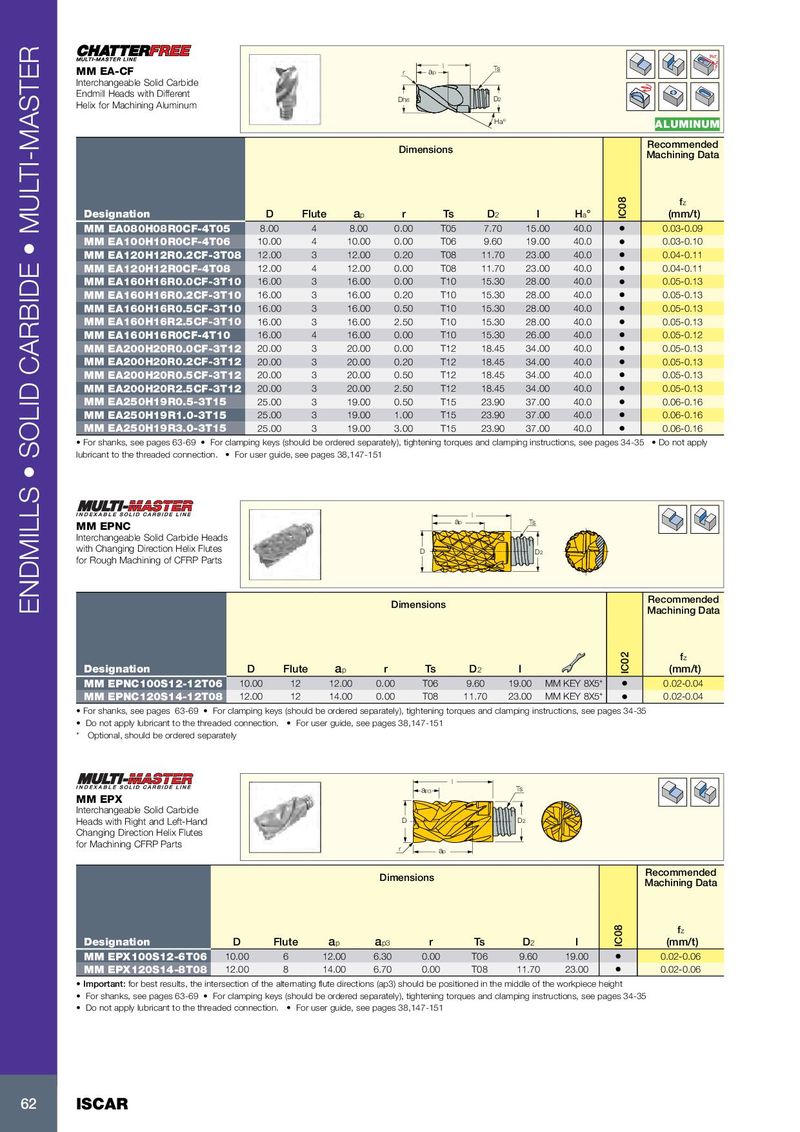

Rd° l MM EA-CF r ap Ts Interchangeable Solid Carbide Endmill Heads with Different Dh6 D2 Helix for Machining Aluminum Haº ALUMINUM Recommended Dimensions Machining Data f z Designation D Flute a p r Ts D 2 l H a ° IC08 (mm/t) MM EA080H08R0CF-4T05 8.00 4 8.00 0.00 T05 7.70 15.00 40.0 • 0.03-0.09 MM EA100H10R0CF-4T06 10.00 4 10.00 0.00 T06 9.60 19.00 40.0 • 0.03-0.10 MM EA120H12R0.2CF-3T08 12.00 3 12.00 0.20 T08 11.70 23.00 40.0 • 0.04-0.11 MM EA120H12R0CF-4T08 12.00 4 12.00 0.00 T08 11.70 23.00 40.0 • 0.04-0.11 MM EA160H16R0.0CF-3T10 16.00 3 16.00 0.00 T10 15.30 28.00 40.0 • 0.05-0.13 MM EA160H16R0.2CF-3T10 16.00 3 16.00 0.20 T10 15.30 28.00 40.0 • 0.05-0.13 MM EA160H16R0.5CF-3T10 16.00 3 16.00 0.50 T10 15.30 28.00 40.0 • 0.05-0.13 MM EA160H16R2.5CF-3T10 16.00 3 16.00 2.50 T10 15.30 28.00 40.0 • 0.05-0.13 MM EA160H16R0CF-4T10 16.00 4 16.00 0.00 T10 15.30 26.00 40.0 • 0.05-0.12 MM EA200H20R0.0CF-3T12 20.00 3 20.00 0.00 T12 18.45 34.00 40.0 • 0.05-0.13 MM EA200H20R0.2CF-3T12 20.00 3 20.00 0.20 T12 18.45 34.00 40.0 • 0.05-0.13 MM EA200H20R0.5CF-3T12 20.00 3 20.00 0.50 T12 18.45 34.00 40.0 • 0.05-0.13 MM EA200H20R2.5CF-3T12 20.00 3 20.00 2.50 T12 18.45 34.00 40.0 • 0.05-0.13 MM EA250H19R0.5-3T15 25.00 3 19.00 0.50 T15 23.90 37.00 40.0 • 0.06-0.16 MM EA250H19R1.0-3T15 25.00 3 19.00 1.00 T15 23.90 37.00 40.0 • 0.06-0.16 MM EA250H19R3.0-3T15 25.00 3 19.00 3.00 T15 23.90 37.00 40.0 • 0.06-0.16 • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 l ap Ts MM EPNC Interchangeable Solid Carbide Heads with Changing Direction Helix Flutes D D2 for Rough Machining of CFRP Parts Recommended Dimensions ENDMILLS • SOLID CARBIDE • MULTI-MASTER Machining Data f z Designation D Flute a p r Ts D 2 l IC02 (mm/t) MM EPNC100S12-12T06 10.00 12 12.00 0.00 T06 9.60 19.00 MM KEY 8X5* • 0.02-0.04 MM EPNC120S14-12T08 12.00 12 14.00 0.00 T08 11.70 23.00 MM KEY 8X5* • 0.02-0.04 • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 * Optional, should be ordered separately l ap 3 Ts MM EPX Interchangeable Solid Carbide Heads with Right and Left-Hand D D2 Changing Direction Helix Flutes for Machining CFRP Parts r ap Recommended Dimensions Machining Data f z Designation D Flute a p a p3 r Ts D 2 l IC08 (mm/t) MM EPX100S12-6T06 10.00 6 12.00 6.30 0.00 T06 9.60 19.00 • 0.02-0.06 MM EPX120S14-8T08 12.00 8 14.00 6.70 0.00 T08 11.70 23.00 • 0.02-0.06 • Important: for best results, the intersection of the alternating flute directions (ap3) should be positioned in the middle of the workpiece height • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 62 ISCAR
