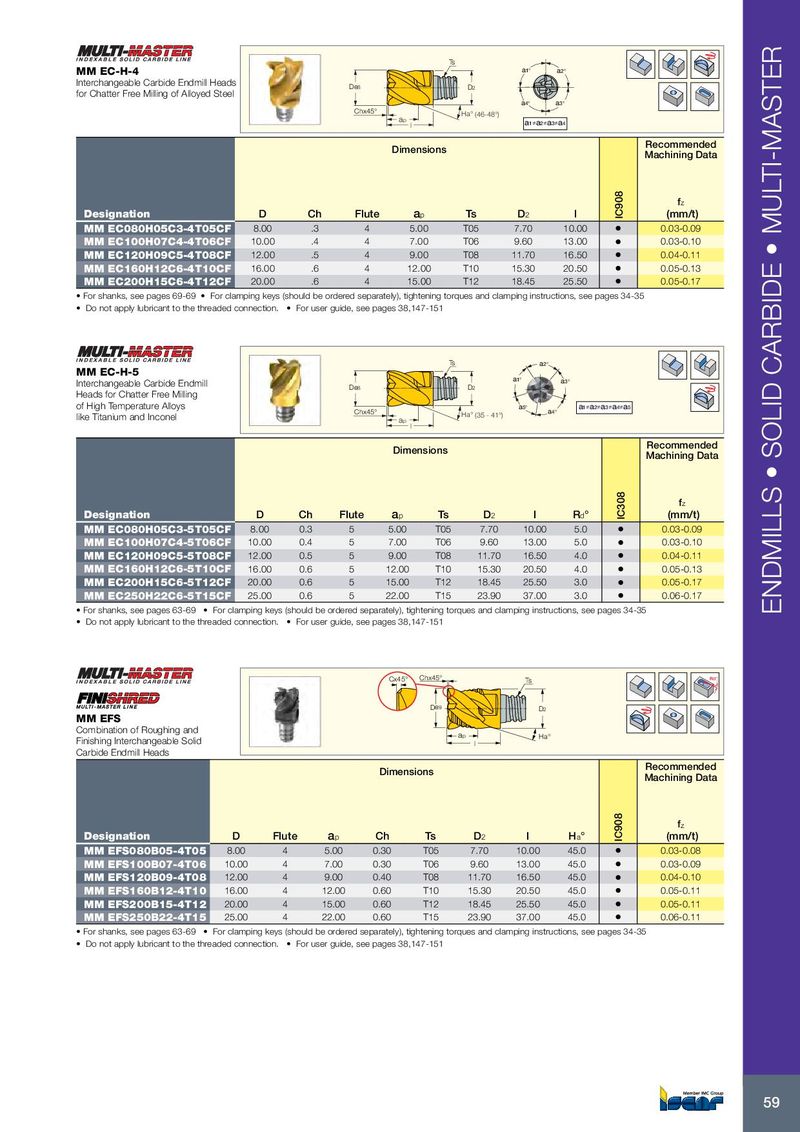

Каталог Iscar вращающийся инструмент 2017 - страница 63

Ts MM EC-H-4 a1° a2° Interchangeable Carbide Endmill Heads De8 D2 for Chatter Free Milling of Alloyed Steel a4° a3° Chx45° Ha° (46-48°) ap l a1≠a2≠a3≠a4 Recommended Dimensions Machining Data f z Designation D Ch Flute a p Ts D 2 l IC908 (mm/t) MM EC080H05C3-4T05CF 8.00 .3 4 5.00 T05 7.70 10.00 • 0.03-0.09 MM EC100H07C4-4T06CF 10.00 .4 4 7.00 T06 9.60 13.00 • 0.03-0.10 MM EC120H09C5-4T08CF 12.00 .5 4 9.00 T08 11.70 16.50 • 0.04-0.11 MM EC160H12C6-4T10CF 16.00 .6 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC200H15C6-4T12CF 20.00 .6 4 15.00 T12 18.45 25.50 • 0.05-0.17 • For shanks, see pages 69-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 Ts a2° MM EC-H-5 a1° Interchangeable Carbide Endmill a3° De8 D2 Heads for Chatter Free Milling of High Temperature Alloys a5° Chx45° like Titanium and Inconel Ha° a4° a1≠a2≠a3≠a4≠a5 (35 - 41°) ap l Recommended Dimensions Machining Data f z Designation D Ch Flute a p Ts D 2 l R d ° IC308 (mm/t) MM EC080H05C3-5T05CF 8.00 0.3 5 5.00 T05 7.70 10.00 5.0 • 0.03-0.09 MM EC100H07C4-5T06CF 10.00 0.4 5 7.00 T06 9.60 13.00 5.0 • 0.03-0.10 MM EC120H09C5-5T08CF 12.00 0.5 5 9.00 T08 11.70 16.50 4.0 • 0.04-0.11 MM EC160H12C6-5T10CF 16.00 0.6 5 12.00 T10 15.30 20.50 4.0 • 0.05-0.13 MM EC200H15C6-5T12CF 20.00 0.6 5 15.00 T12 18.45 25.50 3.0 • 0.05-0.17 MM EC250H22C6-5T15CF 25.00 0.6 5 22.00 T15 23.90 37.00 3.0 • 0.06-0.17 • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 ENDMILLS • SOLID CARBIDE • MULTI-MASTER • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 Cx45° Chx45° Ts Rd° D e9 D2 MM EFS Combination of Roughing and ap Ha° Finishing Interchangeable Solid l Carbide Endmill Heads Recommended Dimensions Machining Data f z Designation D Flute a p Ch Ts D 2 l H a ° IC908 (mm/t) MM EFS080B05-4T05 8.00 4 5.00 0.30 T05 7.70 10.00 45.0 • 0.03-0.08 MM EFS100B07-4T06 10.00 4 7.00 0.30 T06 9.60 13.00 45.0 • 0.03-0.09 MM EFS120B09-4T08 12.00 4 9.00 0.40 T08 11.70 16.50 45.0 • 0.04-0.10 MM EFS160B12-4T10 16.00 4 12.00 0.60 T10 15.30 20.50 45.0 • 0.05-0.11 MM EFS200B15-4T12 20.00 4 15.00 0.60 T12 18.45 25.50 45.0 • 0.05-0.11 MM EFS250B22-4T15 25.00 4 22.00 0.60 T15 23.90 37.00 45.0 • 0.06-0.11 • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 59
