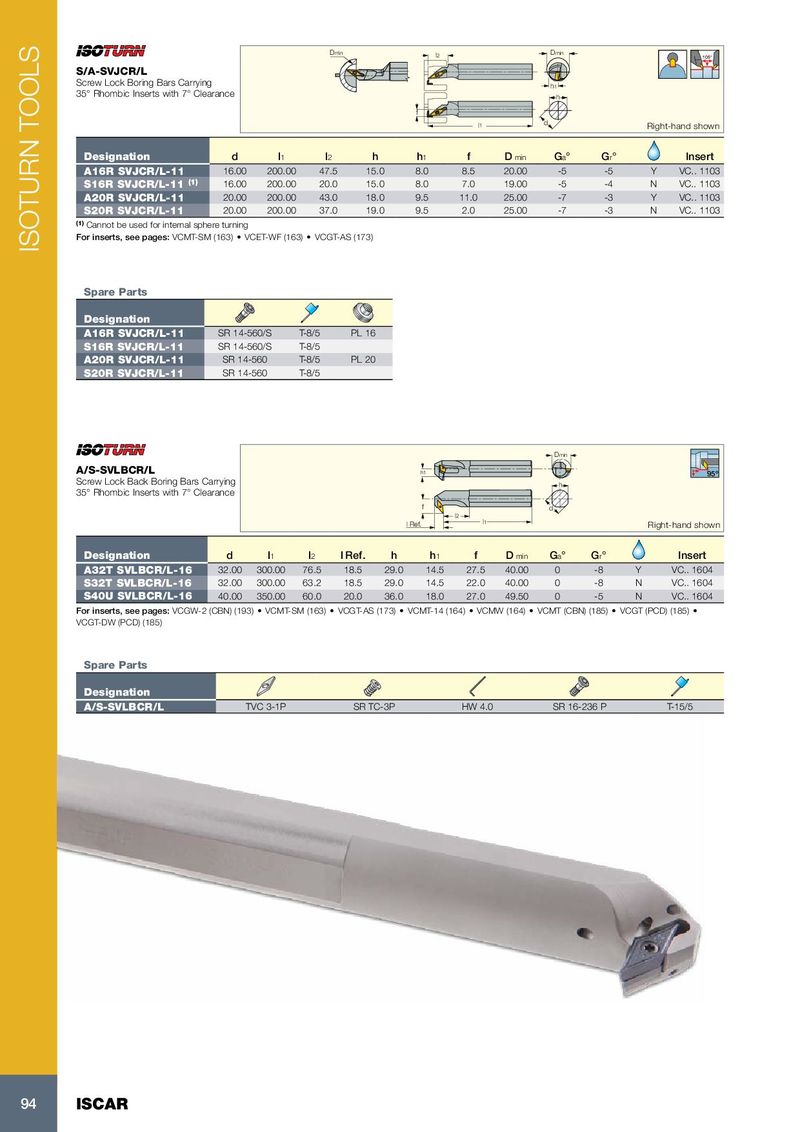

Dmin l 2 Dmin 105° 142º S/A-SVJCR/L 93º Screw Lock Boring Bars Carrying 52° h1 35° Rhombic Inserts with 7° Clearance h f l 1 d Right-hand shown Designation d l 1 l 2 h h 1 f D min G a ° G r ° Insert A16R SVJCR/L-11 16.00 200.00 47.5 15.0 8.0 8.5 20.00 -5 -5 Y VC.. 1103 S16R SVJCR/L-11 (1) 16.00 200.00 20.0 15.0 8.0 7.0 19.00 -5 -4 N VC.. 1103 A20R SVJCR/L-11 20.00 200.00 43.0 18.0 9.5 11.0 25.00 -7 -3 Y VC.. 1103 S20R SVJCR/L-11 20.00 200.00 37.0 19.0 9.5 2.0 25.00 -7 -3 N VC.. 1103 (1) Cannot be used for internal sphere turning For inserts, see pages: VCMT-SM (163) • VCET-WF (163) • VCGT-AS (173) ISOTURN TOOLS Spare Parts Designation A16R SVJCR/L-11 SR 14-560/S T-8/5 PL 16 S16R SVJCR/L-11 SR 14-560/S T-8/5 A20R SVJCR/L-11 SR 14-560 T-8/5 PL 20 S20R SVJCR/L-11 SR 14-560 T-8/5 Dmin A/S-SVLBCR/L h1 95º Screw Lock Back Boring Bars Carrying h 35° Rhombic Inserts with 7° Clearance f d l 2 l Ref. l 1 Right-hand shown Designation d l 1 l 2 l Ref. h h 1 f D min G a ° G r ° Insert A32T SVLBCR/L-16 32.00 300.00 76.5 18.5 29.0 14.5 27.5 40.00 0 -8 Y VC.. 1604 S32T SVLBCR/L-16 32.00 300.00 63.2 18.5 29.0 14.5 22.0 40.00 0 -8 N VC.. 1604 S40U SVLBCR/L-16 40.00 350.00 60.0 20.0 36.0 18.0 27.0 49.50 0 -5 N VC.. 1604 For inserts, see pages: VCGW-2 (CBN) (193) • VCMT-SM (163) • VCGT-AS (173) • VCMT-14 (164) • VCMW (164) • VCMT (CBN) (185) • VCGT (PCD) (185) • VCGT-DW (PCD) (185) Spare Parts Designation A/S-SVLBCR/L TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 94 ISCAR
