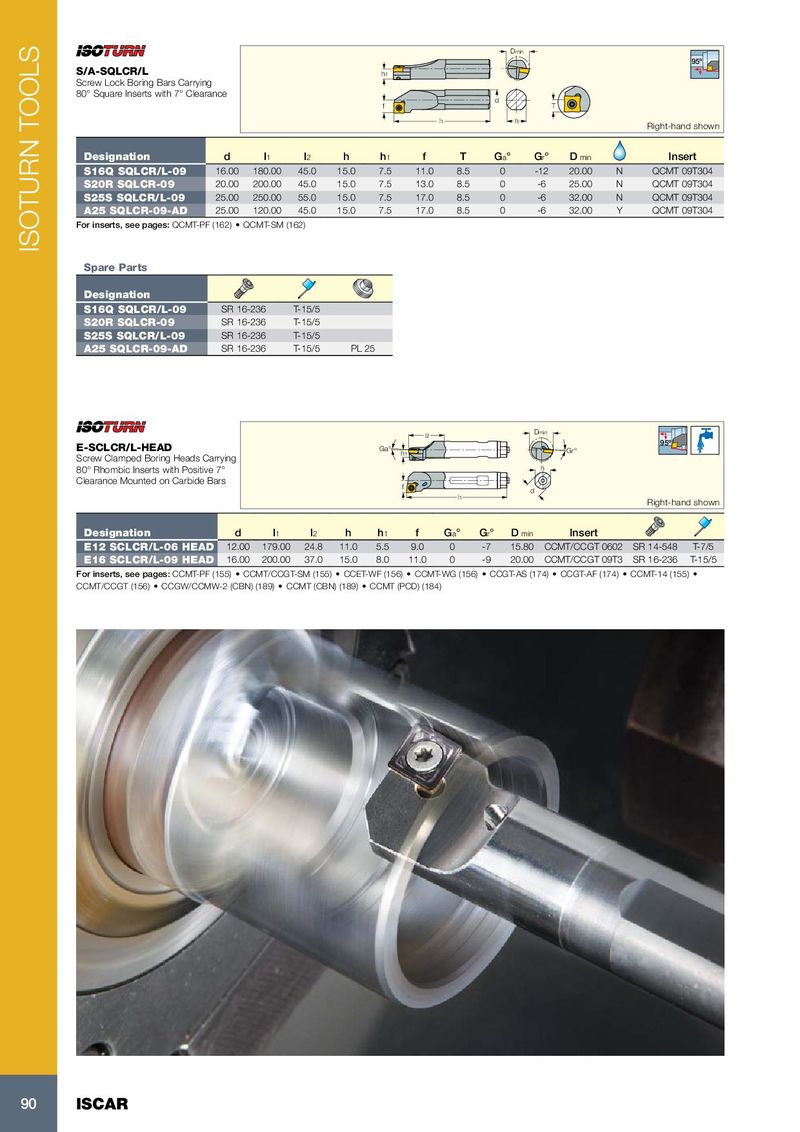

Dmin 95º S/A-SQLCR/L h1 Screw Lock Boring Bars Carrying 80° Square Inserts with 7° Clearance d f T l1 h Right-hand shown Designation d l 1 l 2 h h 1 f T G a ° G r ° D min Insert S16Q SQLCR/L-09 16.00 180.00 45.0 15.0 7.5 11.0 8.5 0 -12 20.00 N QCMT 09T304 S20R SQLCR-09 20.00 200.00 45.0 15.0 7.5 13.0 8.5 0 -6 25.00 N QCMT 09T304 S25S SQLCR/L-09 25.00 250.00 55.0 15.0 7.5 17.0 8.5 0 -6 32.00 N QCMT 09T304 A25 SQLCR-09-AD 25.00 120.00 45.0 15.0 7.5 17.0 8.5 0 -6 32.00 Y QCMT 09T304 For inserts, see pages: QCMT-PF (162) • QCMT-SM (162) ISOTURN TOOLS Spare Parts Designation S16Q SQLCR/L-09 SR 16-236 T-15/5 S20R SQLCR-09 SR 16-236 T-15/5 S25S SQLCR/L-09 SR 16-236 T-15/5 A25 SQLCR-09-AD SR 16-236 T-15/5 PL 25 l 2 Dmin 95º E-SCLCR/L-HEAD Ga° h 1 Gr° Screw Clamped Boring Heads Carrying 80° Rhombic Inserts with Positive 7° h Clearance Mounted on Carbide Bars f d l 1 Right-hand shown Designation d l 1 l 2 h h 1 f G a ° G r ° D min Insert E12 SCLCR/L-06 HEAD 12.00 179.00 24.8 11.0 5.5 9.0 0 -7 15.80 CCMT/CCGT 0602 SR 14-548 T-7/5 E16 SCLCR/L-09 HEAD 16.00 200.00 37.0 15.0 8.0 11.0 0 -9 20.00 CCMT/CCGT 09T3 SR 16-236 T-15/5 For inserts, see pages: CCMT-PF (155) • CCMT/CCGT-SM (155) • CCET-WF (156) • CCMT-WG (156) • CCGT-AS (174) • CCGT-AF (174) • CCMT-14 (155) • CCMT/CCGT (156) • CCGW/CCMW-2 (CBN) (189) • CCMT (CBN) (189) • CCMT (PCD) (184) 90 ISCAR
