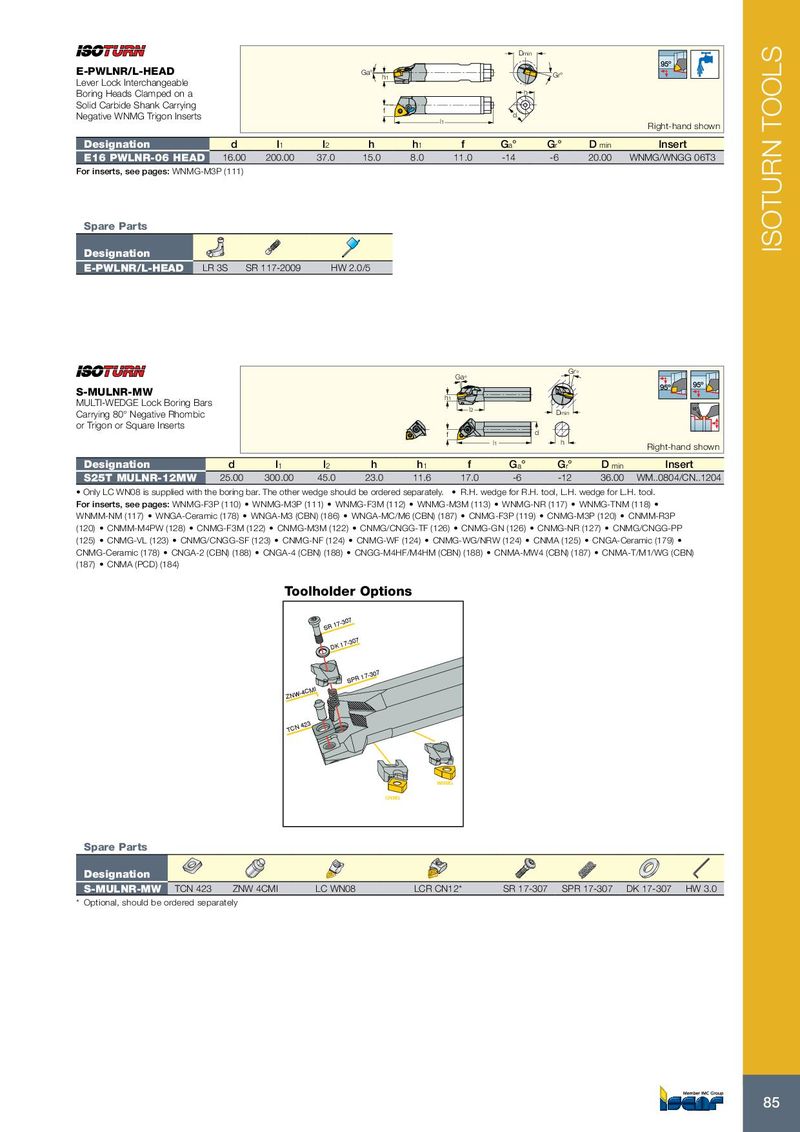

Каталог Iscar токарный инструмент 2017 - страница 89

Dmin 95º E-PWLNR/L-HEAD Ga° h1 Gr° Lever Lock Interchangeable Boring Heads Clamped on a h Solid Carbide Shank Carrying f Negative WNMG Trigon Inserts d l1 Right-hand shown Designation d l 1 l 2 h h 1 f G a ° G r ° D min Insert E16 PWLNR-06 HEAD 16.00 200.00 37.0 15.0 8.0 11.0 -14 -6 20.00 WNMG/WNGG 06T3 For inserts, see pages: WNMG-M3P (111) Spare Parts ISOTURN TOOLS Designation E-PWLNR/L-HEAD LR 3S SR 117-2009 HW 2.0/5 Gr ° Ga ° 95º 95º S-MULNR-MW h 1 MULTI-WEDGE Lock Boring Bars l 2 15° Carrying 80° Negative Rhombic Dmin or Trigon or Square Inserts f d l 1 h Right-hand shown Designation d l 1 l 2 h h 1 f G a ° G r ° D min Insert S25T MULNR-12MW 25.00 300.00 45.0 23.0 11.6 17.0 -6 -12 36.00 WM..0804/CN..1204 • Only LC WN08 is supplied with the boring bar. The other wedge should be ordered separately. • R.H. wedge for R.H. tool, L.H. wedge for L.H. tool. For inserts, see pages: WNMG-F3P (110) • WNMG-M3P (111) • WNMG-F3M (112) • WNMG-M3M (113) • WNMG-NR (117) • WNMG-TNM (118) • WNMM-NM (117) • WNGA-Ceramic (178) • WNGA-M3 (CBN) (186) • WNGA-MC/M6 (CBN) (187) • CNMG-F3P (119) • CNMG-M3P (120) • CNMM-R3P (120) • CNMM-M4PW (128) • CNMG-F3M (122) • CNMG-M3M (122) • CNMG/CNGG-TF (126) • CNMG-GN (126) • CNMG-NR (127) • CNMG/CNGG-PP (125) • CNMG-VL (123) • CNMG/CNGG-SF (123) • CNMG-NF (124) • CNMG-WF (124) • CNMG-WG/NRW (124) • CNMA (125) • CNGA-Ceramic (179) • CNMG-Ceramic (178) • CNGA-2 (CBN) (188) • CNGA-4 (CBN) (188) • CNGG-M4HF/M4HM (CBN) (188) • CNMA-MW4 (CBN) (187) • CNMA-T/M1/WG (CBN) (187) • CNMA (PCD) (184) Toolholder Options SR 17-307 DK 17-307 SPR 17-307 ZNW-4CMI MULNR/L-12M#### S-MULNR/L TCN 423 WNMG LC WN08 CNMG (_WNM_ 08(43 LCR CN12 / LCL CN12 (_CNM_ 12(43 7102122 Spare Parts Designation S-MULNR-MW TCN 423 ZNW 4CMI LC WN08 LCR CN12* SR 17-307 SPR 17-307 DK 17-307 HW 3.0 * Optional, should be ordered separately 85
