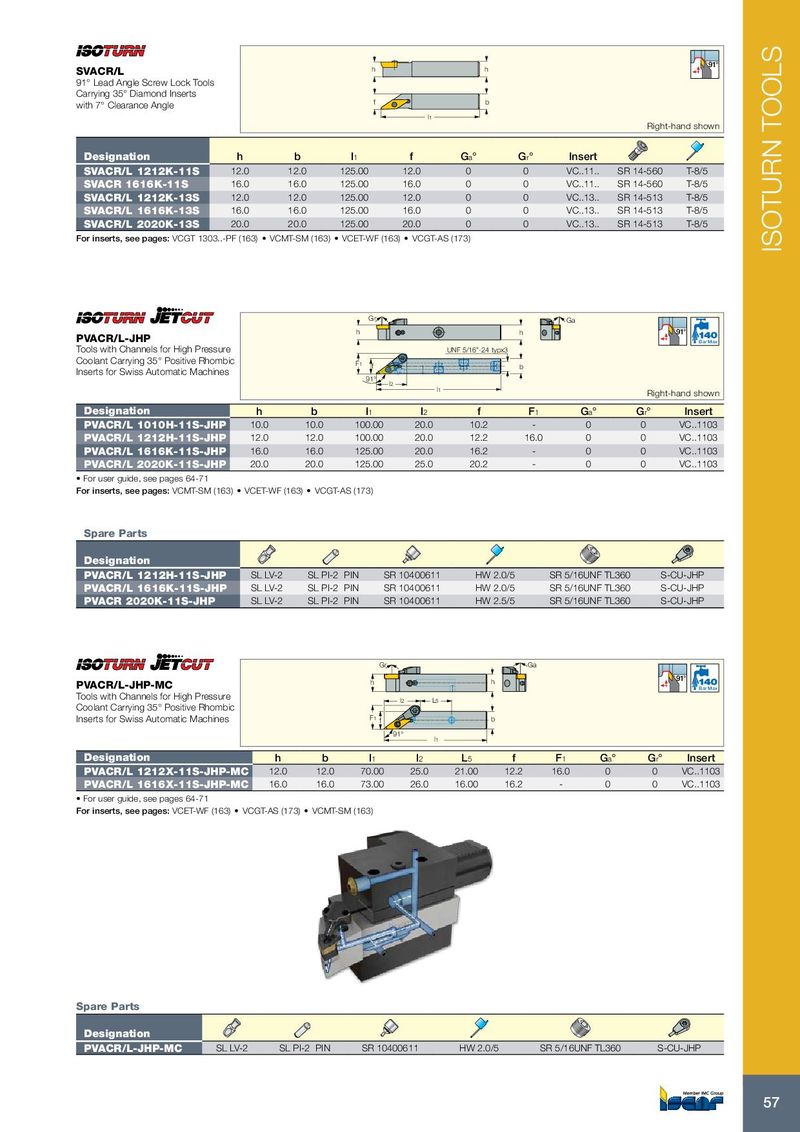

91° SVACR/L h h 91° Lead Angle Screw Lock Tools Carrying 35° Diamond Inserts with 7° Clearance Angle f b l 1 Right-hand shown Designation h b l 1 f G a ° G r ° Insert SVACR/L 1212K-11S 12.0 12.0 125.00 12.0 0 0 VC..11.. SR 14-560 T-8/5 SVACR 1616K-11S 16.0 16.0 125.00 16.0 0 0 VC..11.. SR 14-560 T-8/5 SVACR/L 1212K-13S 12.0 12.0 125.00 12.0 0 0 VC..13.. SR 14-513 T-8/5 SVACR/L 1616K-13S 16.0 16.0 125.00 16.0 0 0 VC..13.. SR 14-513 T-8/5 SVACR/L 2020K-13S 20.0 20.0 125.00 20.0 0 0 VC..13.. SR 14-513 T-8/5 For inserts, see pages: VCGT 1303..-PF (163) • VCMT-SM (163) • VCET-WF (163) • VCGT-AS (173) ISOTURN TOOLS Gr Ga h h 91° PVACR/L-JHP Bar Max Tools with Channels for High Pressure UNF 5/16”-24 typx3 Coolant Carrying 35° Positive Rhombic F1 f b Inserts for Swiss Automatic Machines 91° l2 l1 Right-hand shown Designation h b l 1 l 2 f F 1 G a ° G r ° Insert PVACR/L 1010H-11S-JHP 10.0 10.0 100.00 20.0 10.2 - 0 0 VC..1103 PVACR/L 1212H-11S-JHP 12.0 12.0 100.00 20.0 12.2 16.0 0 0 VC..1103 PVACR/L 1616K-11S-JHP 16.0 16.0 125.00 20.0 16.2 - 0 0 VC..1103 PVACR/L 2020K-11S-JHP 20.0 20.0 125.00 25.0 20.2 - 0 0 VC..1103 • For user guide, see pages 64-71 For inserts, see pages: VCMT-SM (163) • VCET-WF (163) • VCGT-AS (173) Spare Parts Designation PVACR/L 1212H-11S-JHP SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 SR 5/16UNF TL360 S-CU-JHP PVACR/L 1616K-11S-JHP SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 SR 5/16UNF TL360 S-CU-JHP PVACR 2020K-11S-JHP SL LV-2 SL PI-2 PIN SR 10400611 HW 2.5/5 SR 5/16UNF TL360 S-CU-JHP Gr Ga h h 91° PVACR/L-JHP-MC Bar Max Tools with Channels for High Pressure l2 L5 Coolant Carrying 35° Positive Rhombic Inserts for Swiss Automatic Machines F1 f b 91° l1 Designation h b l 1 l 2 L 5 f F 1 G a ° G r ° Insert PVACR/L 1212X-11S-JHP-MC 12.0 12.0 70.00 25.0 21.00 12.2 16.0 0 0 VC..1103 PVACR/L 1616X-11S-JHP-MC 16.0 16.0 73.00 26.0 16.00 16.2 - 0 0 VC..1103 • For user guide, see pages 64-71 For inserts, see pages: VCET-WF (163) • VCGT-AS (173) • VCMT-SM (163) Spare Parts Designation PVACR/L-JHP-MC SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 SR 5/16UNF TL360 S-CU-JHP 57
