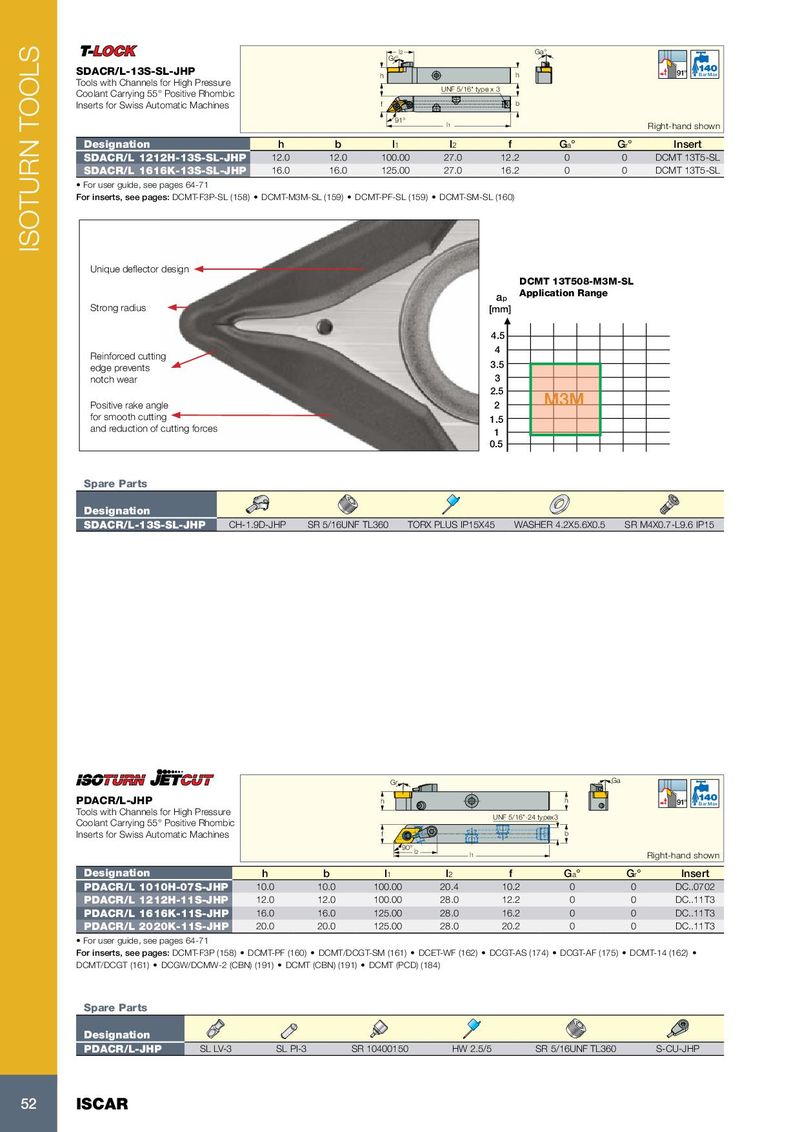

l2 Ga° Gr° SDACR/L-13S-SL-JHP h h 91° Bar Max Tools with Channels for High Pressure UNF 5/16" type x 3 Coolant Carrying 55° Positive Rhombic Inserts for Swiss Automatic Machines f b 91° l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert SDACR/L 1212H-13S-SL-JHP 12.0 12.0 100.00 27.0 12.2 0 0 DCMT 13T5-SL SDACR/L 1616K-13S-SL-JHP 16.0 16.0 125.00 27.0 16.2 0 0 DCMT 13T5-SL • For user guide, see pages 64-71 For inserts, see pages: DCMT-F3P-SL (158) • DCMT-M3M-SL (159) • DCMT-PF-SL (159) • DCMT-SM-SL (160) ISOTURN TOOLS Unique deflector design DCMT 13T508-M3M-SL Application Range ap Strong radius [mm] 4.5 4 Reinforced cutting edge prevents 3.5 notch wear 3 2.5 Positive rake angle 2 M3M for smooth cutting 1.5 and reduction of cutting forces 1 0.5 0.1 0.15 0.2 0.25 0.3 0.35 f [mm/rev] Spare Parts Designation SDACR/L-13S-SL-JHP CH-1.9D-JHP SR 5/16UNF TL360 TORX PLUS IP15X45 WASHER 4.2X5.6X0.5 SR M4X0.7-L9.6 IP15 Gr Ga PDACR/L-JHP h h 91° Bar Max Tools with Channels for High Pressure UNF 5/16”-24 typex3 Coolant Carrying 55° Positive Rhombic Inserts for Swiss Automatic Machines f b 90° l2 l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert PDACR/L 1010H-07S-JHP 10.0 10.0 100.00 20.4 10.2 0 0 DC..0702 PDACR/L 1212H-11S-JHP 12.0 12.0 100.00 28.0 12.2 0 0 DC..11T3 PDACR/L 1616K-11S-JHP 16.0 16.0 125.00 28.0 16.2 0 0 DC..11T3 PDACR/L 2020K-11S-JHP 20.0 20.0 125.00 28.0 20.2 0 0 DC..11T3 • For user guide, see pages 64-71 For inserts, see pages: DCMT-F3P (158) • DCMT-PF (160) • DCMT/DCGT-SM (161) • DCET-WF (162) • DCGT-AS (174) • DCGT-AF (175) • DCMT-14 (162) • DCMT/DCGT (161) • DCGW/DCMW-2 (CBN) (191) • DCMT (CBN) (191) • DCMT (PCD) (184) Spare Parts Designation PDACR/L-JHP SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 SR 5/16UNF TL360 S-CU-JHP 52 ISCAR
