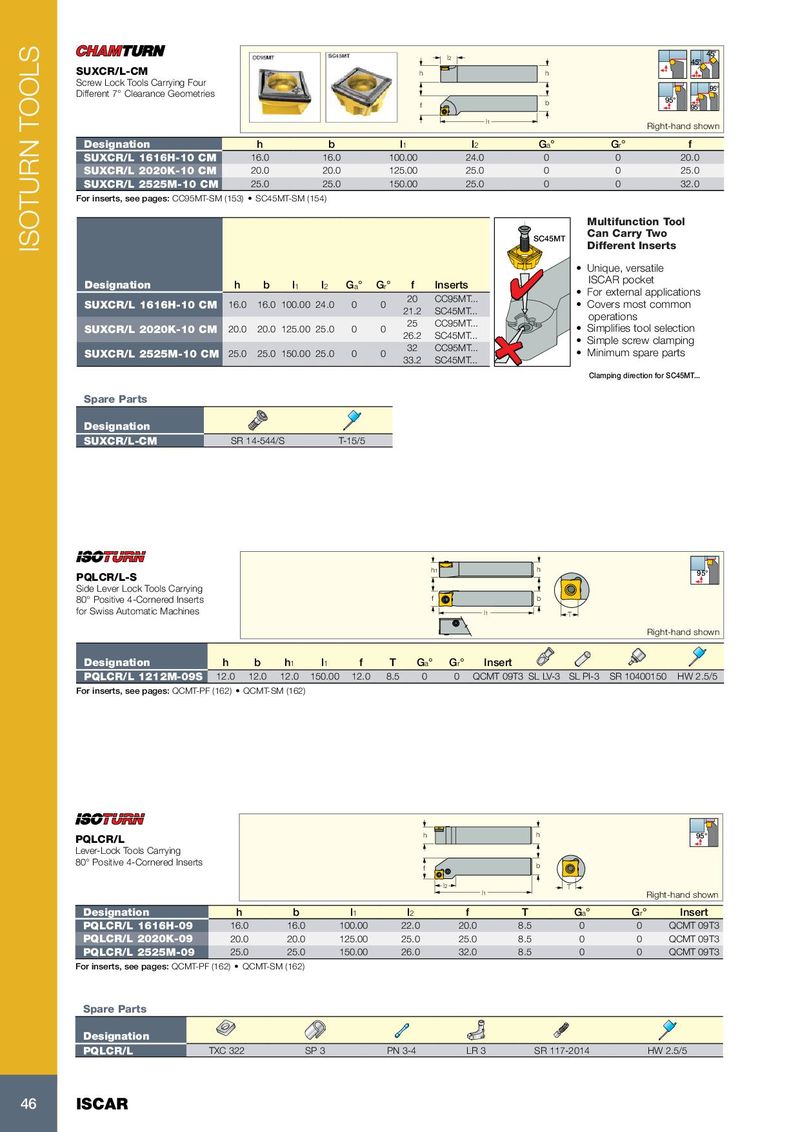

Каталог Iscar токарный инструмент 2017 - страница 50

l2 45° 45° SUXCR/L-CM h h Screw Lock Tools Carrying Four 95° Different 7° Clearance Geometries 95° f b 95° l1 Right-hand shown Designation h b l 1 l 2 G a ° G r ° f SUXCR/L 1616H-10 CM 16.0 16.0 100.00 24.0 0 0 20.0 SUXCR/L 2020K-10 CM 20.0 20.0 125.00 25.0 0 0 25.0 SUXCR/L 2525M-10 CM 25.0 25.0 150.00 25.0 0 0 32.0 For inserts, see pages: CC95MT-SM (153) • SC45MT-SM (154) Multifunction Tool Can Carry Two SC45MT ISOTURN TOOLS Different Inserts • Unique, versatile ISCAR pocket Designation h b l 1 l 2 G a ° G r ° f Inserts • For external applications 20 CC95MT... SUXCR/L 1616H-10 CM 16.0 16.0 100.00 24.0 0 0 • Covers most common 21.2 SC45MT... operations 25 CC95MT... SUXCR/L 2020K-10 CM 20.0 20.0 125.00 25.0 0 0 • Simplifies tool selection 26.2 SC45MT... • Simple screw clamping 32 CC95MT... SUXCR/L 2525M-10 CM 25.0 25.0 150.00 25.0 0 0 • Minimum spare parts 33.2 SC45MT... Clamping direction for SC45MT... Spare Parts Designation SUXCR/L-CM SR 14-544/S T-15/5 h1 h 95° PQLCR/L-S Side Lever Lock Tools Carrying 80° Positive 4-Cornered Inserts f b for Swiss Automatic Machines l1 T Right-hand shown Designation h b h 1 l 1 f T G a ° G r ° Insert PQLCR/L 1212M-09S 12.0 12.0 12.0 150.00 12.0 8.5 0 0 QCMT 09T3 SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 For inserts, see pages: QCMT-PF (162) • QCMT-SM (162) h h 95° PQLCR/L Lever-Lock Tools Carrying 80° Positive 4-Cornered Inserts f b l2 T l1 Right-hand shown Designation h b l 1 l 2 f T G a ° G r ° Insert PQLCR/L 1616H-09 16.0 16.0 100.00 22.0 20.0 8.5 0 0 QCMT 09T3 PQLCR/L 2020K-09 20.0 20.0 125.00 25.0 25.0 8.5 0 0 QCMT 09T3 PQLCR/L 2525M-09 25.0 25.0 150.00 26.0 32.0 8.5 0 0 QCMT 09T3 For inserts, see pages: QCMT-PF (162) • QCMT-SM (162) Spare Parts Designation PQLCR/L TXC 322 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5/5 46 ISCAR
