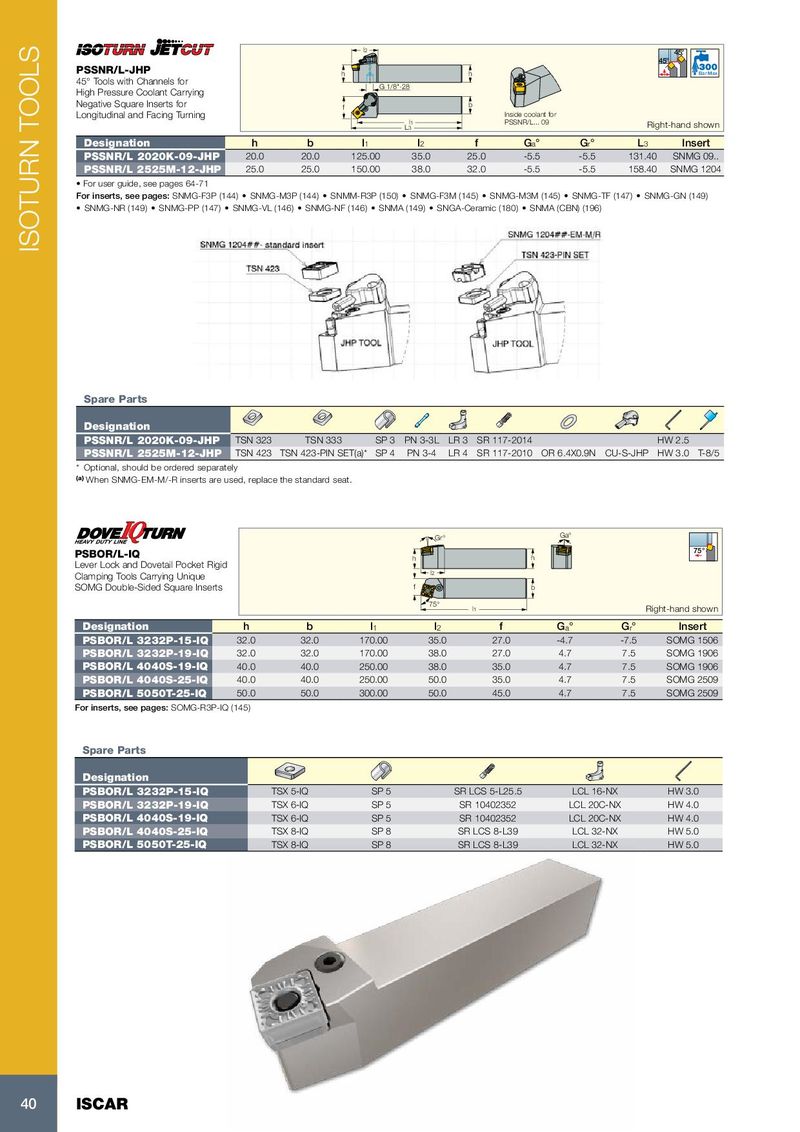

l2 45° 45° PSSNR/L-JHP h h Bar Max 45° Tools with Channels for G 1/8"-28 High Pressure Coolant Carrying Negative Square Inserts for f b Longitudinal and Facing Turning Inside coolant for l1 PSSNR/L... 09 L3 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° L 3 Insert PSSNR/L 2020K-09-JHP 20.0 20.0 125.00 35.0 25.0 -5.5 -5.5 131.40 SNMG 09.. PSSNR/L 2525M-12-JHP 25.0 25.0 150.00 38.0 32.0 -5.5 -5.5 158.40 SNMG 1204 • For user guide, see pages 64-71 For inserts, see pages: SNMG-F3P (144) • SNMG-M3P (144) • SNMM-R3P (150) • SNMG-F3M (145) • SNMG-M3M (145) • SNMG-TF (147) • SNMG-GN (149) • SNMG-NR (149) • SNMG-PP (147) • SNMG-VL (146) • SNMG-NF (146) • SNMA (149) • SNGA-Ceramic (180) • SNMA (CBN) (196) ISOTURN TOOLS Spare Parts Designation PSSNR/L 2020K-09-JHP TSN 323 TSN 333 SP 3 PN 3-3L LR 3 SR 117-2014 HW 2.5 PSSNR/L 2525M-12-JHP TSN 423 TSN 423-PIN SET(a)* SP 4 PN 3-4 LR 4 SR 117-2010 OR 6.4X0.9N CU-S-JHP HW 3.0 T-8/5 * Optional, should be ordered separately (a) When SNMG-EM-M/-R inserts are used, replace the standard seat. Gr° Ga° 75° PSBOR/L-IQ h h Lever Lock and Dovetail Pocket Rigid l2 Clamping Tools Carrying Unique SOMG Double-Sided Square Inserts f b 75° l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert PSBOR/L 3232P-15-IQ 32.0 32.0 170.00 35.0 27.0 -4.7 -7.5 SOMG 1506 PSBOR/L 3232P-19-IQ 32.0 32.0 170.00 38.0 27.0 4.7 7.5 SOMG 1906 PSBOR/L 4040S-19-IQ 40.0 40.0 250.00 38.0 35.0 4.7 7.5 SOMG 1906 PSBOR/L 4040S-25-IQ 40.0 40.0 250.00 50.0 35.0 4.7 7.5 SOMG 2509 PSBOR/L 5050T-25-IQ 50.0 50.0 300.00 50.0 45.0 4.7 7.5 SOMG 2509 For inserts, see pages: SOMG-R3P-IQ (145) Spare Parts Designation PSBOR/L 3232P-15-IQ TSX 5-IQ SP 5 SR LCS 5-L25.5 LCL 16-NX HW 3.0 PSBOR/L 3232P-19-IQ TSX 6-IQ SP 5 SR 10402352 LCL 20C-NX HW 4.0 PSBOR/L 4040S-19-IQ TSX 6-IQ SP 5 SR 10402352 LCL 20C-NX HW 4.0 PSBOR/L 4040S-25-IQ TSX 8-IQ SP 8 SR LCS 8-L39 LCL 32-NX HW 5.0 PSBOR/L 5050T-25-IQ TSX 8-IQ SP 8 SR LCS 8-L39 LCL 32-NX HW 5.0 40 ISCAR
