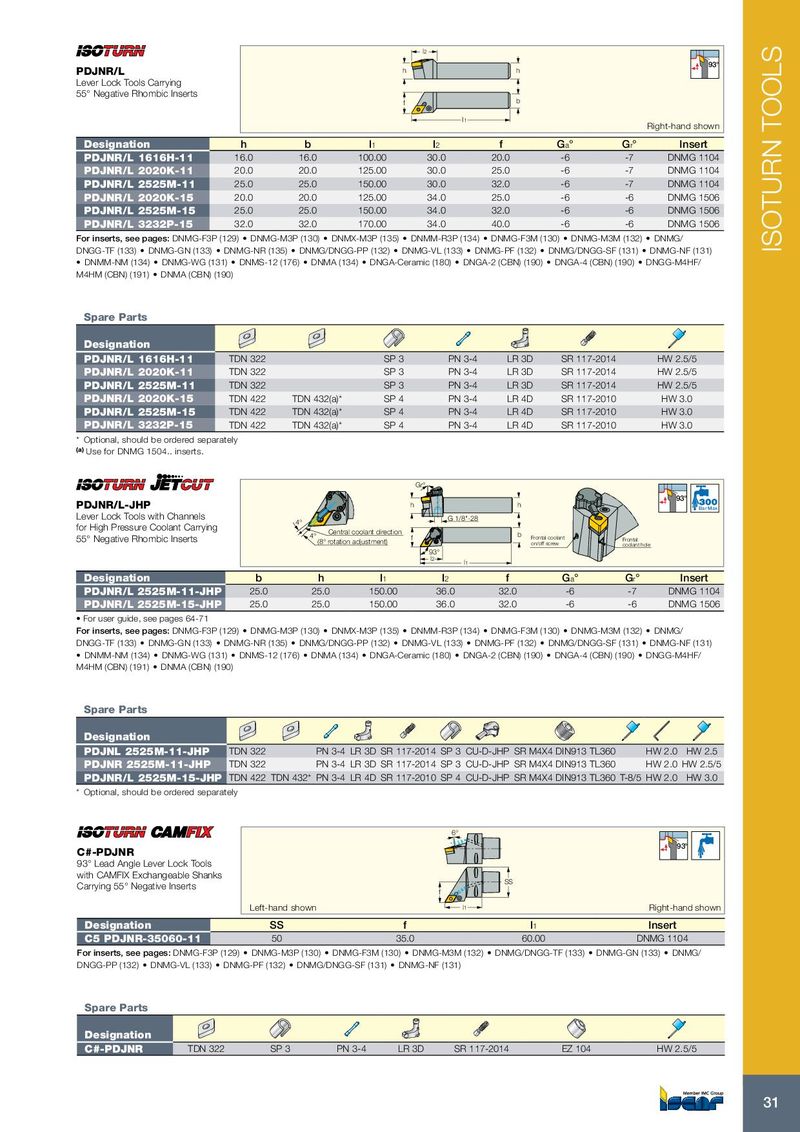

Каталог Iscar токарный инструмент 2017 - страница 35

l2 93° PDJNR/L h h Lever Lock Tools Carrying 55° Negative Rhombic Inserts f b l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert PDJNR/L 1616H-11 16.0 16.0 100.00 30.0 20.0 -6 -7 DNMG 1104 PDJNR/L 2020K-11 20.0 20.0 125.00 30.0 25.0 -6 -7 DNMG 1104 PDJNR/L 2525M-11 25.0 25.0 150.00 30.0 32.0 -6 -7 DNMG 1104 PDJNR/L 2020K-15 20.0 20.0 125.00 34.0 25.0 -6 -6 DNMG 1506 PDJNR/L 2525M-15 25.0 25.0 150.00 34.0 32.0 -6 -6 DNMG 1506 PDJNR/L 3232P-15 32.0 32.0 170.00 34.0 40.0 -6 -6 DNMG 1506 For inserts, see pages: DNMG-F3P (129) • DNMG-M3P (130) • DNMX-M3P (135) • DNMM-R3P (134) • DNMG-F3M (130) • DNMG-M3M (132) • DNMG/ DNGG-TF (133) • DNMG-GN (133) • DNMG-NR (135) • DNMG/DNGG-PP (132) • DNMG-VL (133) • DNMG-PF (132) • DNMG/DNGG-SF (131) • DNMG-NF (131) ISOTURN TOOLS • DNMM-NM (134) • DNMG-WG (131) • DNMS-12 (176) • DNMA (134) • DNGA-Ceramic (180) • DNGA-2 (CBN) (190) • DNGA-4 (CBN) (190) • DNGG-M4HF/ M4HM (CBN) (191) • DNMA (CBN) (190) Spare Parts Designation PDJNR/L 1616H-11 TDN 322 SP 3 PN 3-4 LR 3D SR 117-2014 HW 2.5/5 PDJNR/L 2020K-11 TDN 322 SP 3 PN 3-4 LR 3D SR 117-2014 HW 2.5/5 PDJNR/L 2525M-11 TDN 322 SP 3 PN 3-4 LR 3D SR 117-2014 HW 2.5/5 PDJNR/L 2020K-15 TDN 422 TDN 432(a)* SP 4 PN 3-4 LR 4D SR 117-2010 HW 3.0 PDJNR/L 2525M-15 TDN 422 TDN 432(a)* SP 4 PN 3-4 LR 4D SR 117-2010 HW 3.0 PDJNR/L 3232P-15 TDN 422 TDN 432(a)* SP 4 PN 3-4 LR 4D SR 117-2010 HW 3.0 * Optional, should be ordered separately (a) Use for DNMG 1504.. inserts. Gr° 93° PDJNR/L-JHP h h Bar Max Lever Lock Tools with Channels 4° G 1/8"-28 for High Pressure Coolant Carrying 55° Negative Rhombic Inserts 4° Central coolant direction (8° rotation adjustment) f b Frontal coolant on/off screw Frontal coolant hole 93° l2 l1 Designation b h l 1 l 2 f G a ° G r ° Insert PDJNR/L 2525M-11-JHP 25.0 25.0 150.00 36.0 32.0 -6 -7 DNMG 1104 PDJNR/L 2525M-15-JHP 25.0 25.0 150.00 36.0 32.0 -6 -6 DNMG 1506 • For user guide, see pages 64-71 For inserts, see pages: DNMG-F3P (129) • DNMG-M3P (130) • DNMX-M3P (135) • DNMM-R3P (134) • DNMG-F3M (130) • DNMG-M3M (132) • DNMG/ DNGG-TF (133) • DNMG-GN (133) • DNMG-NR (135) • DNMG/DNGG-PP (132) • DNMG-VL (133) • DNMG-PF (132) • DNMG/DNGG-SF (131) • DNMG-NF (131) • DNMM-NM (134) • DNMG-WG (131) • DNMS-12 (176) • DNMA (134) • DNGA-Ceramic (180) • DNGA-2 (CBN) (190) • DNGA-4 (CBN) (190) • DNGG-M4HF/ M4HM (CBN) (191) • DNMA (CBN) (190) Spare Parts Designation PDJNL 2525M-11-JHP TDN 322 PN 3-4 LR 3D SR 117-2014 SP 3 CU-D-JHP SR M4X4 DIN913 TL360 HW 2.0 HW 2.5 PDJNR 2525M-11-JHP TDN 322 PN 3-4 LR 3D SR 117-2014 SP 3 CU-D-JHP SR M4X4 DIN913 TL360 HW 2.0 HW 2.5/5 PDJNR/L 2525M-15-JHP TDN 422 TDN 432* PN 3-4 LR 4D SR 117-2010 SP 4 CU-D-JHP SR M4X4 DIN913 TL360 T-8/5 HW 2.0 HW 3.0 * Optional, should be ordered separately 6° 93° C#-PDJNR 93° Lead Angle Lever Lock Tools with CAMFIX Exchangeable Shanks SS Carrying 55° Negative Inserts f Left-hand shown l 1 Right-hand shown Designation SS f l 1 Insert C5 PDJNR-35060-11 50 35.0 60.00 DNMG 1104 For inserts, see pages: DNMG-F3P (129) • DNMG-M3P (130) • DNMG-F3M (130) • DNMG-M3M (132) • DNMG/DNGG-TF (133) • DNMG-GN (133) • DNMG/ DNGG-PP (132) • DNMG-VL (133) • DNMG-PF (132) • DNMG/DNGG-SF (131) • DNMG-NF (131) Spare Parts Designation C#-PDJNR TDN 322 SP 3 PN 3-4 LR 3D SR 117-2014 EZ 104 HW 2.5/5 31
