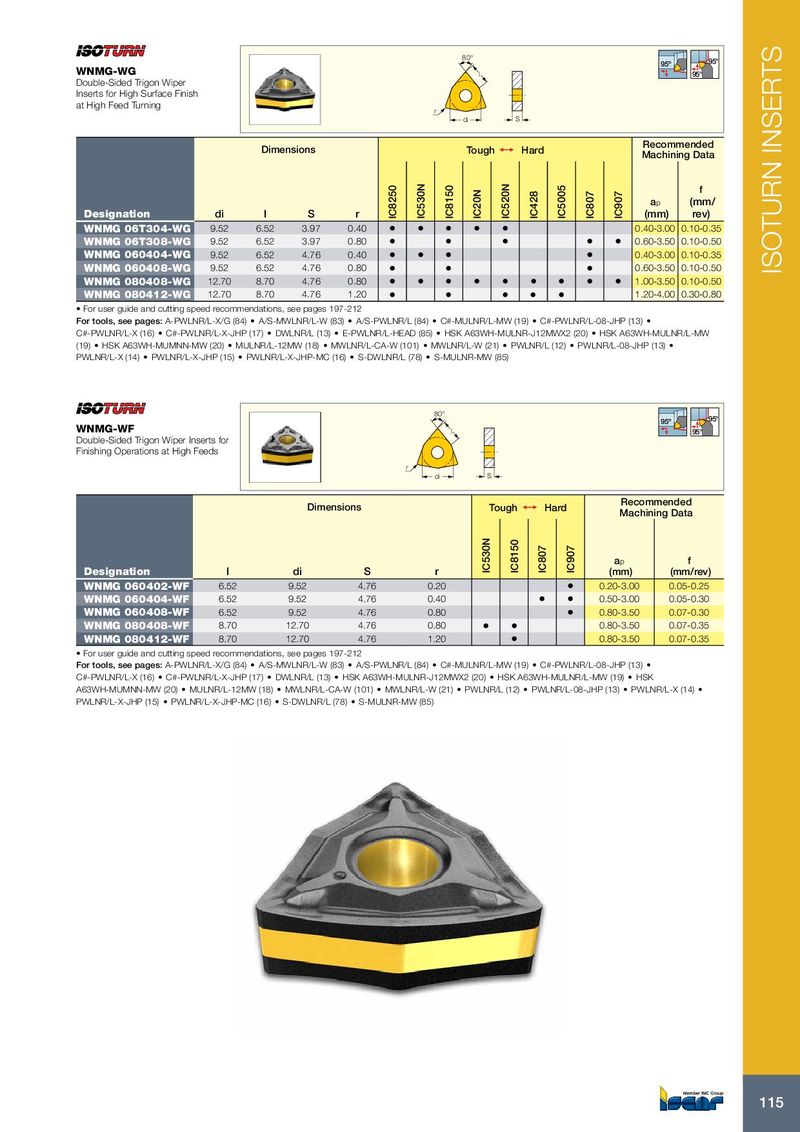

80° 95º 95° WNMG-WG l 95° Double-Sided Trigon Wiper Inserts for High Surface Finish at High Feed Turning r di S Recommended Dimensions Tough 1  Hard Machining Data f a p (mm/ Designation di l S r IC8250 IC530N IC8150 IC20N IC520N IC428 IC5005 IC807 IC907 (mm) rev) WNMG 06T304-WG 9.52 6.52 3.97 0.40 • • • • • 0.40-3.00 0.10-0.35 WNMG 06T308-WG 9.52 6.52 3.97 0.80 • • • • • 0.60-3.50 0.10-0.50 WNMG 060404-WG 9.52 6.52 4.76 0.40 • • • • 0.40-3.00 0.10-0.35 WNMG 060408-WG 9.52 6.52 4.76 0.80 • • • 0.60-3.50 0.10-0.50 ISOTURN INSERTS WNMG 080408-WG 12.70 8.70 4.76 0.80 • • • • • • • • • 1.00-3.50 0.10-0.50 WNMG 080412-WG 12.70 8.70 4.76 1.20 • • • • • 1.20-4.00 0.30-0.80 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: A-PWLNR/L-X/G (84) • A/S-MWLNR/L-W (83) • A/S-PWLNR/L (84) • C#-MULNR/L-MW (19) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • E-PWLNR/L-HEAD (85) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • MWLNR/L-CA-W (101) • MWLNR/L-W (21) • PWLNR/L (12) • PWLNR/L-08-JHP (13) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (78) • S-MULNR-MW (85) 80° 95º 95° WNMG-WF l 95° Double-Sided Trigon Wiper Inserts for Finishing Operations at High Feeds r di S Recommended Dimensions Tough 1  Hard Machining Data a p f Designation l di S r IC530N IC8150 IC807 IC907 (mm) (mm/rev) WNMG 060402-WF 6.52 9.52 4.76 0.20 • 0.20-3.00 0.05-0.25 WNMG 060404-WF 6.52 9.52 4.76 0.40 • • 0.50-3.00 0.05-0.30 WNMG 060408-WF 6.52 9.52 4.76 0.80 • 0.80-3.50 0.07-0.30 WNMG 080408-WF 8.70 12.70 4.76 0.80 • • 0.80-3.50 0.07-0.35 WNMG 080412-WF 8.70 12.70 4.76 1.20 • 0.80-3.50 0.07-0.35 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: A-PWLNR/L-X/G (84) • A/S-MWLNR/L-W (83) • A/S-PWLNR/L (84) • C#-MULNR/L-MW (19) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • MWLNR/L-CA-W (101) • MWLNR/L-W (21) • PWLNR/L (12) • PWLNR/L-08-JHP (13) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (78) • S-MULNR-MW (85) 115
