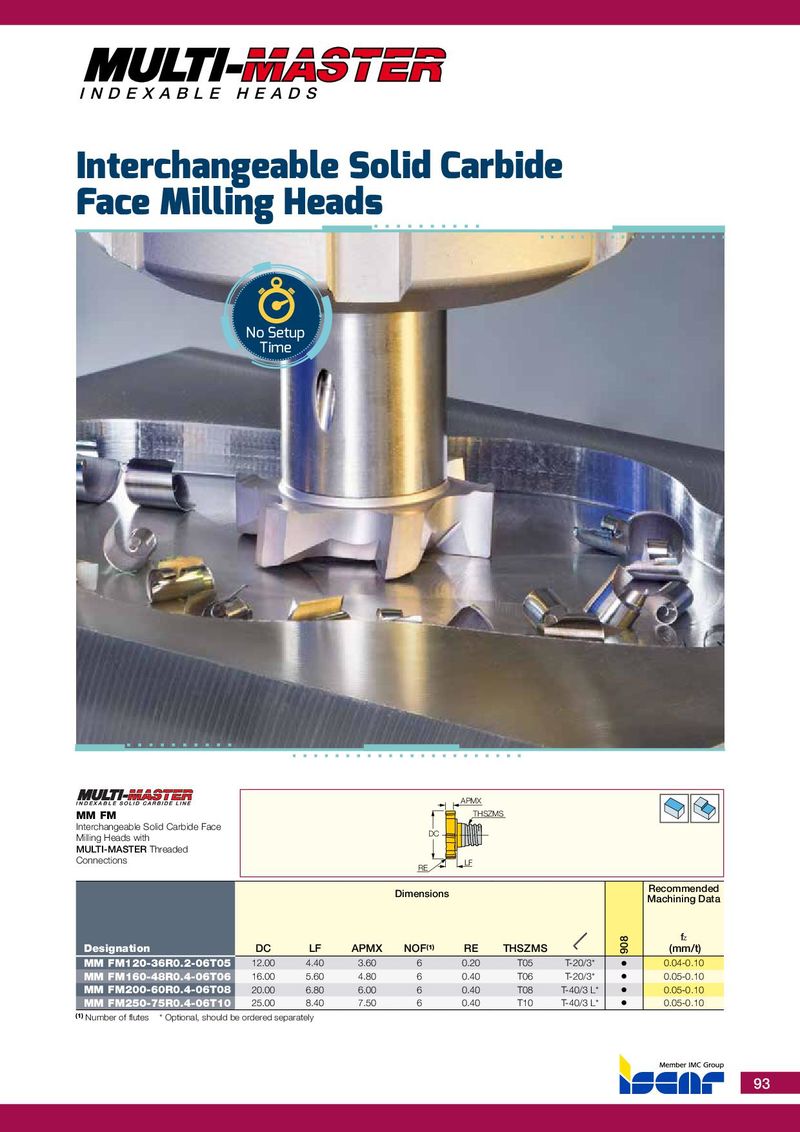

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E I N D E X A B L E H E A D S Interchangeable Solid Carbide Face Milling Heads No Setup Time APMX MM FM THSZMS Interchangeable Solid Carbide Face DC Milling Heads with MULTI-MASTER Threaded Connections LF RE Recommended Dimensions Machining Data f z Designation DC LF APMX NOF (1) RE THSZMS 908 (mm/t) MM FM120-36R0.2-06T05 12.00 4.40 3.60 6 0.20 T05 T-20/3* • 0.04-0.10 MM FM160-48R0.4-06T06 16.00 5.60 4.80 6 0.40 T06 T-20/3* • 0.05-0.10 MM FM200-60R0.4-06T08 20.00 6.80 6.00 6 0.40 T08 T-40/3 L* • 0.05-0.10 MM FM250-75R0.4-06T10 25.00 8.40 7.50 6 0.40 T10 T-40/3 L* • 0.05-0.10 (1) Number of flutes * Optional, should be ordered separately 93
