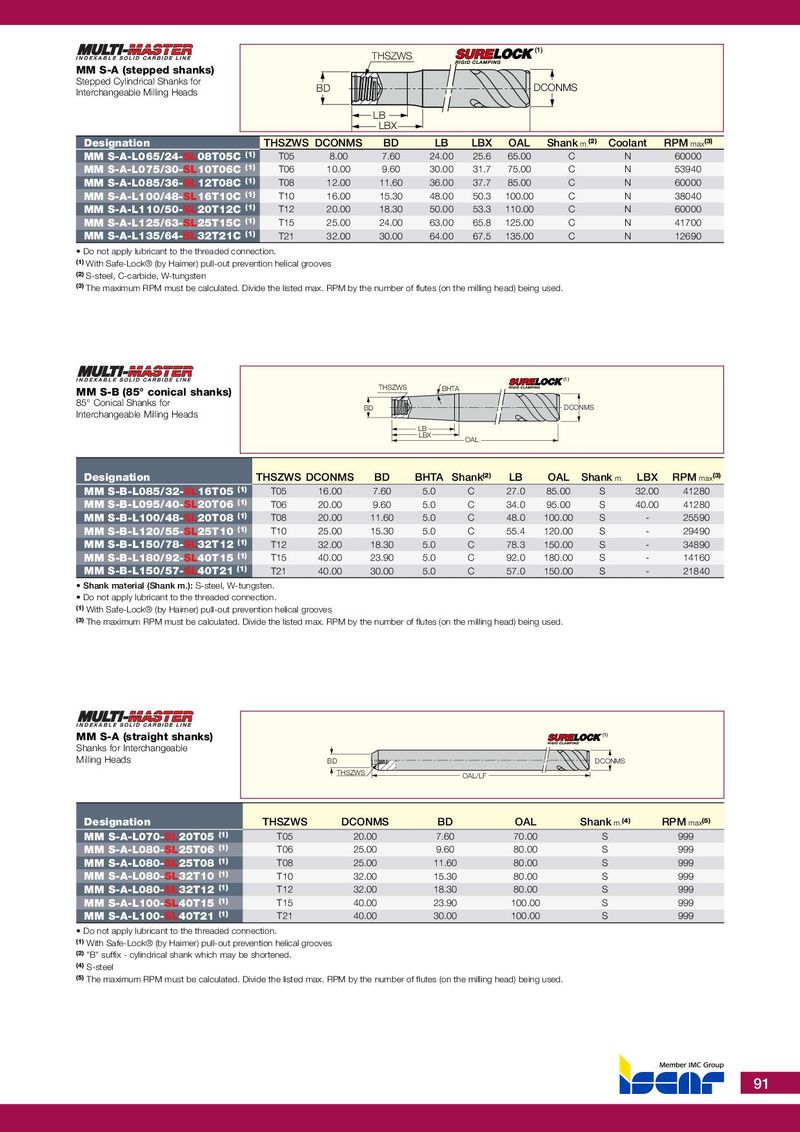

Каталог Iscar новые продукты 2018 - страница 91

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E (1) THSZWS MM S-A (stepped shanks) Stepped Cylindrical Shanks for Interchangeable Milling Heads BD DCONMS LB LBX OAL Designation THSZWS DCONMS BD LB LBX OAL Shank m. (2) Coolant RPM max (3) MM S-A-L065/24-SL08T05C (1) T05 8.00 7.60 24.00 25.6 65.00 C N 60000 MM S-A-L075/30-SL10T06C (1) T06 10.00 9.60 30.00 31.7 75.00 C N 53940 MM S-A-L085/36-SL12T08C (1) T08 12.00 11.60 36.00 37.7 85.00 C N 60000 MM S-A-L100/48-SL16T10C (1) T10 16.00 15.30 48.00 50.3 100.00 C N 38040 MM S-A-L110/50-SL20T12C (1) T12 20.00 18.30 50.00 53.3 110.00 C N 60000 MM S-A-L125/63-SL25T15C (1) T15 25.00 24.00 63.00 65.8 125.00 C N 41700 MM S-A-L135/64-SL32T21C (1) T21 32.00 30.00 64.00 67.5 135.00 C N 12690 • Do not apply lubricant to the threaded connection. (1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves (2) S-steel, C-carbide, W-tungsten (3) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used. (1) THSZWS BHTA MM S-B (85° conical shanks) 85° Conical Shanks for BD DCONMS Interchangeable Milling Heads LB LBX OAL Designation THSZWS DCONMS BD BHTA Shank (2) LB OAL Shank m. LBX RPM max (3) MM S-B-L085/32-SL16T05 (1) T05 16.00 7.60 5.0 C 27.0 85.00 S 32.00 41280 MM S-B-L095/40-SL20T06 (1) T06 20.00 9.60 5.0 C 34.0 95.00 S 40.00 41280 MM S-B-L100/48-SL20T08 (1) T08 20.00 11.60 5.0 C 48.0 100.00 S - 25590 MM S-B-L120/55-SL25T10 (1) T10 25.00 15.30 5.0 C 55.4 120.00 S - 29490 MM S-B-L150/78-SL32T12 (1) T12 32.00 18.30 5.0 C 78.3 150.00 S - 34890 MM S-B-L180/92-SL40T15 (1) T15 40.00 23.90 5.0 C 92.0 180.00 S - 14160 MM S-B-L150/57-SL40T21 (1) T21 40.00 30.00 5.0 C 57.0 150.00 S - 21840 • Shank material (Shank m.): S-steel, W-tungsten. • Do not apply lubricant to the threaded connection. (1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves (3) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used. (1) MM S-A (straight shanks) Shanks for Interchangeable Milling Heads BD DCONMS THSZWS OAL/LF Designation THSZWS DCONMS BD OAL Shank m. (4) RPM max (5) MM S-A-L070-SL20T05 (1) T05 20.00 7.60 70.00 S 999 MM S-A-L080-SL25T06 (1) T06 25.00 9.60 80.00 S 999 MM S-A-L080-SL25T08 (1) T08 25.00 11.60 80.00 S 999 MM S-A-L080-SL32T10 (1) T10 32.00 15.30 80.00 S 999 MM S-A-L080-SL32T12 (1) T12 32.00 18.30 80.00 S 999 MM S-A-L100-SL40T15 (1) T15 40.00 23.90 100.00 S 999 MM S-A-L100-SL40T21 (1) T21 40.00 30.00 100.00 S 999 • Do not apply lubricant to the threaded connection. (1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves (2) "B" suffix - cylindrical shank which may be shortened. (4) S-steel (5) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used. 91
