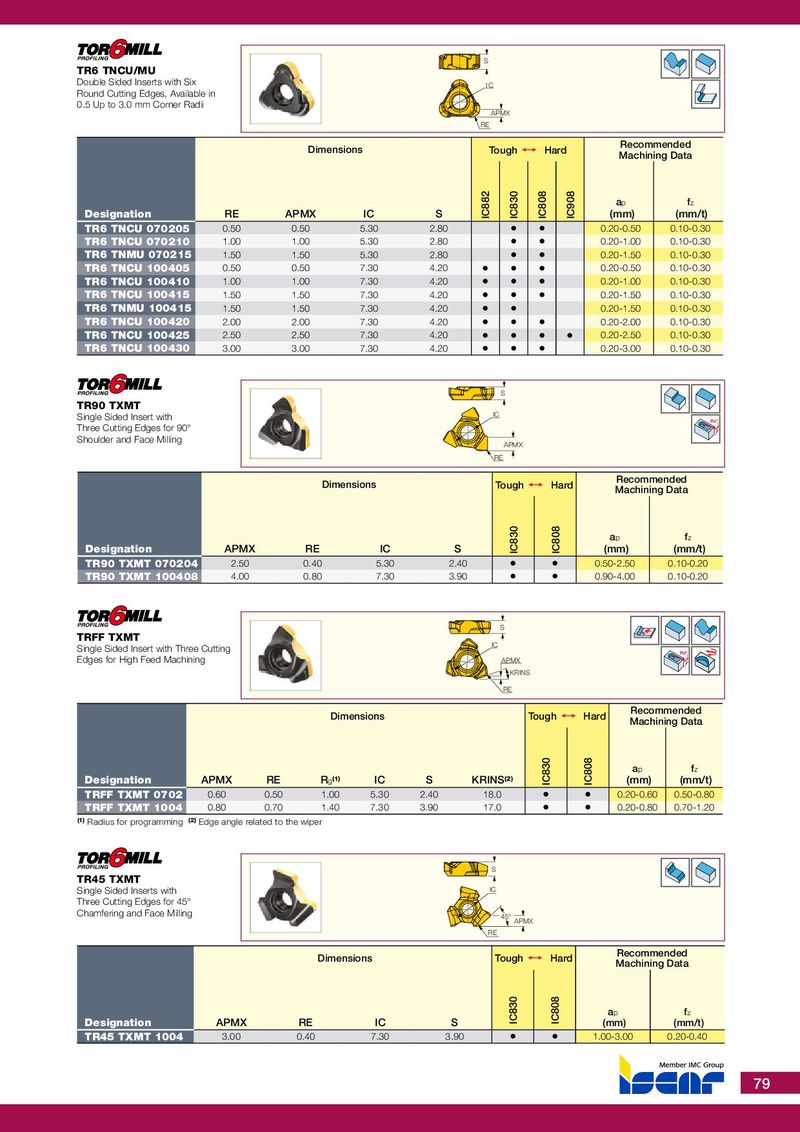

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E S TR6 TNCU/MU Double Sided Inserts with Six IC Round Cutting Edges, Available in 0.5 Up to 3.0 mm Corner Radii APMX RE Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation RE APMX IC S IC882 IC830 IC808 IC908 (mm) (mm/t) TR6 TNCU 070205 0.50 0.50 5.30 2.80 • • 0.20-0.50 0.10-0.30 TR6 TNCU 070210 1.00 1.00 5.30 2.80 • • 0.20-1.00 0.10-0.30 TR6 TNMU 070215 1.50 1.50 5.30 2.80 • • 0.20-1.50 0.10-0.30 TR6 TNCU 100405 0.50 0.50 7.30 4.20 • • • 0.20-0.50 0.10-0.30 TR6 TNCU 100410 1.00 1.00 7.30 4.20 • • • 0.20-1.00 0.10-0.30 TR6 TNCU 100415 1.50 1.50 7.30 4.20 • • • 0.20-1.50 0.10-0.30 TR6 TNMU 100415 1.50 1.50 7.30 4.20 • • 0.20-1.50 0.10-0.30 TR6 TNCU 100420 2.00 2.00 7.30 4.20 • • • 0.20-2.00 0.10-0.30 TR6 TNCU 100425 2.50 2.50 7.30 4.20 • • • • 0.20-2.50 0.10-0.30 TR6 TNCU 100430 3.00 3.00 7.30 4.20 • • • 0.20-3.00 0.10-0.30 S TR90 TXMT Single Sided Insert with IC Rd° Three Cutting Edges for 90° Shoulder and Face Milling APMX RE Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation APMX RE IC S IC830 IC808 (mm) (mm/t) TR90 TXMT 070204 2.50 0.40 5.30 2.40 • • 0.50-2.50 0.10-0.20 TR90 TXMT 100408 4.00 0.80 7.30 3.90 • • 0.90-4.00 0.10-0.20 S TRFF TXMT IC Single Sided Insert with Three Cutting Rd° Edges for High Feed Machining APMX KRINS RE Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation APMX RE R g (1) IC S KRINS (2) IC830 IC808 (mm) (mm/t) TRFF TXMT 0702 0.60 0.50 1.00 5.30 2.40 18.0 • • 0.20-0.60 0.50-0.80 TRFF TXMT 1004 0.80 0.70 1.40 7.30 3.90 17.0 • • 0.20-0.80 0.70-1.20 (1) Radius for programming (2) Edge angle related to the wiper S TR45 TXMT Single Sided Inserts with IC Three Cutting Edges for 45° Chamfering and Face Milling 45° APMX RE Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation APMX RE IC S IC830 IC808 (mm) (mm/t) TR45 TXMT 1004 3.00 0.40 7.30 3.90 • • 1.00-3.00 0.20-0.40 79
