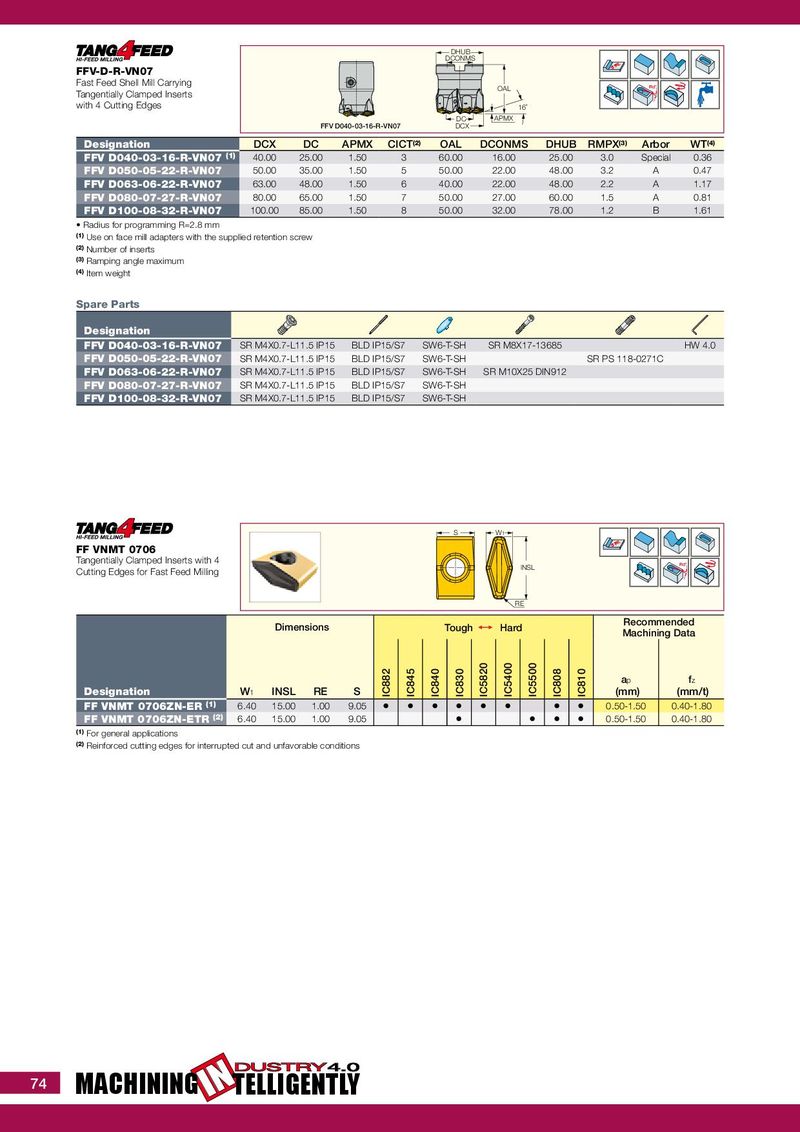

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E DHUB DCONMS FFV-D-R-VN07 Fast Feed Shell Mill Carrying OAL Rd° Tangentially Clamped Inserts with 4 Cutting Edges 16˚ DC APMX FFV D040-03-16-R-VN07 DCX Designation DCX DC APMX CICT (2) OAL DCONMS DHUB RMPX (3) Arbor WT (4) FFV D040-03-16-R-VN07 (1) 40.00 25.00 1.50 3 60.00 16.00 25.00 3.0 Special 0.36 FFV D050-05-22-R-VN07 50.00 35.00 1.50 5 50.00 22.00 48.00 3.2 A 0.47 FFV D063-06-22-R-VN07 63.00 48.00 1.50 6 40.00 22.00 48.00 2.2 A 1.17 FFV D080-07-27-R-VN07 80.00 65.00 1.50 7 50.00 27.00 60.00 1.5 A 0.81 FFV D100-08-32-R-VN07 100.00 85.00 1.50 8 50.00 32.00 78.00 1.2 B 1.61 • Radius for programming R=2.8 mm (1) Use on face mill adapters with the supplied retention screw (2) Number of inserts (3) Ramping angle maximum (4) Item weight Spare Parts Designation FFV D040-03-16-R-VN07 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH SR M8X17-13685 HW 4.0 FFV D050-05-22-R-VN07 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH SR PS 118-0271C FFV D063-06-22-R-VN07 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 FFV D080-07-27-R-VN07 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH FFV D100-08-32-R-VN07 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH S W1 FF VNMT 0706 Tangentially Clamped Inserts with 4 lNSL Rd° Cutting Edges for Fast Feed Milling RE Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W 1 INSL RE S IC882 IC845 IC840 IC830 IC5820 IC5400 IC5500 IC808 IC810 (mm) (mm/t) FF VNMT 0706ZN-ER (1) 6.40 15.00 1.00 9.05 • • • • • • • • 0.50-1.50 0.40-1.80 FF VNMT 0706ZN-ETR (2) 6.40 15.00 1.00 9.05 • • • • 0.50-1.50 0.40-1.80 (1) For general applications (2) Reinforced cutting edges for interrupted cut and unfavorable conditions DUSTRY 4.0 74 MACHINING IN TELLIGENTLY
