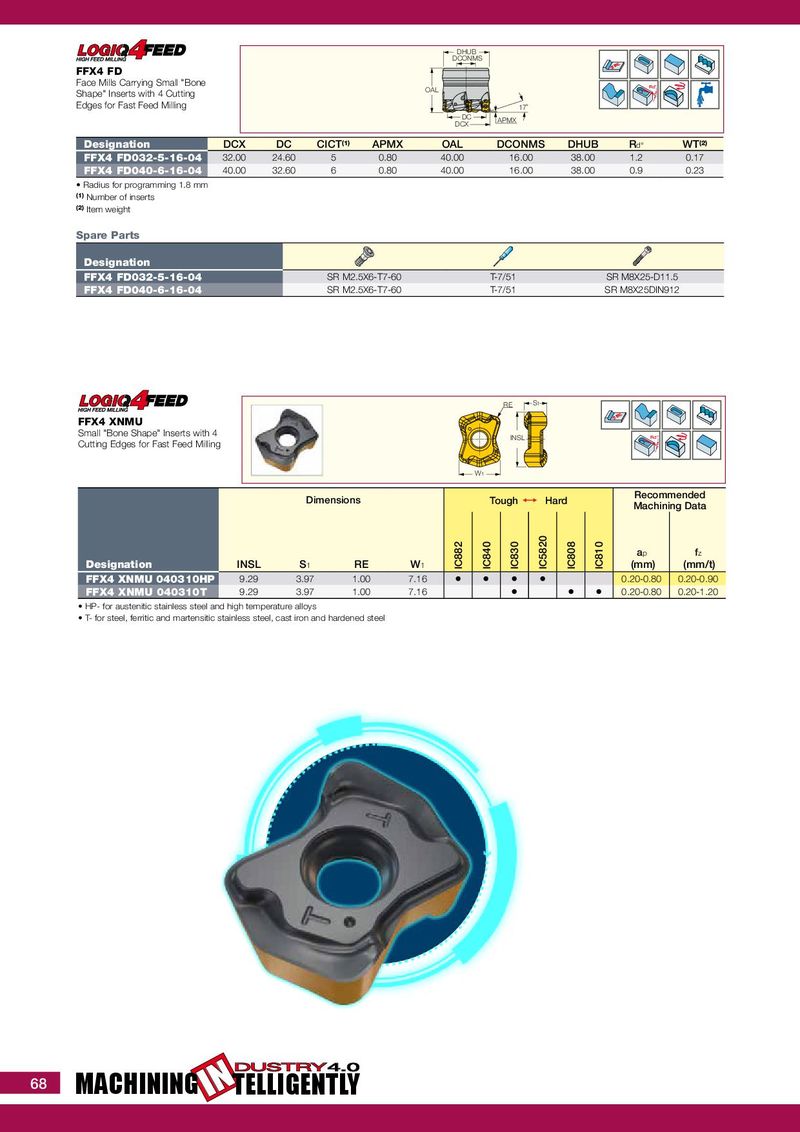

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E DHUB DCONMS FFX4 FD Face Mills Carrying Small "Bone Rd° OAL Shape" Inserts with 4 Cutting Edges for Fast Feed Milling 17˚ DC APMX DCX Designation DCX DC CICT (1) APMX OAL DCONMS DHUB R d° WT (2) FFX4 FD032-5-16-04 32.00 24.60 5 0.80 40.00 16.00 38.00 1.2 0.17 FFX4 FD040-6-16-04 40.00 32.60 6 0.80 40.00 16.00 38.00 0.9 0.23 • Radius for programming 1.8 mm (1) Number of inserts (2) Item weight Spare Parts Designation FFX4 FD032-5-16-04 SR M2.5X6-T7-60 T-7/51 SR M8X25-D11.5 FFX4 FD040-6-16-04 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912 RE S1 FFX4 XNMU Small "Bone Shape" Inserts with 4 INSL Rd° Cutting Edges for Fast Feed Milling W1 Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation INSL S 1 RE W 1 IC882 IC840 IC830 IC5820 IC808 IC810 (mm) (mm/t) FFX4 XNMU 040310HP 9.29 3.97 1.00 7.16 • • • • 0.20-0.80 0.20-0.90 FFX4 XNMU 040310T 9.29 3.97 1.00 7.16 • • • 0.20-0.80 0.20-1.20 • HP- for austenitic stainless steel and high temperature alloys • T- for steel, ferritic and martensitic stainless steel, cast iron and hardened steel DUSTRY 4.0 68 MACHINING IN TELLIGENTLY
