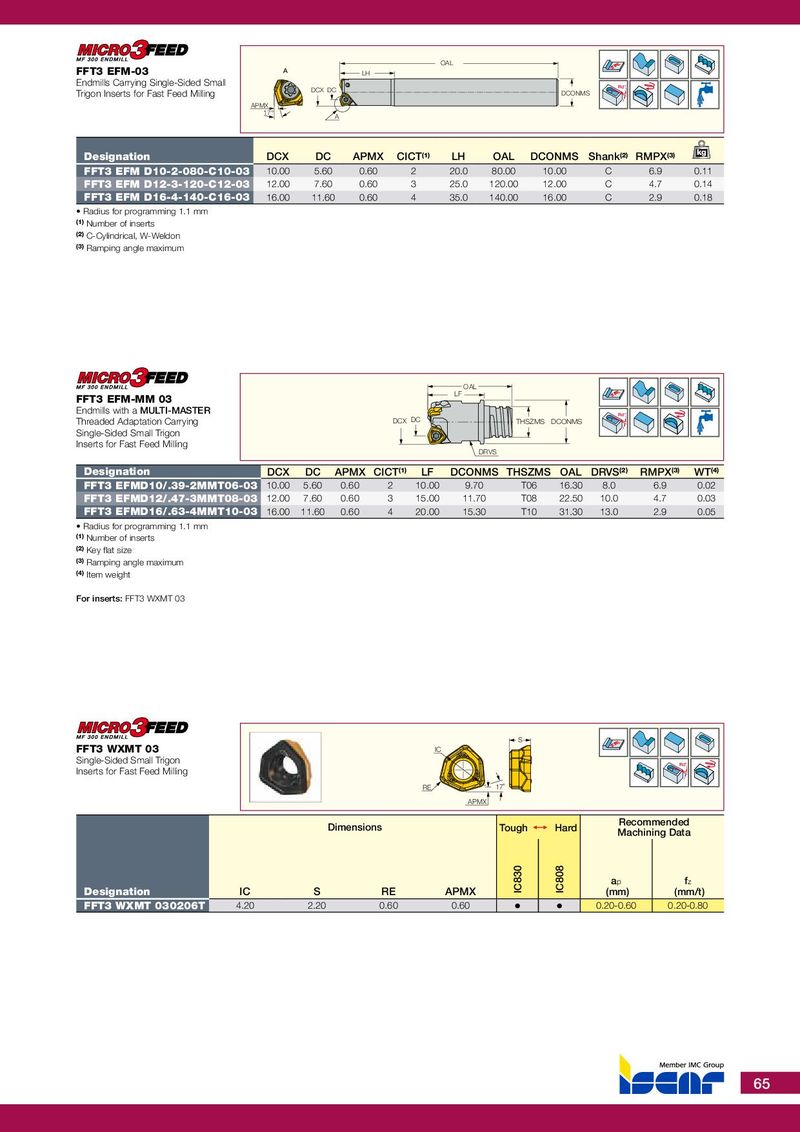

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E OAL FFT3 EFM-03 A LH Endmills Carrying Single-Sided Small Rd° DCX DC Trigon Inserts for Fast Feed Milling DCONMS APMX 17° A kg Designation DCX DC APMX CICT (1) LH OAL DCONMS Shank (2) RMPX (3) FFT3 EFM D10-2-080-C10-03 10.00 5.60 0.60 2 20.0 80.00 10.00 C 6.9 0.11 FFT3 EFM D12-3-120-C12-03 12.00 7.60 0.60 3 25.0 120.00 12.00 C 4.7 0.14 FFT3 EFM D16-4-140-C16-03 16.00 11.60 0.60 4 35.0 140.00 16.00 C 2.9 0.18 • Radius for programming 1.1 mm (1) Number of inserts (2) C-Cylindrical, W-Weldon (3) Ramping angle maximum OAL LF FFT3 EFM-MM 03 Endmills with a MULTI-MASTER Rd° Threaded Adaptation Carrying DCX DC THSZMS DCONMS Single-Sided Small Trigon Inserts for Fast Feed Milling DRVS Designation DCX DC APMX CICT (1) LF DCONMS THSZMS OAL DRVS (2) RMPX (3) WT (4) FFT3 EFMD10/.39-2MMT06-03 10.00 5.60 0.60 2 10.00 9.70 T06 16.30 8.0 6.9 0.02 FFT3 EFMD12/.47-3MMT08-03 12.00 7.60 0.60 3 15.00 11.70 T08 22.50 10.0 4.7 0.03 FFT3 EFMD16/.63-4MMT10-03 16.00 11.60 0.60 4 20.00 15.30 T10 31.30 13.0 2.9 0.05 • Radius for programming 1.1 mm (1) Number of inserts (2) Key flat size (3) Ramping angle maximum (4) Item weight For inserts: FFT3 WXMT 03 S FFT3 WXMT 03 IC Single-Sided Small Trigon Rd° Inserts for Fast Feed Milling RE 17˚ APMX Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation IC S RE APMX IC830 IC808 (mm) (mm/t) FFT3 WXMT 030206T 4.20 2.20 0.60 0.60 • • 0.20-0.60 0.20-0.80 65
