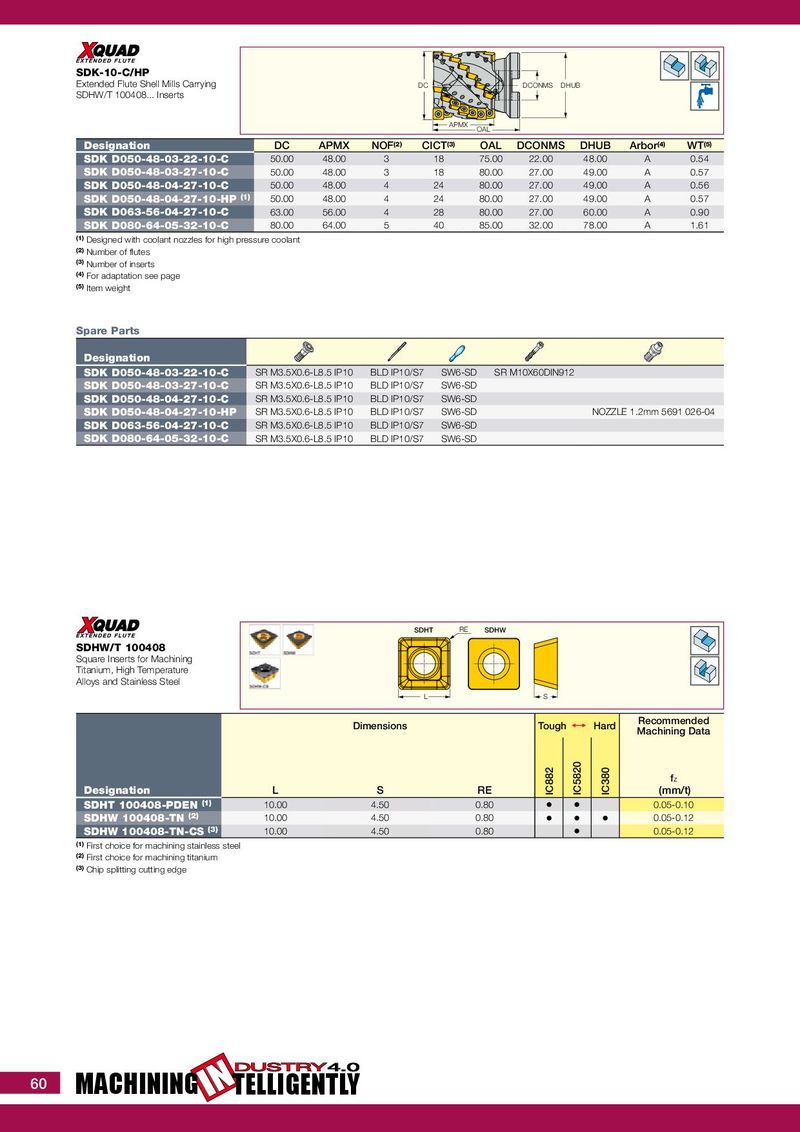

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E SDK-10-C/HP Extended Flute Shell Mills Carrying DC DCONMS DHUB SDHW/T 100408... Inserts APMX OAL Designation DC APMX NOF (2) CICT (3) OAL DCONMS DHUB Arbor (4) WT (5) SDK D050-48-03-22-10-C 50.00 48.00 3 18 75.00 22.00 48.00 A 0.54 SDK D050-48-03-27-10-C 50.00 48.00 3 18 80.00 27.00 49.00 A 0.57 SDK D050-48-04-27-10-C 50.00 48.00 4 24 80.00 27.00 49.00 A 0.56 SDK D050-48-04-27-10-HP (1) 50.00 48.00 4 24 80.00 27.00 49.00 A 0.57 SDK D063-56-04-27-10-C 63.00 56.00 4 28 80.00 27.00 60.00 A 0.90 SDK D080-64-05-32-10-C 80.00 64.00 5 40 85.00 32.00 78.00 A 1.61 (1) Designed with coolant nozzles for high pressure coolant (2) Number of flutes (3) Number of inserts (4) For adaptation see page (5) Item weight Spare Parts Designation SDK D050-48-03-22-10-C SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M10X60DIN912 SDK D050-48-03-27-10-C SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SDK D050-48-04-27-10-C SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SDK D050-48-04-27-10-HP SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD NOZZLE 1.2mm 5691 026-04 SDK D063-56-04-27-10-C SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SDK D080-64-05-32-10-C SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SDHT RE SDHW SDHW/T 100408 Square Inserts for Machining Titanium, High Temperature Alloys and Stainless Steel L S Recommended Dimensions Tough 1  Hard Machining Data f z Designation L S RE IC882 IC5820 IC380 (mm/t) SDHT 100408-PDEN (1) 10.00 4.50 0.80 • • 0.05-0.10 SDHW 100408-TN (2) 10.00 4.50 0.80 • • • 0.05-0.12 SDHW 100408-TN-CS (3) 10.00 4.50 0.80 • 0.05-0.12 (1) First choice for machining stainless steel (2) First choice for machining titanium (3) Chip splitting cutting edge DUSTRY 4.0 60 MACHINING IN TELLIGENTLY
