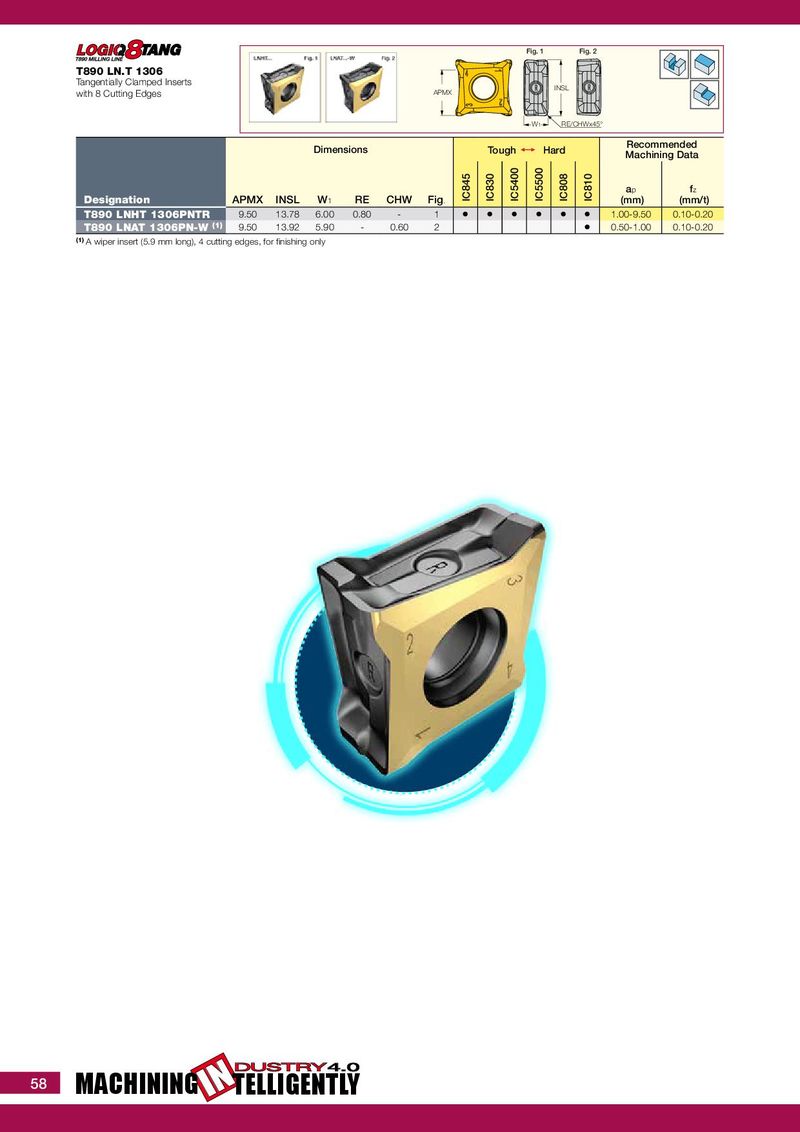

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E Fig. 1 Fig. 2 T890 LN.T 1306 Tangentially Clamped Inserts INSL with 8 Cutting Edges APMX W1 RE/CHWx45° Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation APMX INSL W 1 RE CHW Fig . IC845 IC830 IC5400 IC5500 IC808 IC810 (mm) (mm/t) T890 LNHT 1306PNTR 9.50 13.78 6.00 0.80 - 1 • • • • • • 1.00-9.50 0.10-0.20 T890 LNAT 1306PN-W (1) 9.50 13.92 5.90 - 0.60 2 • 0.50-1.00 0.10-0.20 (1) A wiper insert (5.9 mm long), 4 cutting edges, for finishing only DUSTRY 4.0 58 MACHINING IN TELLIGENTLY
