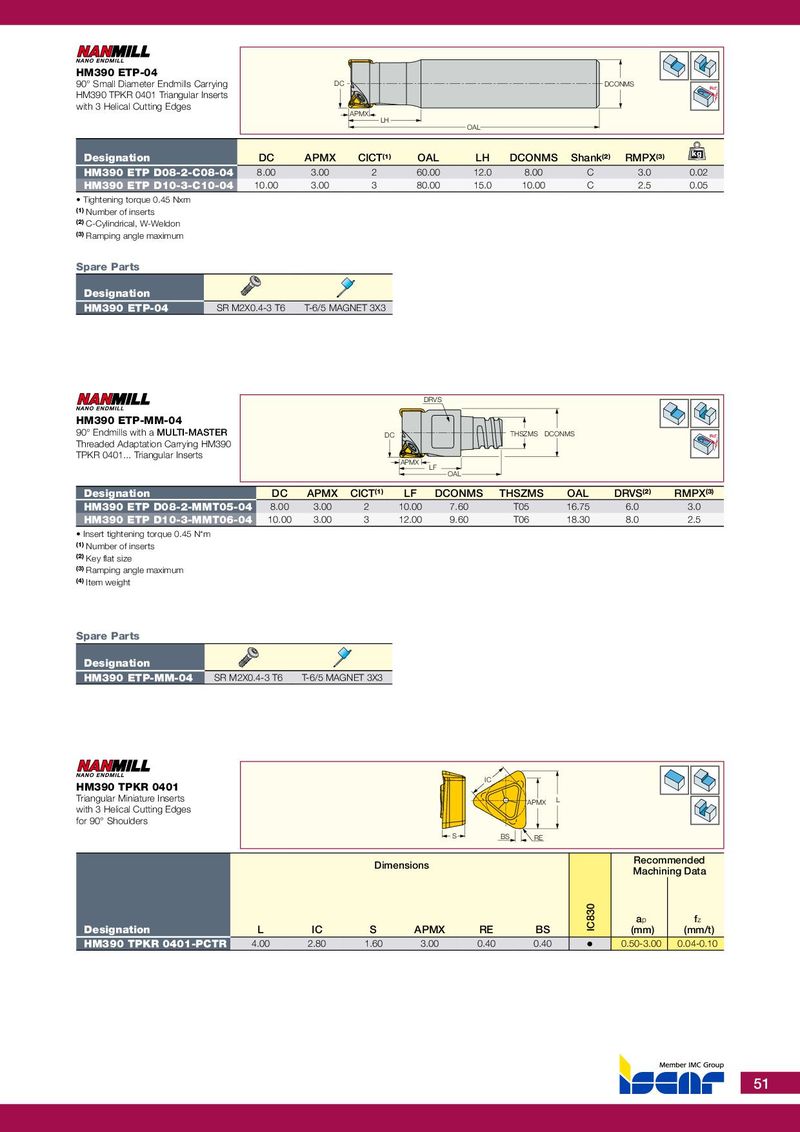

Каталог Iscar новые продукты 2018 - страница 51

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E HM390 ETP-04 90° Small Diameter Endmills Carrying DC DCONMS Rd° HM390 TPKR 0401 Triangular Inserts with 3 Helical Cutting Edges APMX LH OAL kg Designation DC APMX CICT (1) OAL LH DCONMS Shank (2) RMPX (3) HM390 ETP D08-2-C08-04 8.00 3.00 2 60.00 12.0 8.00 C 3.0 0.02 HM390 ETP D10-3-C10-04 10.00 3.00 3 80.00 15.0 10.00 C 2.5 0.05 • Tightening torque 0.45 Nxm (1) Number of inserts (2) C-Cylindrical, W-Weldon (3) Ramping angle maximum Spare Parts Designation HM390 ETP-04 SR M2X0.4-3 T6 T-6/5 MAGNET 3X3 DRVS HM390 ETP-MM-04 90° Endmills with a MULTI-MASTER DC THSZMS DCONMS Rd° Threaded Adaptation Carrying HM390 TPKR 0401... Triangular Inserts APMX LF OAL Designation DC APMX CICT (1) LF DCONMS THSZMS OAL DRVS (2) RMPX (3) HM390 ETP D08-2-MMT05-04 8.00 3.00 2 10.00 7.60 T05 16.75 6.0 3.0 HM390 ETP D10-3-MMT06-04 10.00 3.00 3 12.00 9.60 T06 18.30 8.0 2.5 • Insert tightening torque 0.45 N*m (1) Number of inserts (2) Key flat size (3) Ramping angle maximum (4) Item weight Spare Parts Designation HM390 ETP-MM-04 SR M2X0.4-3 T6 T-6/5 MAGNET 3X3 IC HM390 TPKR 0401 Triangular Miniature Inserts APMX L with 3 Helical Cutting Edges for 90° Shoulders S BS RE Recommended Dimensions Machining Data a p f z Designation L IC S APMX RE BS IC830 (mm) (mm/t) HM390 TPKR 0401-PCTR 4.00 2.80 1.60 3.00 0.40 0.40 • 0.50-3.00 0.04-0.10 51
