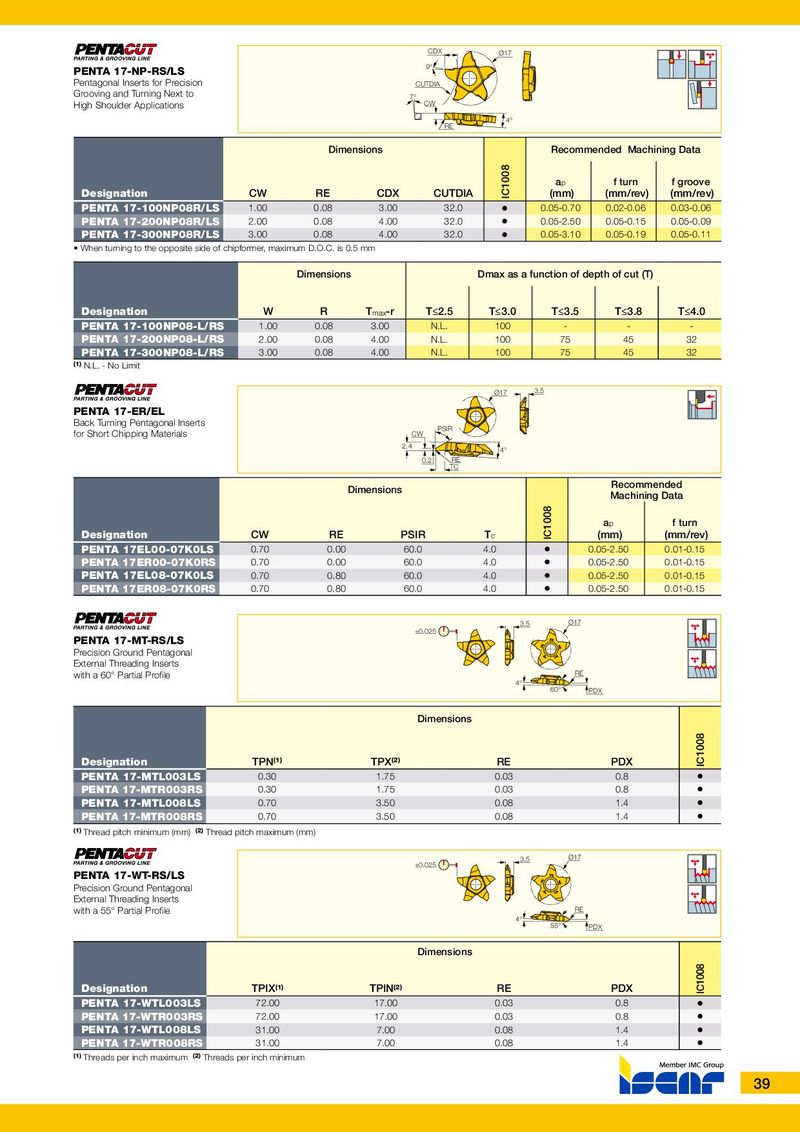

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E CDX Ø17 9° PENTA 17-NP-RS/LS Pentagonal Inserts for Precision CUTDIA Grooving and Turning Next to 7° High Shoulder Applications CW 4° RE Dimensions Recommended Machining Data a p f turn f groove Designation CW RE CDX CUTDIA IC1008 (mm) (mm/rev) (mm/rev) PENTA 17-100NP08R/LS 1.00 0.08 3.00 32.0 • 0.05-0.70 0.02-0.06 0.03-0.06 PENTA 17-200NP08R/LS 2.00 0.08 4.00 32.0 • 0.05-2.50 0.05-0.15 0.05-0.09 PENTA 17-300NP08R/LS 3.00 0.08 4.00 32.0 • 0.05-3.10 0.05-0.19 0.05-0.11 • When turning to the opposite side of chipformer, maximum D.O.C. is 0.5 mm Dimensions Dmax as a function of depth of cut (T) Designation W R T max -r T≤2.5 T≤3.0 T≤3.5 T≤3.8 T≤4.0 PENTA 17-100NP08-L/RS 1.00 0.08 3.00 N.L. 100 - - - PENTA 17-200NP08-L/RS 2.00 0.08 4.00 N.L. 100 75 45 32 PENTA 17-300NP08-L/RS 3.00 0.08 4.00 N.L. 100 75 45 32 (1) N.L. - No Limit Ø17 3.5 PENTA 17-ER/EL Back Turning Pentagonal Inserts PSIR for Short Chipping Materials CW 2.4 4° 0.2 RE TC Recommended Dimensions Machining Data a p f turn Designation CW RE PSIR T c IC1008 (mm) (mm/rev) PENTA 17EL00-07K0LS 0.70 0.00 60.0 4.0 • 0.05-2.50 0.01-0.15 PENTA 17ER00-07K0RS 0.70 0.00 60.0 4.0 • 0.05-2.50 0.01-0.15 PENTA 17EL08-07K0LS 0.70 0.80 60.0 4.0 • 0.05-2.50 0.01-0.15 PENTA 17ER08-07K0RS 0.70 0.80 60.0 4.0 • 0.05-2.50 0.01-0.15 3.5 Ø17 ±0.025 PENTA 17-MT-RS/LS Precision Ground Pentagonal External Threading Inserts with a 60° Partial Profile RE 4° 60° PDX Dimensions Designation TPN (1) TPX (2) RE PDX IC1008 PENTA 17-MTL003LS 0.30 1.75 0.03 0.8 • PENTA 17-MTR003RS 0.30 1.75 0.03 0.8 • PENTA 17-MTL008LS 0.70 3.50 0.08 1.4 • PENTA 17-MTR008RS 0.70 3.50 0.08 1.4 • (1) Thread pitch minimum (mm) (2) Thread pitch maximum (mm) 3.5 Ø17 ±0.025 PENTA 17-WT-RS/LS Precision Ground Pentagonal External Threading Inserts with a 55° Partial Profile RE 4° 55° PDX Dimensions Designation TPIX (1) TPIN (2) RE PDX IC1008 PENTA 17-WTL003LS 72.00 17.00 0.03 0.8 • PENTA 17-WTR003RS 72.00 17.00 0.03 0.8 • PENTA 17-WTL008LS 31.00 7.00 0.08 1.4 • PENTA 17-WTR008RS 31.00 7.00 0.08 1.4 • (1) Threads per inch maximum (2) Threads per inch minimum 39
