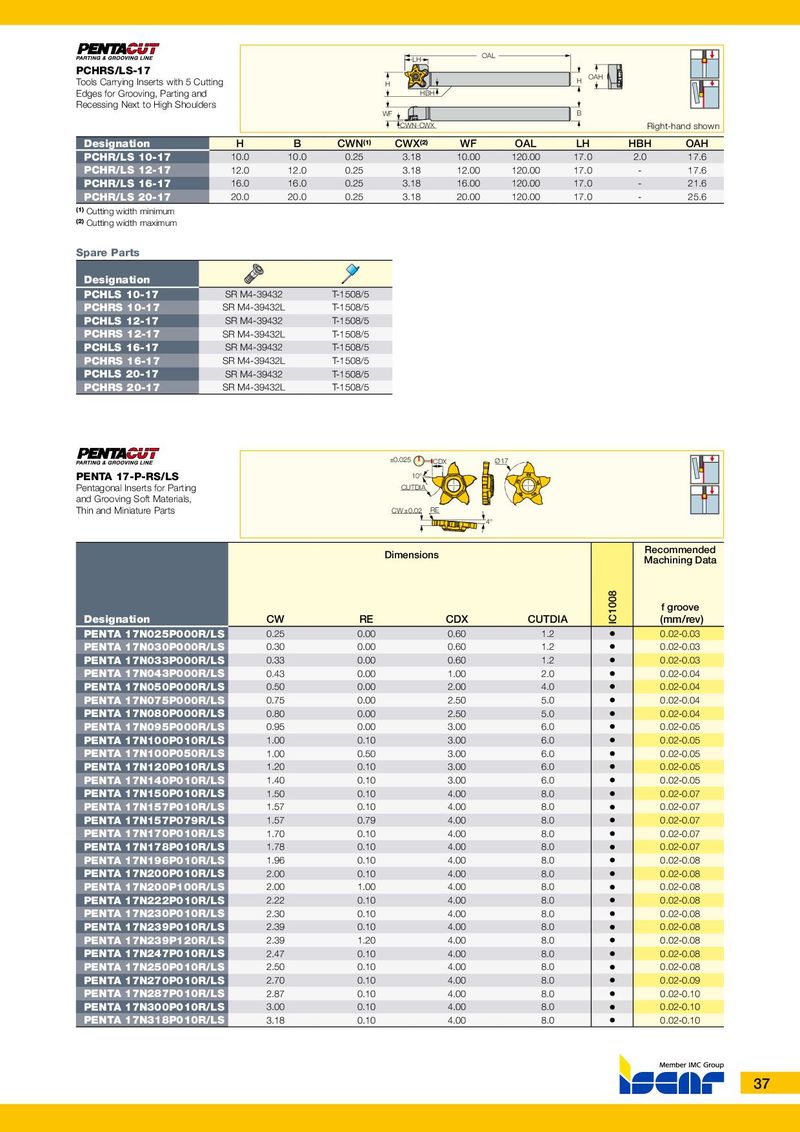

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E OAL LH PCHRS/LS-17 Tools Carrying Inserts with 5 Cutting H H OAH Edges for Grooving, Parting and HBH Recessing Next to High Shoulders WF B CWN-CWX Right-hand shown Designation H B CWN (1) CWX (2) WF OAL LH HBH OAH PCHR/LS 10-17 10.0 10.0 0.25 3.18 10.00 120.00 17.0 2.0 17.6 PCHR/LS 12-17 12.0 12.0 0.25 3.18 12.00 120.00 17.0 - 17.6 PCHR/LS 16-17 16.0 16.0 0.25 3.18 16.00 120.00 17.0 - 21.6 PCHR/LS 20-17 20.0 20.0 0.25 3.18 20.00 120.00 17.0 - 25.6 (1) Cutting width minimum (2) Cutting width maximum Spare Parts Designation PCHLS 10-17 SR M4-39432 T-1508/5 PCHRS 10-17 SR M4-39432L T-1508/5 PCHLS 12-17 SR M4-39432 T-1508/5 PCHRS 12-17 SR M4-39432L T-1508/5 PCHLS 16-17 SR M4-39432 T-1508/5 PCHRS 16-17 SR M4-39432L T-1508/5 PCHLS 20-17 SR M4-39432 T-1508/5 PCHRS 20-17 SR M4-39432L T-1508/5 ±0.025 CDX Ø17 PENTA 17-P-RS/LS 10° Pentagonal Inserts for Parting CUTDIA and Grooving Soft Materials, Thin and Miniature Parts CW±0.02 RE 4° Recommended Dimensions Machining Data f groove Designation CW RE CDX CUTDIA IC1008 (mm/rev) PENTA 17N025P000R/LS 0.25 0.00 0.60 1.2 • 0.02-0.03 PENTA 17N030P000R/LS 0.30 0.00 0.60 1.2 • 0.02-0.03 PENTA 17N033P000R/LS 0.33 0.00 0.60 1.2 • 0.02-0.03 PENTA 17N043P000R/LS 0.43 0.00 1.00 2.0 • 0.02-0.04 PENTA 17N050P000R/LS 0.50 0.00 2.00 4.0 • 0.02-0.04 PENTA 17N075P000R/LS 0.75 0.00 2.50 5.0 • 0.02-0.04 PENTA 17N080P000R/LS 0.80 0.00 2.50 5.0 • 0.02-0.04 PENTA 17N095P000R/LS 0.95 0.00 3.00 6.0 • 0.02-0.05 PENTA 17N100P010R/LS 1.00 0.10 3.00 6.0 • 0.02-0.05 PENTA 17N100P050R/LS 1.00 0.50 3.00 6.0 • 0.02-0.05 PENTA 17N120P010R/LS 1.20 0.10 3.00 6.0 • 0.02-0.05 PENTA 17N140P010R/LS 1.40 0.10 3.00 6.0 • 0.02-0.05 PENTA 17N150P010R/LS 1.50 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N157P010R/LS 1.57 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N157P079R/LS 1.57 0.79 4.00 8.0 • 0.02-0.07 PENTA 17N170P010R/LS 1.70 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N178P010R/LS 1.78 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N196P010R/LS 1.96 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N200P010R/LS 2.00 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N200P100R/LS 2.00 1.00 4.00 8.0 • 0.02-0.08 PENTA 17N222P010R/LS 2.22 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N230P010R/LS 2.30 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N239P010R/LS 2.39 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N239P120R/LS 2.39 1.20 4.00 8.0 • 0.02-0.08 PENTA 17N247P010R/LS 2.47 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N250P010R/LS 2.50 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N270P010R/LS 2.70 0.10 4.00 8.0 • 0.02-0.09 PENTA 17N287P010R/LS 2.87 0.10 4.00 8.0 • 0.02-0.10 PENTA 17N300P010R/LS 3.00 0.10 4.00 8.0 • 0.02-0.10 PENTA 17N318P010R/LS 3.18 0.10 4.00 8.0 • 0.02-0.10 37
