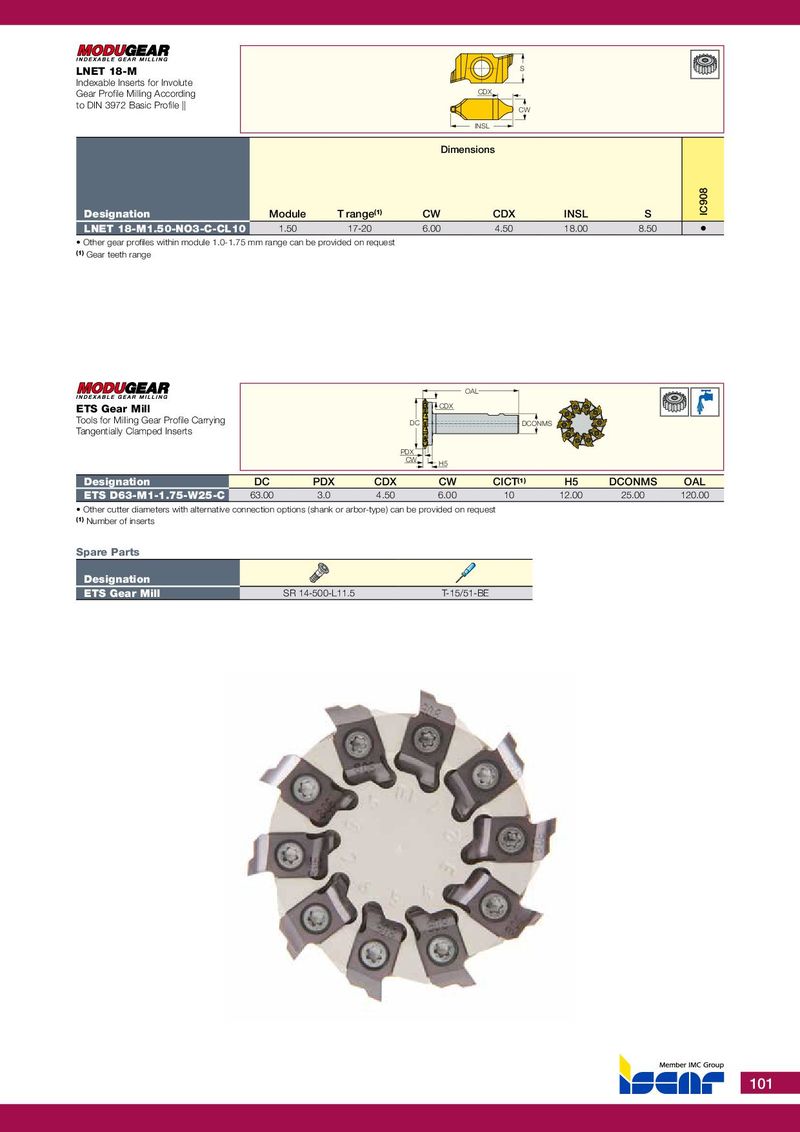

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E LNET 18-M S Indexable Inserts for Involute Gear Profile Milling According CDX to DIN 3972 Basic Profile || CW INSL Dimensions Designation Module T range (1) CW CDX INSL S IC908 LNET 18-M1.50-NO3-C-CL10 1.50 17-20 6.00 4.50 18.00 8.50 • • Other gear profiles within module 1.0-1.75 mm range can be provided on request (1) Gear teeth range OAL CDX ETS Gear Mill Tools for Milling Gear Profile Carrying DC DCONMS Tangentially Clamped Inserts PDX CW H5 Designation DC PDX CDX CW CICT (1) H5 DCONMS OAL ETS D63-M1-1.75-W25-C 63.00 3.0 4.50 6.00 10 12.00 25.00 120.00 • Other cutter diameters with alternative connection options (shank or arbor-type) can be provided on request (1) Number of inserts Spare Parts Designation ETS Gear Mill SR 14-500-L11.5 T-15/51-BE 101
