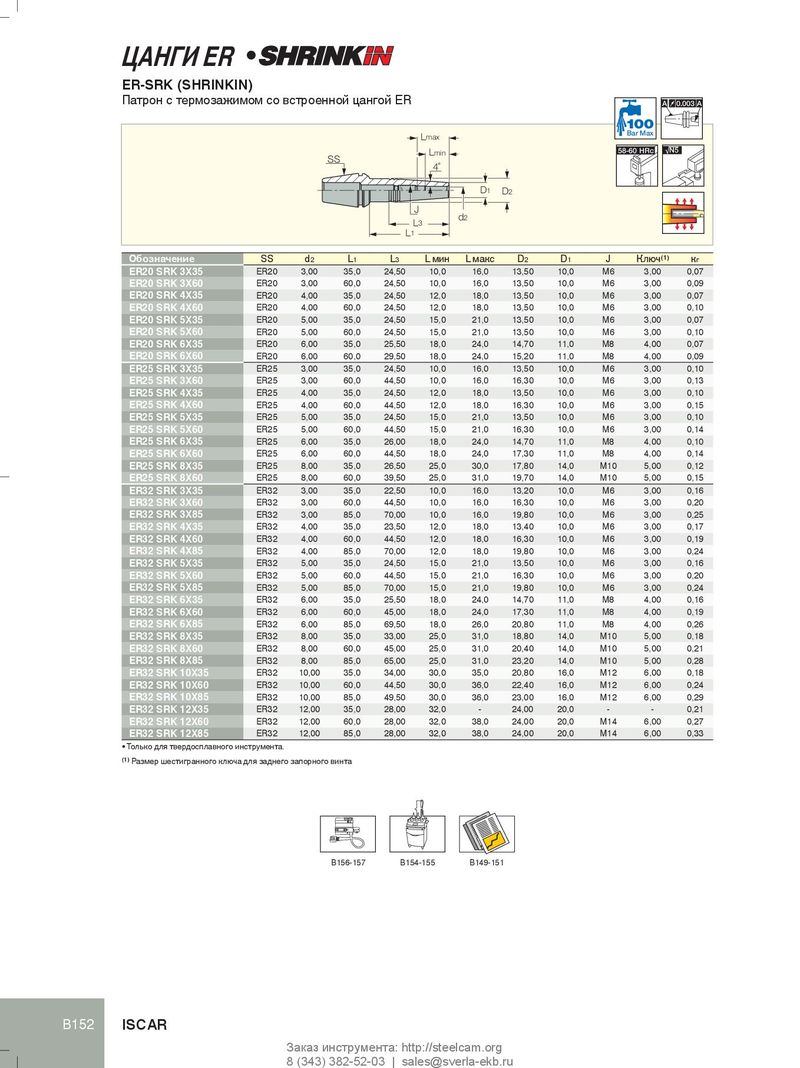

Каталог Iscar крепление инструмента - страница 173

l ЦАНГИ ER ER-SRK (SHRINKIN) Патрон с термозажимом со встроенной цангой ER A 0.003 A Bar Max L max L min 58-60 HRc √N5 SS 4˚ D 1 D 2 J d 2 L 3 L 1 Обозначение SS d 2 L 1 L 3 L мин L макс D 2 D 1 J Ключ (1) к г ER20 SRK 3X35 ER20 3,00 35,0 24,50 10,0 16,0 13,50 10,0 M6 3,00 0,07 ER20 SRK 3X60 ER20 3,00 60,0 24,50 10,0 16,0 13,50 10,0 M6 3,00 0,09 ER20 SRK 4X35 ER20 4,00 35,0 24,50 12,0 18,0 13,50 10,0 M6 3,00 0,07 ER20 SRK 4X60 ER20 4,00 60,0 24,50 12,0 18,0 13,50 10,0 M6 3,00 0,10 ER20 SRK 5X35 ER20 5,00 35,0 24,50 15,0 21,0 13,50 10,0 M6 3,00 0,07 ER20 SRK 5X60 ER20 5,00 60,0 24,50 15,0 21,0 13,50 10,0 M6 3,00 0,10 ER20 SRK 6X35 ER20 6,00 35,0 25,50 18,0 24,0 14,70 11,0 M8 4,00 0,07 ER20 SRK 6X60 ER20 6,00 60,0 29,50 18,0 24,0 15,20 11,0 M8 4,00 0,09 ER25 SRK 3X35 ER25 3,00 35,0 24,50 10,0 16,0 13,50 10,0 M6 3,00 0,10 ER25 SRK 3X60 ER25 3,00 60,0 44,50 10,0 16,0 16,30 10,0 M6 3,00 0,13 ER25 SRK 4X35 ER25 4,00 35,0 24,50 12,0 18,0 13,50 10,0 M6 3,00 0,10 ER25 SRK 4X60 ER25 4,00 60,0 44,50 12,0 18,0 16,30 10,0 M6 3,00 0,15 ER25 SRK 5X35 ER25 5,00 35,0 24,50 15,0 21,0 13,50 10,0 M6 3,00 0,10 ER25 SRK 5X60 ER25 5,00 60,0 44,50 15,0 21,0 16,30 10,0 M6 3,00 0,14 ER25 SRK 6X35 ER25 6,00 35,0 26,00 18,0 24,0 14,70 11,0 M8 4,00 0,10 ER25 SRK 6X60 ER25 6,00 60,0 44,50 18,0 24,0 17,30 11,0 M8 4,00 0,14 ER25 SRK 8X35 ER25 8,00 35,0 26,50 25,0 30,0 17,80 14,0 M10 5,00 0,12 ER25 SRK 8X60 ER25 8,00 60,0 39,50 25,0 31,0 19,70 14,0 M10 5,00 0,15 ER32 SRK 3X35 ER32 3,00 35,0 22,50 10,0 16,0 13,20 10,0 M6 3,00 0,16 ER32 SRK 3X60 ER32 3,00 60,0 44,50 10,0 16,0 16,30 10,0 M6 3,00 0,20 ER32 SRK 3X85 ER32 3,00 85,0 70,00 10,0 16,0 19,80 10,0 M6 3,00 0,25 ER32 SRK 4X35 ER32 4,00 35,0 23,50 12,0 18,0 13,40 10,0 M6 3,00 0,17 ER32 SRK 4X60 ER32 4,00 60,0 44,50 12,0 18,0 16,30 10,0 M6 3,00 0,19 ER32 SRK 4X85 ER32 4,00 85,0 70,00 12,0 18,0 19,80 10,0 M6 3,00 0,24 ER32 SRK 5X35 ER32 5,00 35,0 24,50 15,0 21,0 13,50 10,0 M6 3,00 0,16 ER32 SRK 5X60 ER32 5,00 60,0 44,50 15,0 21,0 16,30 10,0 M6 3,00 0,20 ER32 SRK 5X85 ER32 5,00 85,0 70,00 15,0 21,0 19,80 10,0 M6 3,00 0,24 ER32 SRK 6X35 ER32 6,00 35,0 25,50 18,0 24,0 14,70 11,0 M8 4,00 0,16 ER32 SRK 6X60 ER32 6,00 60,0 45,00 18,0 24,0 17,30 11,0 M8 4,00 0,19 ER32 SRK 6X85 ER32 6,00 85,0 69,50 18,0 26,0 20,80 11,0 M8 4,00 0,26 ER32 SRK 8X35 ER32 8,00 35,0 33,00 25,0 31,0 18,80 14,0 M10 5,00 0,18 ER32 SRK 8X60 ER32 8,00 60,0 45,00 25,0 31,0 20,40 14,0 M10 5,00 0,21 ER32 SRK 8X85 ER32 8,00 85,0 65,00 25,0 31,0 23,20 14,0 M10 5,00 0,28 ER32 SRK 10X35 ER32 10,00 35,0 34,00 30,0 35,0 20,80 16,0 M12 6,00 0,18 ER32 SRK 10X60 ER32 10,00 60,0 44,50 30,0 36,0 22,40 16,0 M12 6,00 0,24 ER32 SRK 10X85 ER32 10,00 85,0 49,50 30,0 36,0 23,00 16,0 M12 6,00 0,29 ER32 SRK 12X35 ER32 12,00 35,0 28,00 32,0 - 24,00 20,0 - - 0,21 ER32 SRK 12X60 ER32 12,00 60,0 28,00 32,0 38,0 24,00 20,0 M14 6,00 0,27 ER32 SRK 12X85 ER32 12,00 85,0 28,00 32,0 38,0 24,00 20,0 M14 6,00 0,33 • Только для твердосплавного инструмента. (1) Размер шестигранного ключа для заднего запорного винта B156-157 B154-155 B149-151 B152 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
