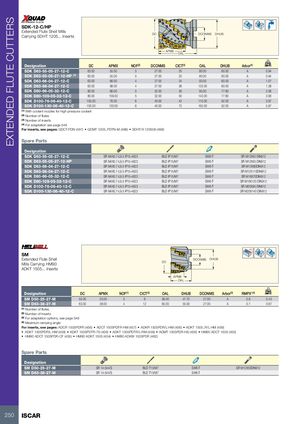

EXTENDED FLUTE CUTTERS SDK-12-C/HP Extended Flute Shell Mills Carrying SDHT 1205... Inserts DC DCONMS DHUB APMX OAL Designation DC APMX NOF(2) DCONMS CICT(3) OAL DHUB Arbor(4) kg SDK D63-55-05-27-12-C 63.00 55.00 5 27.00 25 80.00 60.00 A 0.94 SDK D63-55-05-27-12-HP (1) 63.00 55.00 5 27.00 25 80.00 60.00 A 0.94 SDK D63-66-04-27-12-C 63.00 66.00 4 27.00 24 93.00 60.00 A 1.07 SDK D63-98-04-27-12-C 63.00 98.00 4 27.00 36 125.00 60.00 A 1.38 SDK D80-66-05-32-12-C 80.00 66.00 5 32.00 30 95.00 77.60 A 2.06 SDK D80-109-05-32-12-C 80.00 109.00 5 32.00 50 143.00 77.60 A 3.06 SDK D100-76-06-40-12-C 100.00 76.00 6 40.00 42 110.00 92.00 A 3.97 SDK D100-130-06-40-12-C 100.00 130.00 6 40.00 72 165.00 92.00 A 5.87 (1) With coolant nozzles for high pressure coolant (2) Number of flutes (3) Number of inserts (4) For adaptation see page 548 For inserts, see pages: QDCT-PDN (497) • QDMT 1205..PDTN-M (498) • SDHT/X 120508 (498) Spare Parts Designation SDK D63-55-05-27-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M12X65 DIN912 SDK D63-55-05-27-12-HP SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M12X65 DIN912 SDK D63-66-04-27-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M12X80DIN912 SDK D63-98-04-27-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M12X110DIN912 SDK D80-66-05-32-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M16X70DIN912 SDK D80-109-05-32-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M16X120 DIN912 SDK D100-76-06-40-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M20X85 DIN912 SDK D100-130-06-40-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M20X140 DIN912 Rd° SM Extended Flute Shell DCONMS DHUB Mills Carrying HM90 DC ADKT 1505... Inserts APMX OAL Designation DC APMX NOF(1) CICT(2) OAL DHUB DCONMS Arbor(3) RMPX°(4) kg SM D50-25-27-M 50.00 25.00 3 6 56.00 47.70 27.00 A 0.9 0.43 SM D63-38-27-M 63.00 38.00 4 12 60.00 55.00 27.00 A 0.7 0.67 (1) Number of flutes (2) Number of inserts (3) For adaptation options, see page 548 (4) Maximum ramping angle For inserts, see pages: ADCR 1505PDFR (456) • ADCT 1505PDFR-HM (457) • ADKR 1505PDR/L-HM (456) • ADKT 1505..R/L-HM (459) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459) • ADKT 1505PDTR/L-RM (458) • ADMT 1505PDR-HS (458) • HM90 ADCT 1505 (455) • HM90 ADCT 1505PDR-CF (455) • HM90 ADKT 1505 (454) • HM90 ADKW 1505PDR (462) Spare Parts Designation SM D50-25-27-M SR 14-544/S BLD T15/M7 SW6-T SR M12X50DIN912 SM D63-38-27-M SR 14-544/S BLD T15/M7 SW6-T 250 ISCAR
