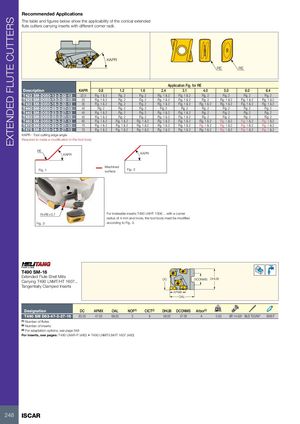

EXTENDED FLUTE CUTTERS Recommended Applications The table and figures below show the applicability of the conical extended flute cutters carrying inserts with different corner radii. KAPR RE RE Application Fig. for RE Description KAPR 0.8 1.2 1.6 2.4 3.1 4.0 5.0 6.0 6.4 T422 SM-D050-12-3-32-13 22.5 Fig. 1 & 2 Fig. 2 Fig. 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 2 Fig. 2 Fig. 2 Fig. 2 T425 SM-D050-13-3-32-13 25 Fig. 1 & 2 Fig. 2 Fig. 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 T430 SM-D050-16-3-32-13 30 Fig. 1 & 2 Fig. 2 Fig. 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 T440 SM-D050-28-3-27-13 40 Fig. 2 Fig. 2 Fig. 2 Fig. 2 Fig. 2 Fig. 2 Fig. 2 Fig. 2 Fig. 2 T445 SM-D050-23-3-27-13 45 Fig. 1 & 2 Fig. 2 Fig. 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 2 Fig. 2 Fig. 2 Fig. 2 T450 SM-D050-25-3-27-13 50 Fig. 1 & 2 Fig. 2 Fig. 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 2 Fig. 2 Fig. 2 Fig. 2 T460 SM-D050-30-3-27-13 60 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 T470 SM-D050-33-3-27-13 70 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 T475 SM-D050-34-3-27-13 75 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 Fig. 1 & 2 KAPR - Tool cutting edge angle Required to make a modification in the tool body RE KAPR KAPR Machined Fig. 1 surface Fig. 2 R=RE+0.7 For indexable inserts T490 LNHT 1306… with a corner radius of 4 mm and more, the tool body mast be modified Fig. 3 according to Fig. 3. T490 SM-16 Extended Flute Shell MillsCarrying T490 LNMT/HT 1607... DC DCONMS DHUB Tangentially Clamped Inserts APMX OAL Designation DC APMX OAL NOF(1) CICT(2) DHUB DCONMS Arbor(3) kg T490 SM D63-47-3-27-16 63.00 47.00 68.00 3 9 58.00 27.00 A 0.93 SR 14-591 BLD T20/M7 SW6-T (1) Number of flutes (2) Number of inserts (3) For adaptation options, see page 548 For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 1607 (480) 248 ISCAR
