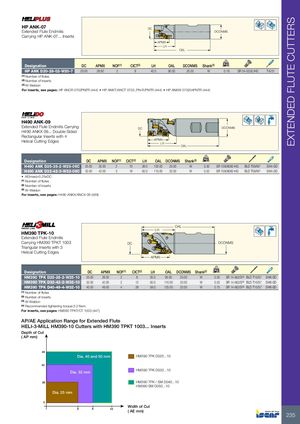

EXTENDED FLUTE CUTTERS HP ANK-07 DC Extended Flute Endmills DCONMS Carrying HP ANK-07... Inserts APMX LH OAL Designation DC APMX NOF(1) CICT(2) LH OAL DCONMS Shank(3) kg HP ANK D20-28-02-W20-7 20.00 28.60 2 8 40.0 90.00 20.00 W 0.18 SR 34-533/L/HG T-6/51 (1) Number of flutes (2) Number of inserts (3) W-Weldon For inserts, see pages: HP ANCR 0702PNFR (444) • HP ANKT/ANCT 0702..PN-R/PNTR (444) • HP ANKW 070204PNTR (444) H490 ANK-09 Extended Flute Endmills Carrying DC DCONMS H490 ANKX 09... Double-Sided Rectangular Inserts with 4 Helical Cutting Edges APMXLH OAL Designation DC APMX NOF(1) CICT(2) LH OAL DCONMS Shank(3) kg H490 ANK D25-35-2-W25-09C 25.00 35.00 2 10 38.0 100.00 25.00 W 0.30 SR 10508082-HG BLD T08/M7 SW4-SD H490 ANK D32-42-3-W32-09C 32.00 42.00 3 18 50.0 115.00 32.00 W 0.52 SR 10508082-HG BLD T08/M7 SW4-SD • AE(max)=0.25xDC (1) Number of flutes (2) Number of inserts (3) W-Weldon For inserts, see pages: H490 ANKX/ANCX-09 (469) OAL LH HM390 TPK-10 Extended Flute Endmills Carrying HM390 TPKT 1003 DC DCONMS Triangular Inserts with 3 Helical Cutting Edges APMX Designation DC APMX NOF(1) CICT(2) LH OAL DCONMS Shank(3) kg HM390 TPK D25-28-2-W25-10 25.00 28.00 2 8 35.0 95.00 25.00 W 0.30 SR 14-562/S(a) BLD T10/S7 SW6-SD HM390 TPK D32-42-2-W32-10 32.00 42.00 2 12 50.0 110.00 32.00 W 0.53 SR 14-562/S(a) BLD T10/S7 SW6-SD HM390 TPK D40-49-4-W32-10 40.00 49.00 4 28 59.0 125.00 32.00 W 0.75 SR 14-562/S(a) BLD T10/S7 SW6-SD (1) Number of flutes (2) Number of inserts (3) W-Weldon (a) Recommended tightening torque:3.2 Nxm For inserts, see pages: HM390 TPKT/CT 1003 (447) AP/AE Application Range for Extended Flute HELI-3-MILL HM390-10 Cutters with HM390 TPKT 1003… Inserts Depth of Cut ( AP mm) 50 49 Dia. 40 and 50 mm HM390 TPK D025...10 42 Dia. 32 mm HM390 TPK D032...10 28 HM390 TPK / SM D040...10 HM390 SM D050...10 Dia. 25 mm 5 Width of Cut 6 8 10 ( AE mm) 235
